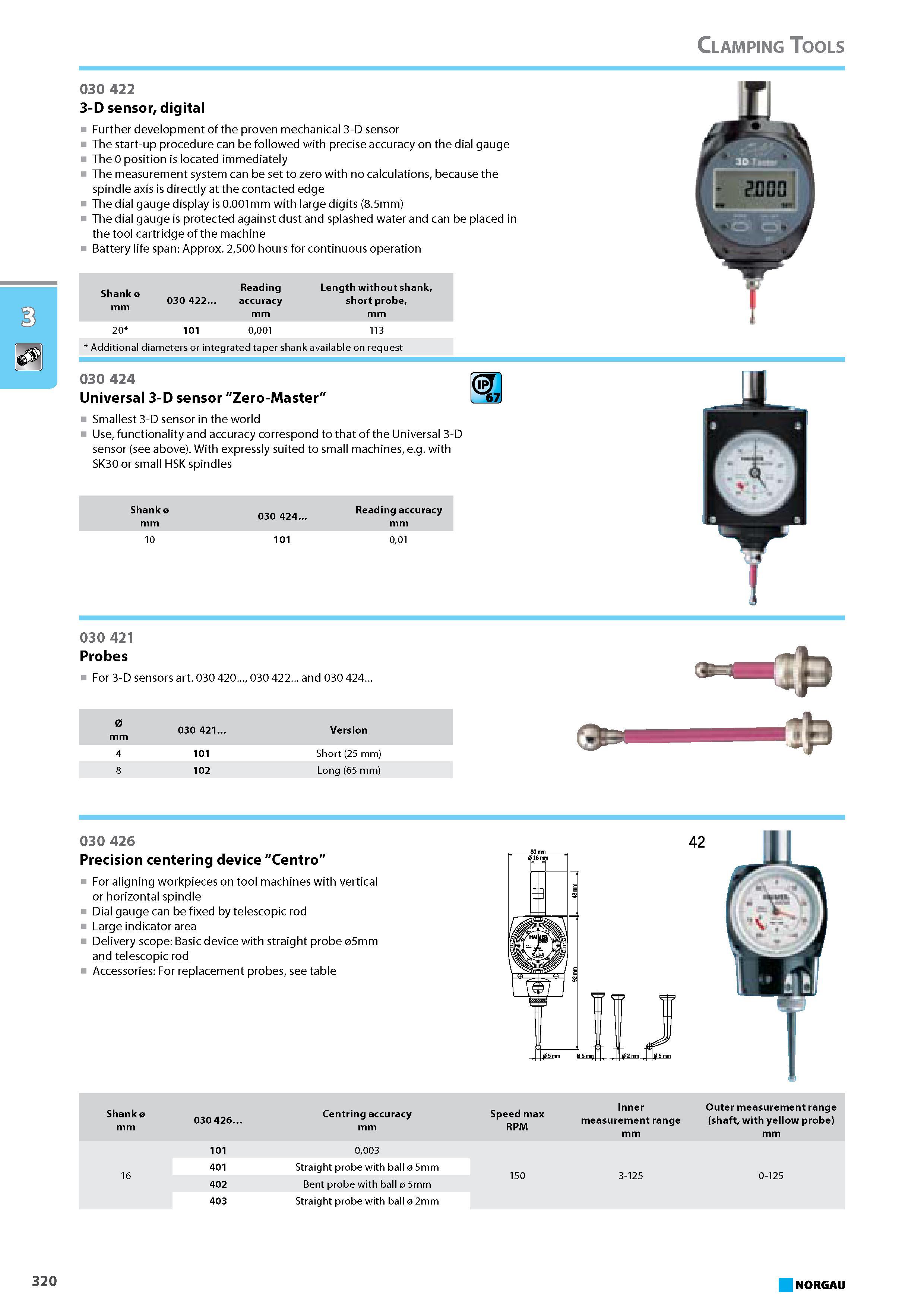

3-D sensor digital Further development of the proven mechanical 3-D sensor The start-up procedure can be followed with precise accuracy on the dial gauge The 0 position is located immediately The measurement system can be set to zero with no calculations because the spindle axis is directly at the contacted edge The dial gauge display is 0.001mm with large digits (8.5mm) The dial gauge is protected against dust and splashed water and can be placed in the tool cartridge of the machine Battery life span Approx. 2500 hours for continuous operation Shank 0 mm 030 422 Reading accuracy mm Length without shank short probe mm 20 101 0001 113 Additional diameters or integrated taper shank available on request 030 424 Universal 3-D sensor "Zero-Master" Smallest 3-D sensor in the world Use functionality and accuracy correspond to that of the Universal 3-D sensor (see above). With expressly suited to small machines e.g. with SK30 or small HSK spindles Shank 0 030 424 Reading accuracy mm 001 030 421 Probes For 3-D sensors art. 030 420 030 422. and 030 424 0 030 421 Version mm 4 101 Short (25 mm) 8 102 Long (65 mm) 030 426 Precision centering device "Centro" For aligning workpieces on tool machines with vertical or horizontal spindle Dial gauge can be fixed by telescopic rod Large indicator area Delivery scope Basic device with straight probe 05mm and telescopic rod Accessories For replacement probes see table 42 -1 05mm J f2 Shank 0 mm 030 426. Centring accuracy mm Speed max RPM Inner measurement range mm Outer measurement range (shaft with yellow probe) mm 101 0003 16 401 Straight probe with ball 0 5mm 150 3-125 0-125 402 Bent probe with ball 0 5mm 403 Straight probe with ball 0 2mm 10 320 NORGAU Clamping Tools 030 422
