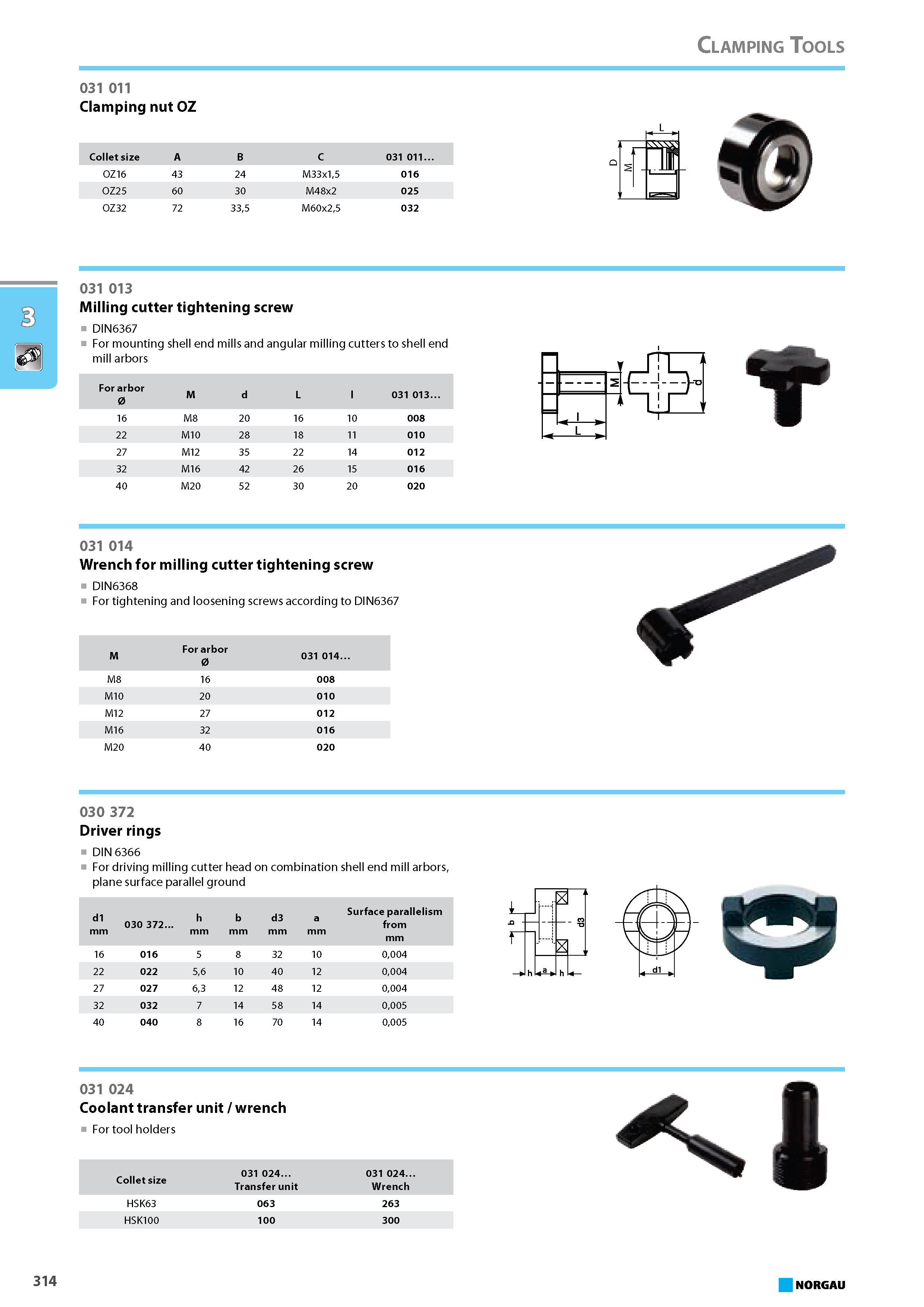

Milling cutter tightening screw DIN6367 For mounting shell end mills and angular milling cutters to shell end mill arbors For arbor 0 M d L 031 013. 16 M8 20 16 10 008

Milling cutter tightening screw DIN6367 For mounting shell end mills and angular milling cutters to shell end mill arbors For arbor 0 M d L 031 013. 16 M8 20 16 10 008 22 M10 28 18 11 010 27 M12 35 22 14 012 32 M16 42 26 15 016 40 M20 52 30 20 020 031 014 Wrench for milling cutter tightening screw T DIN6368 For tightening and loosening screws according to DIN6367 M20 40 020 030 372 Driver rings DIN 6366 For driving milling cutter head on combination shell end mill arbors plane surface parallel ground d1 mm 030 372 h mm b mm d3 mm a mm Surface parallelism from mm 16 016 5 8 32 10 0004 22 022 56 10 40 12 0004 27 027 63 12 48 12 0004 32 032 7 14 58 14 0005 40 040 8 16 70 14 0005 031 024 Coolant transfer unit wrench For tool holders Collet size 031 024. 031 024. Transfer unit Wrench HSK63 063 263 HSK100 100 300 L 72 032 314 NORGAU Clamping Tools 031 011 Clamping nut OZ OZ32 335 M60x25 Collet size A B C 031 011 OZ16 43 24 M33x15 016 OZ25 60 30 M48x2 025 Ti 031 013
