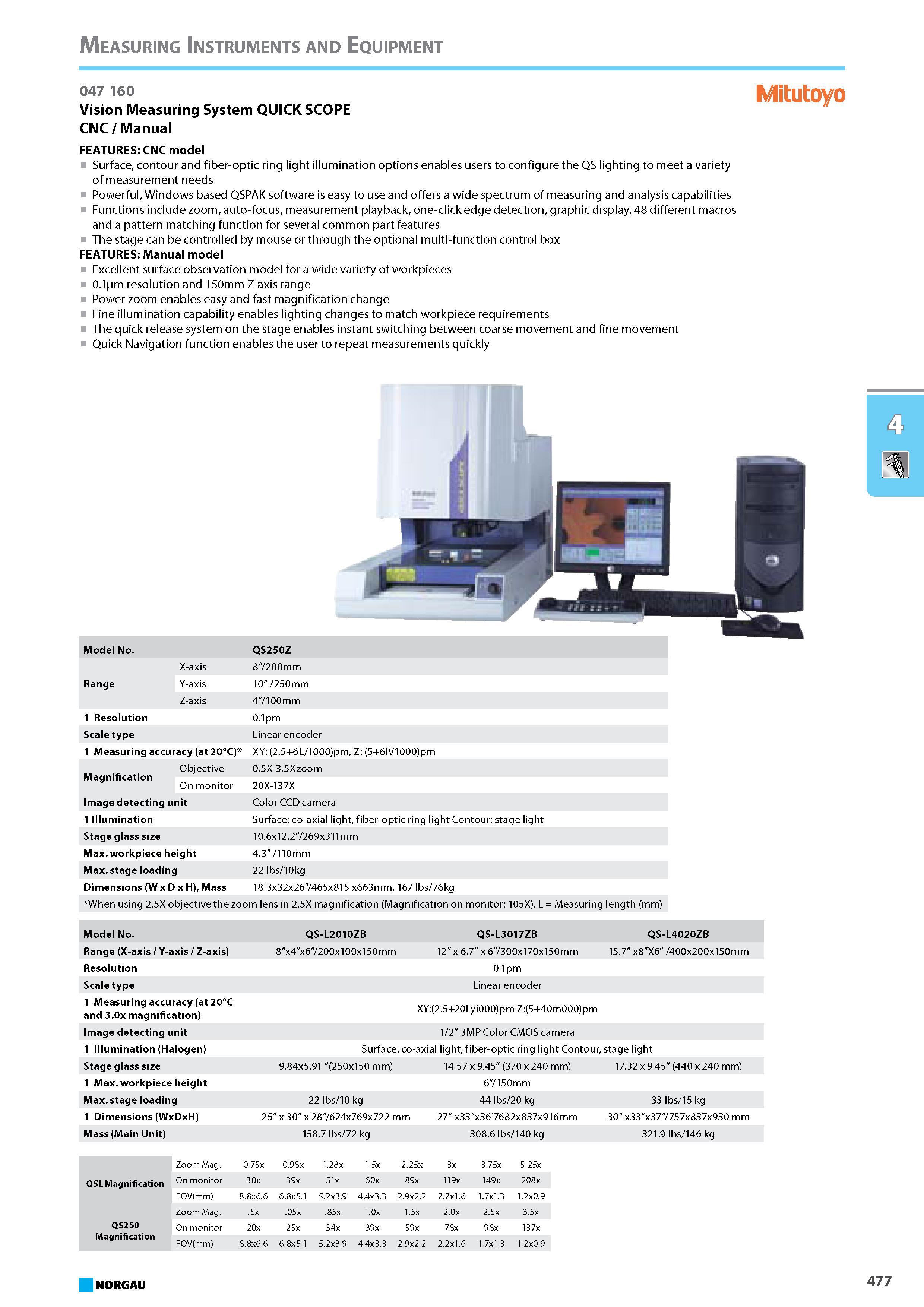

Measuring Instruments and Equipment Vision Measuring System QUICK SCOPE CNC Manual FEATURES CNC model Surface contour and fiber-optic ring light illumination options enables users to configure the QS lighting to meet a variety of measurement needs Powerful Windows based QSPAK software is easy to use and offers a wide spectrum of measuring and analysis capabilities Functions include zoom auto-focus measurement playback one-click edge detection graphic display 48 different macros and a pattern matching function for several common part features The stage can be controlled by mouse or through the optional multi-function control box FEATURES Manual model Excellent surface observation model for a wide variety of workpieces 0.1pm resolution and 150mm Z-axis range Power zoom enables easy and fast magnification change Fine illumination capability enables lighting changes to match workpiece requirements The quick release system on the stage enables instant switching between coarse movement and fine movement Quick Navigation function enables the user to repeat measurements quickly Model No. QS250Z X-axis 8" 200mm Range Y-axis 10" 250mm Z-axis 4" 100mm 1 Resolution 0.1pm Scale type Linear encoder 1 Measuring accuracy (at 20C) XY (2.5+6L 1000)pm Z (5+6IV1000)pm Magnification Objective 0.5X-3.5Xzoom On monitor 20X-137X Image detecting unit Color CCD camera 1 Illumination Surface co-axial light fiber-optic ring light Contour stage light Stage glass size 10.6x12.2" 269x311mm Max. workpiece height 4.3" 110mm Max. stage loading 22 lbs 10 kg Dimensions (W x D x H) Mass 18.3x32x26" 465x815 x663mm 167 lbs 76kg When using 2.5X objective the zoom lens in 2.5X magnification (Magnification on monitor 105X) L Measuring length (mm) Model No. QS-L2010ZB QS-L3017ZB QS-L4020ZB Range (X-axis Y-axis Z-axis) 8"x4"x6" 200x100x150mm 12" x 6.7" x 6" 300x170x150mm 15.7" x8"X6" 400x200x150mm Resolution 0.1pm Scale type Linear encoder 1 Measuring accuracy (at 20C and 3.0x magnification) XY (2.5+20Lyi000)pm Z (5+40m000)pm Image detecting unit 1/2" 3MP Color CMOS camera 1 Illumination (Halogen) Surface co-axial light fiber-optic ring light Contour stage light Stage glass size 9.84x5.91 (250x150 mm) 14.57 x 9.45" (370 x 240 mm) 17.32 x 9.45" (440 x 240 mm) 1 Max. workpiece height 6" 150mm Max. stage loading 22 lbs 10 kg 44 lbs 20 kg 33 lbs 15 kg 1 Dimensions (WxDxH) 25" x 30" x 28" 624x769x722 mm 27" x33"x36'7682x837x916mm 30" x33"x37" 757x837x930 mm Mass (Main Unit) 158.7 lbs 72 kg 308.6 lbs 140 kg 321.9 lbs 146 kg Zoom Mag. 0.75x 0.98x 1.28x 1.5x 2.25x 3x 3.75x 5.25x QSL Magnification On monitor 30x 39x 51x 60x 89x 119x 149x 208x FOV(mm) 8.8x6.6 6.8x5.1 5.2x3.9 4.4x3.3 2.9x2.2 2.2x1.6 1.7x1.3 1.2x0.9 Zoom Mag. .5x .05x .85x 1.0x 1.5x 2.0x 2.5x 3.5x QS250 Magnification On monitor 20x 25x 34x 39x 59x 78x 98x 137x FOV(mm) 8.8x6.6 6.8x5.1 5.2x3.9 4.4x3.3 2.9x2.2 2.2x1.6 1.7x1.3 1.2x0.9 NORGAU 477
