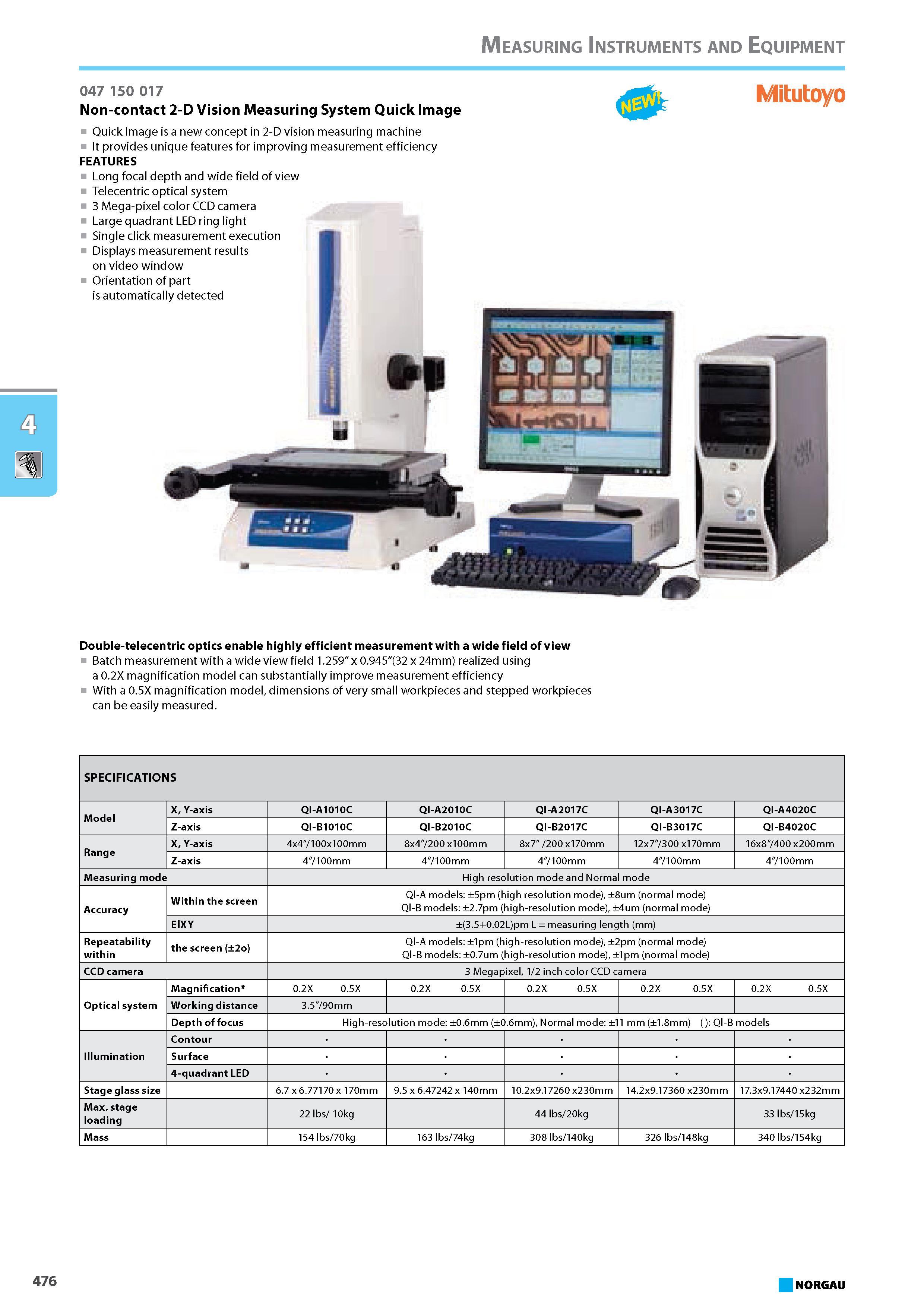

Double-telecentric optics enable highly efficient measurement with a wide field of view Batch measurement with a wide view field 1.259 x 0.945(32 x 24mm) realized using a 0.2X magnification model can substantially improve measurement efficiency With a 0.5X magnification model dimensions of very small workpieces and stepped workpieces can be easily measured. SPECIFICATIONS Model X Y-axis QI-A1010C QI-A2010C QI-A2017C QI-A3017C QI-A4020C Z-axis QI-B1010C QI-B2010C QI-B2017C QI-B3017C QI-B4020C Range X Y-axis 4x47100x100mm 8x47200 x100mm 8x7 200 x170mm 12x77300 x170mm 16x87400 x200mm Z-axis 47100mm 47100mm 47100mm 47100mm 47100mm Measuring mode High resolution mode and Normal mode Accuracy Within the screen Ql-A models 5pm (high resolution mode) 8um (normal mode) Ql-B models 2.7pm (high-resolution mode) 4um (normal mode) ElXY (3.5+0.02L)pm L measuring length (mm) Repeatability within the screen (2o) Ql-A models 1pm (high-resolution mode) 2pm (normal mode) Ql-B models 0.7um (high-resolution mode) 1pm (normal mode) CCD camera 3 Megapixel 1 2 inch color CCD camera Optical system Magnification 0.2X 0.5X 0.2X 0.5X 0.2X 0.5X 0.2X 0.5X 0.2X 0.5X Working distance 3.5790mm Depth of focus High-resolution mode 0.6mm (0.6mm) Normal mode 11 mm (1.8mm) ( ) Ql-B models Illumination Contour Surface 4-quadrant LED Stage glass size 6.7 x 6.77170 x 170mm 9.5 x 6.47242 x 140mm 10.2x9.17260 x230mm 14.2x9.17360 x230mm 17.3x9.17440 x232mm Max. stage loading 22 lbs 10kg 44 lbs 20 kg 33 lbs 15 kg Mass 154 lbs 70kg 163 lbs 74kg 308 lbs 140kg 326 lbs 14 8 kg 340 lbs 154kg NORGAU 047 150 017 Non-contact 2-D Vision Measuring System Quick Image Quick Image is a new concept in 2-D vision measuring machine It provides unique features for improving measurement efficiency FEATURES Long focal depth and wide field of view Telecentric optical system 3 Mega-pixel color CCD camera Large quadrant LED ring light Single click measurement execution Displays measurement results on video window Orientation of part is automatically detected Measuring Instruments and Equipment 476
