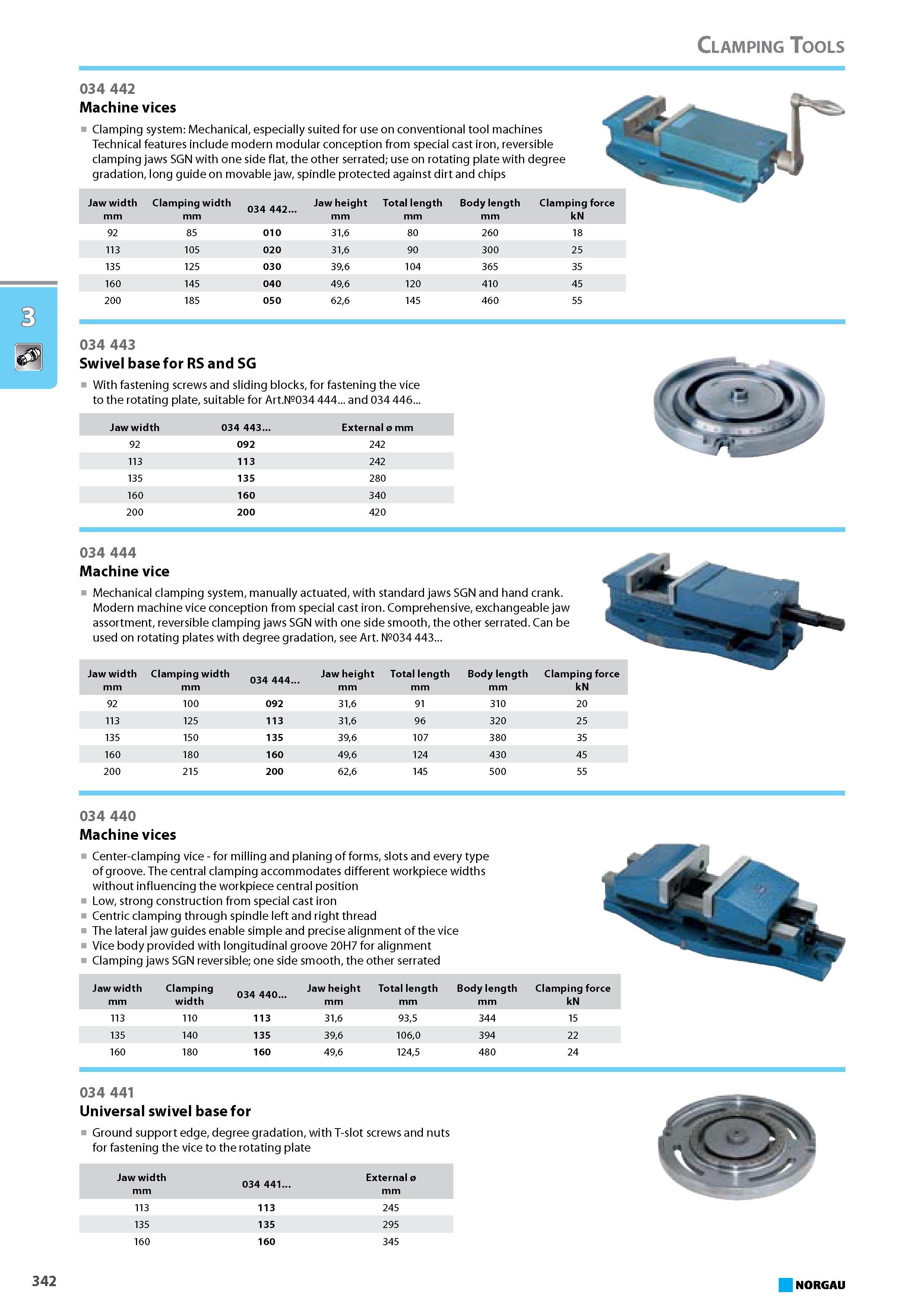

Machine vices Clamping system Mechanical especially suited for use on conventional tool machines Technical features include modern modular conception from special cast iron reversible clamping jaws SGN with one side flat the other serrated use on rotating plate with degree gradation long guide on movable jaw spindle protected against dirt and chips 626 034 443 Swivel base for RS and SG With fastening screws and sliding blocks for fastening the vice to the rotating plate suitable for Art.N034 444 and 034 446 034 444 Machine vice Mechanical clamping system manually actuated with standard jaws SGN and hand crank. Modern machine vice conception from special cast iron. Comprehensive exchangeable jaw assortment reversible clamping jaws SGN with one side smooth the other serrated. Can be used on rotating plates with degree gradation see Art. IN034 443 626 034 440 Machine vices Center-clamping vice - for milling and planing of forms slots and every type of groove. The central clamping accommodates different workpiece widths without influencing the workpiece central position Low strong construction from special cast iron Centric clamping through spindle left and right thread The lateral jaw guides enable simple and precise alignment of the vice Vice body provided with longitudinal groove 20H7 for alignment Clamping jaws SGN reversible one side smooth the other serrated Jaw width mm Clamping width 034 440 Jaw height mm Total length mm Body length mm Clamping force kN 113 110 113 316 935 344 15 135 140 135 396 1060 394 22 160 180 160 496 1245 480 24 034 441 Universal swivel base for Ground support edge degree gradation with T-slot screws and nuts for fastening the vice to the rotating plate Jaw width mm 034 441 External 0 mm 113 113 245 135 135 295 160 160 345 050 55 200 200 55 342 NORGAU Clamping Tools 034 442
