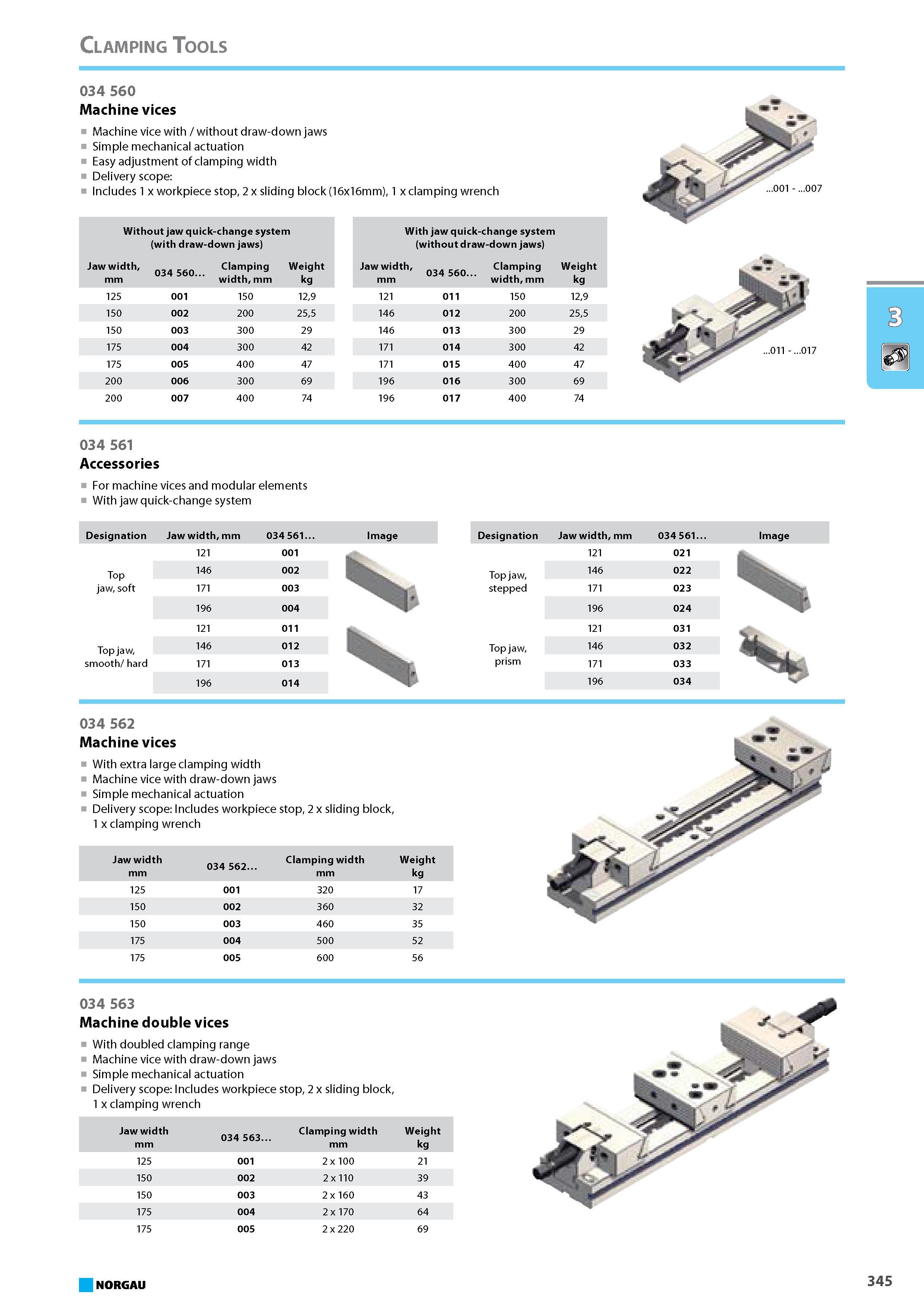

Machine vice with without draw-down jaws Simple mechanical actuation Easy adjustment of clamping width Delivery scope Includes 1 x workpiece stop 2 x sliding block (16

Machine vice with without draw-down jaws Simple mechanical actuation Easy adjustment of clamping width Delivery scope Includes 1 x workpiece stop 2 x sliding block (16x16mm) 1 x clamping wrench Without jaw quick-change system (with draw-down jaws) Jaw width mm 034 560. Clamping width mm Weight kg 125 001 150 129 150 002 200 255 150 003 300 29 175 004 300 42 175 005 400 47 200 006 300 69 200 007 400 74 With jaw quick-change system (without draw-down jaws) Jaw width 034 560. mm Clamping width mm Weight kg 121 011 150 129 146 012 200 255 146 013 300 29 171 014 300 42 171 015 400 47 196 016 300 69 196 017 400 74 .001 - 007 034 561 Accessories For machine vices and modular elements With jaw quick-change system Designation Top jaw soft Top jaw smooth hard Jaw width mm 034 561. 121 001 146 002 171 003 196 004 121 011 146 012 171 013 196 014 Image Designation Jaw width mm 034 561. 121 021 Top jaw stepped 146 022 171 023 196 024 121 031 Top jaw 146 032 prism 171 033 196 034 Image 034 562 Machine vices With extra large clamping width Machine vice with draw-down jaws Simple mechanical actuation Delivery scope Includes workpiece stop 2 x sliding block 1 x clamping wrench Jaw width 034 562. mm Clamping width mm Weight kg 125 001 320 17 150 002 360 32 150 003 460 35 175 004 500 52 175 005 600 56 034 563 Machine double vices With doubled clamping range Machine vice with draw-down jaws Simple mechanical actuation Delivery scope Includes workpiece stop 2 x sliding block 1 x clamping wrench Jaw width mm 034 563. Clamping width mm Weight kg 125 001 2 x 100 21 150 002 2 x 110 39 150 003 2 x 160 43 175 004 2 x 170 64 175 005 2 x 220 69 NORGAU 345 Clamping Tools 034 560 Machine vices
