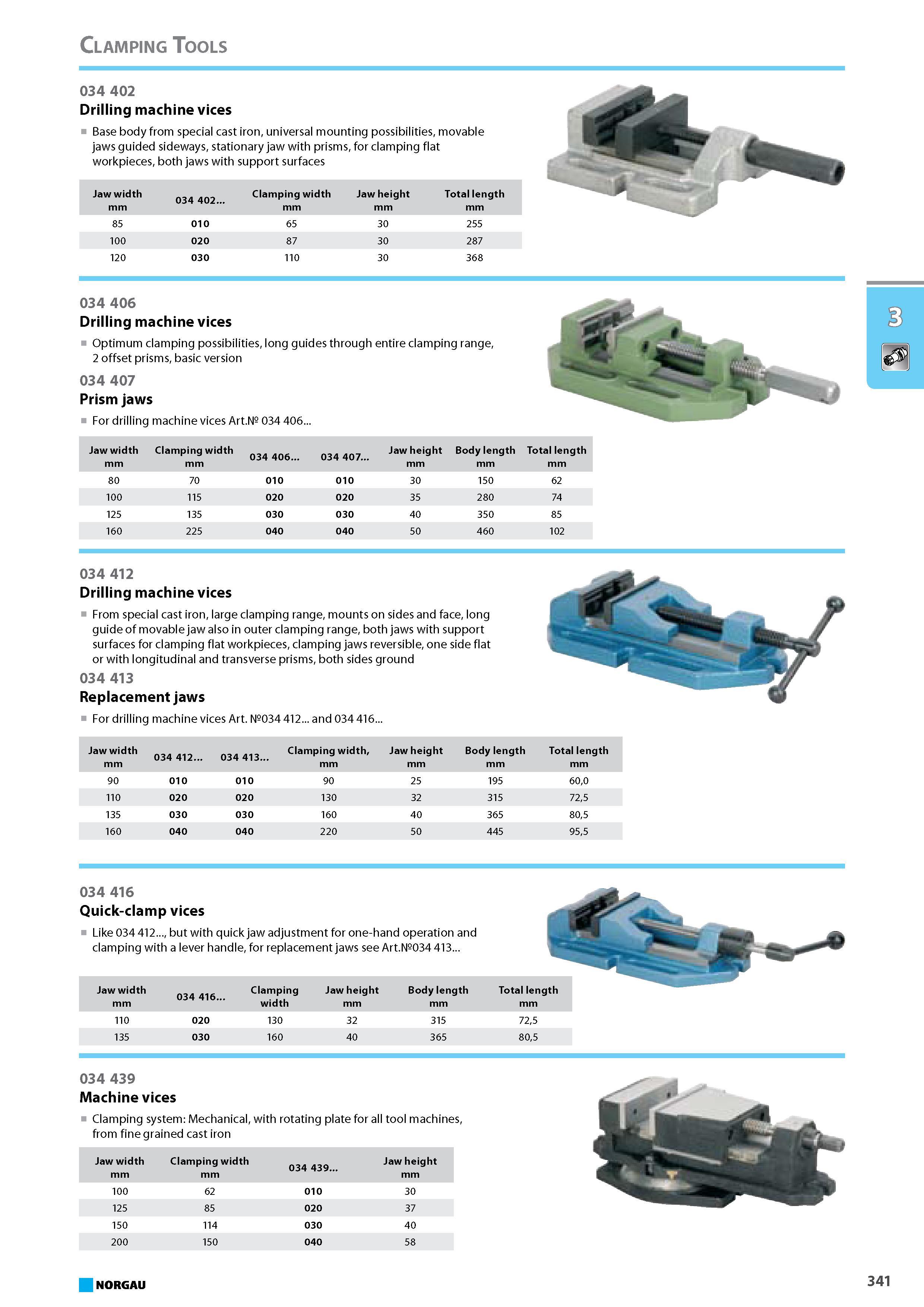

Drilling machine vices Base body from special cast iron universal mounting possibilities movable jaws guided sideways stationary jaw with prisms for clamping flat work

Drilling machine vices Base body from special cast iron universal mounting possibilities movable jaws guided sideways stationary jaw with prisms for clamping flat workpieces both jaws with support surfaces Jaw width 034 402 Clamping width Jaw height Total length mm 85 010 65 30 255 100 020 87 30 287 120 030 110 30 368 034 406 Drilling machine vices Optimum clamping possibilities long guides through entire clamping range 2 offset prisms basic version 034 407 Prism jaws For drilling machine vices Art.N 034 406 Jaw width mm Clamping width mm 034 406 034 407 Jaw height mm Body length mm Total length mm 80 70 010 010 30 150 62 100 115 020 020 35 280 74 125 135 030 030 40 350 85 160 225 040 040 50 460 102 034 412 Drilling machine vices From special cast iron large clamping range mounts on sides and face long guide of movable jaw also in outer clamping range both jaws with support surfaces for clamping flat workpieces clamping jaws reversible one side flat or with longitudinal and transverse prisms both sides ground 034 413 Replacement jaws For drilling machine vices Art. IN034 412 and 034 416 Jaw width mm 034 412 034 413 Clamping width mm Jaw height mm Body length mm Total length mm 90 010 010 90 25 195 600 110 020 020 130 32 315 725 135 030 030 160 40 365 805 160 040 040 220 50 445 955 034 416 Quick-clamp vices Like 034 412 but with quick jaw adjustment for one-hand operation and clamping with a lever handle for replacement jaws see Art.N034 413 Jaw width mm 034 416 Clamping width Jaw height mm Body length mm Total length mm 110 020 130 32 315 725 135 030 160 40 365 805 034 439 Machine vices Clamping system Mechanical with rotating plate for all tool machines from fine grained cast iron Jaw width mm Clamping width mm 034 439 Jaw height mm 100 62 010 30 125 85 020 37 150 114 030 40 200 150 040 58 NORGAU 341 Clamping Tools 034 402
