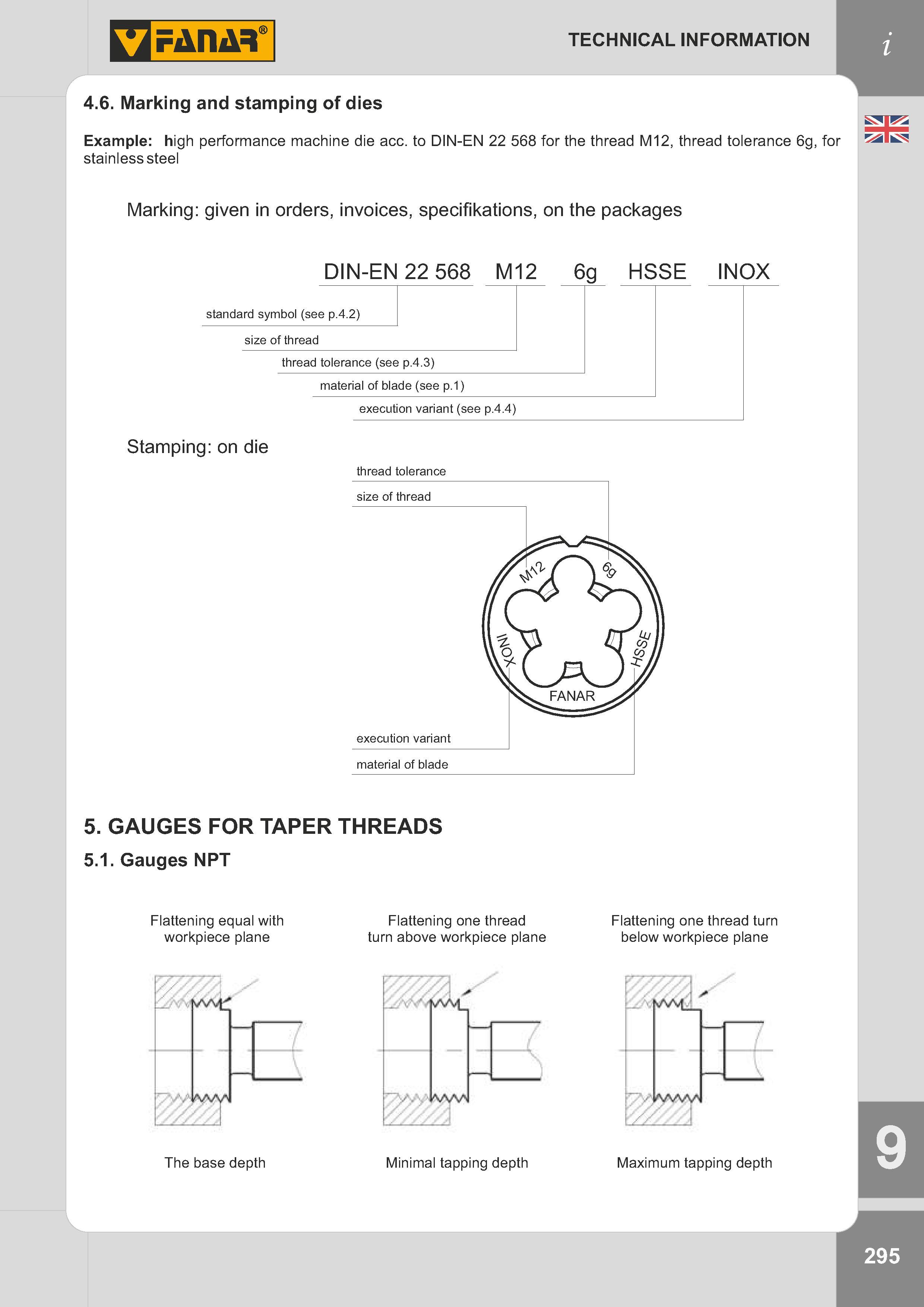

Marking and stamping of dies Example High performance machine die acc. to DIN-EN 22 568 for the thread M12, thread tolerance 6g, for stainless steel Marking: given in orders, invoices, specifikations, on the packages DIN-EN 22 568 M12 6g HSSE INOX standard symbol (see p.4.2) size of thread thread tolerance (see p.4.3) material of blade (see p.1) Stamping: on die execution variant (see p.4.4) thread tolerance 5. GAUGES FOR TAPER THREADS 5.1. Gauges NPT Flattening equal with workpiece plane The base depth Flattening one thread turn above workpiece plane Minimal tapping depth Flattening one thread turn below workpiece plane Maximum tapping depth TECHNICAL INFORMATION 4.6.
