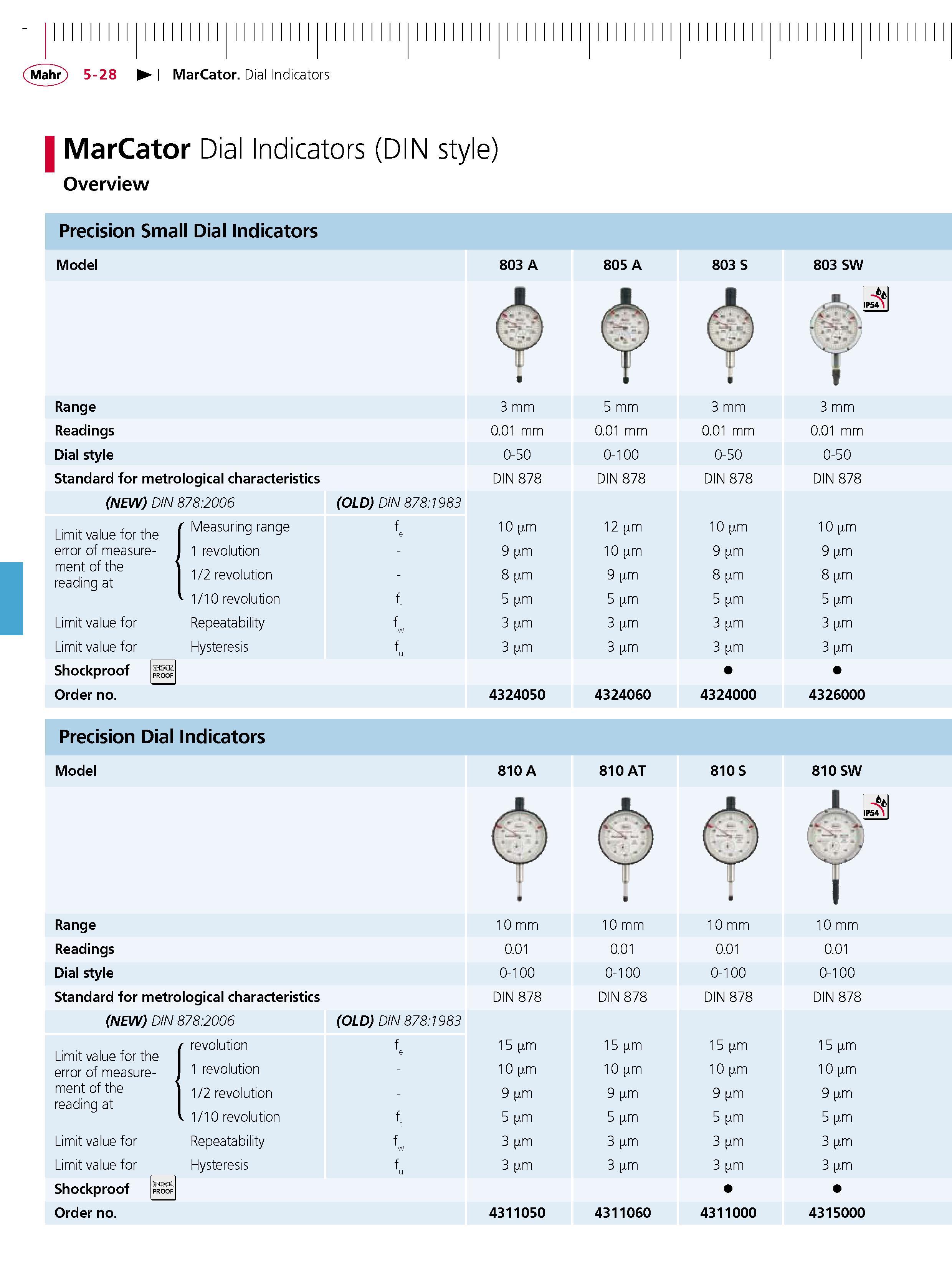

MarCator. Dial Indicators MarCator Dial Indicators (DIN style) Overview Precision Small Dial Indicators Model 803 A 805 A 803 S 803 SW Range 3 mm 5 mm 3 mm 3 mm Readings 0.01 mm 0.01 mm 0.01 mm 0.01 mm Dial style 0-50 0-100 0-50 0-50 Standard for metrological characteristics DIN 878 DIN 878 DIN 878 DIN 878 (NEW) DIN 878:2006 (OLD) DIN 878:1983 Limit value for the Measuring range f 10 m 12 m 10 m 10 m error of measure ment of the reading at 1 revolution 1 2 revolution - 9 m 8 m 10 m 9 m 9 m 8 m 9 m 8 m 1 10 revolution ft 5 m 5 m 5 m 5 m Limit value for Repeatability f w 3 m 3 m 3 m 3 m Limit value for Hysteresis f 3 m 3 m 3 m 3 m Shockproof SHOCK PROOF Order no. 4324050 4324060 4324000 4326000 Precision Dial Indicators Model 810 A 810 AT 810 S 810 SW Range 10 mm 10 mm 10 mm 10 mm Readings 0.01 0.01 0.01 0.01 Dial style 0-100 0-100 0-100 0-100 Standard for metrological characteristics DIN 878 DIN 878 DIN 878 DIN 878 (NEW) DIN 878:2006 (OLD) DIN 878:1983 Limit value for the revolution fe 15 m 15 m 15 m 15 m error of measure 1 revolution - 10 m 10 m 10 m 10 m ment of the reading at 1 2 revolution - 9 m 9 m 9 m 9 m 1 10 revolution ft 5 m 5 m 5 m 5 m Limit value for Repeatability f w 3 m 3 m 3 m 3 m Limit value for Hysteresis f 3 m 3 m 3 m 3 m Shockproof SHOCK PROOF Order no. 4311050 4311060 4311000 4315000
