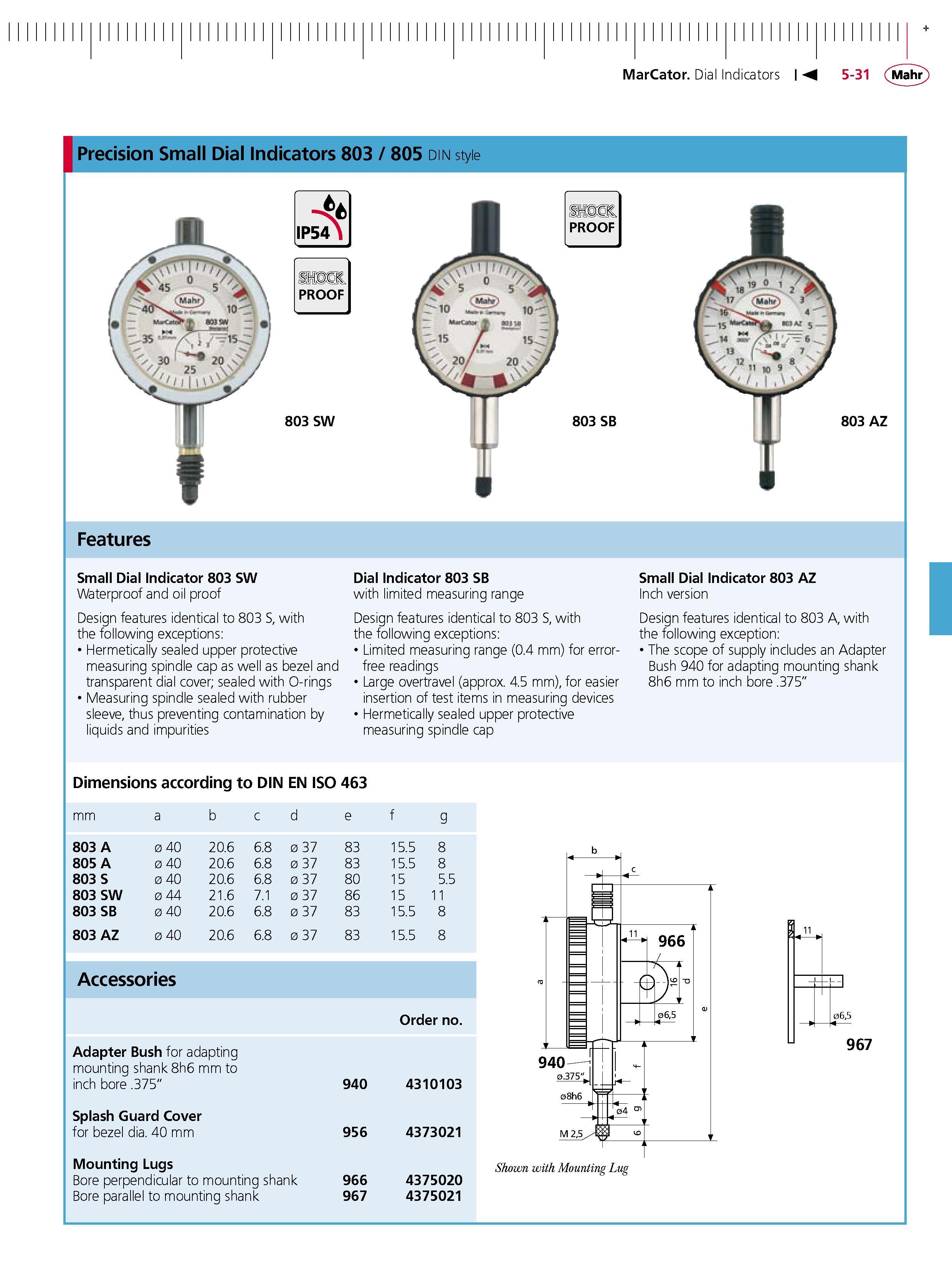

MarCator. Dial Indicators Precision Small Dial Indicators 803 805 din style 803 SW 803 SB 803 AZ Features Small Dial Indicator 803 SW Waterproof and oil proof Design features identical to 803 S with the following exceptions Hermetically sealed upper protective measuring spindle cap as well as bezel and transparent dial cover; sealed with O-rings Measuring spindle sealed with rubber sleeve thus preventing contamination by liquids and impurities Dial Indicator 803 SB with limited measuring range Design features identical to 803 S with the following exceptions Limited measuring range (0.4 mm) for error-free readings Large overtravel (approx. 4.5 mm) for easier insertion of test items in measuring devices Hermetically sealed upper protective measuring spindle cap Small Dial Indicator 803 AZ Inch version Design features identical to 803 A with the following exception The scope of supply includes an Adapter Bush 940 for adapting mounting shank 8h6 mm to inch bore .375" Dimensions according to DIN EN ISO 463 mm 803 A 805 A 803 S 803 SW 803 SB 803 AZ a b c d e f g 0 40 20.6 6.8 0 37 83 15.5 8 0 40 20.6 6.8 0 37 83 15.5 8 0 40 20.6 6.8 0 37 80 15 5.5 0 44 21.6 7.1 0 37 86 15 11 0 40 20.6 6.8 0 37 83 15.5 8 0 40 20.6 6.8 0 37 83 15.5 8 Accessories Order no. Adapter Bush for adapting mounting shank 8h6 mm to inch bore .375" 940 4310103 Splash Guard Cover for bezel dia. 40 mm 956 4373021 Mounting Lugs Bore perpendicular to mounting shank Bore parallel to mounting shank 966 967 4375020 4375021 966 065 65 967 Shown with Mounting Lug
