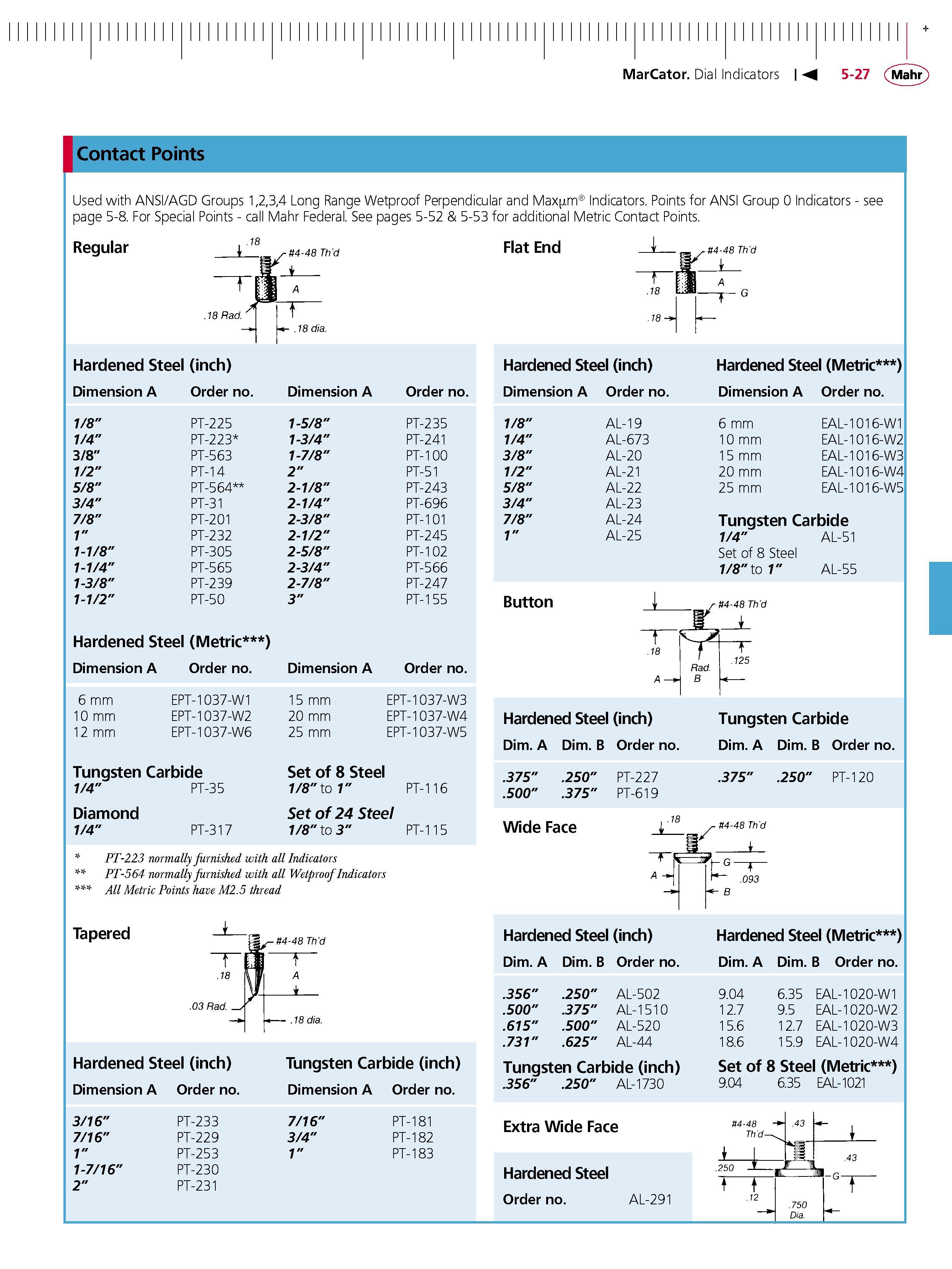

MarCator. Dial Indicators Contact Points Used with ANSI AGD Groups 1234 Long Range Wetproof Perpendicular and Max m Indicators. Points for ANSI Group 0 Indicators - see page 5-8. For Special Points - call Mahr Federal. See pages 5-52 & 5-53 for additional Metric Contact Points. Regular Hardened Steel (inch) Dimension A Order no. Dimension A Order no. 1 8" PT-225 1-5 8" PT-235 1 4" PT-223 1-3 4" PT-241 3 8" PT-563 1-7 8" PT-100 1 2" PT-14 2" PT-51 5 8" PT-564 2-1 8" PT-243 3 4" PT-31 2-1 4" PT-696 7 8" PT-201 2-3 8" PT-101 1" PT-232 2-1 2" PT-245 1-1 8" PT-305 2-5 8" PT-102 1-1 4" PT-565 2-3 4" PT-566 1-3 8" PT-239 2-7 8" PT-247 1-1 2" PT-50 3" PT-155 Hardened Steel (Metric ) Dimension A Order no. Dimension A Order no. 6 mm EPT-1037-W1 15 mm EPT-1037-W3 10 mm EPT-1037-W2 20 mm EPT-1037-W4 12 mm EPT-1037-W6 25 mm EPT-1037-W5 Tungsten Carbide Set of 8 Steel 1 4" PT-35 1 8" to 1" PT-116 Diamond Set of 24 Steel 1 4" PT-317 1 8" to 3" PT-115 PT-223 normally furnished with all Indicators PT-564 normally furnished with all Wetproof Indicators All Metric Points have M2.5 thread Tapered Hardened Steel (inch) Dimension A Order no. Tungsten Carbide (inch) Dimension A Order no. 3 16" 7 16" 1" 1-7 16" 2" PT-233 PT-229 PT-253 PT-230 PT-231 7 16" 3 4" 1" PT-181 PT-182 PT-183 Flat End Hardened Steel (inch) Hardened Steel (Metric ) Dimension A Order no. Dimension A Order no. 1 8" AL-19 6 mm EAL-1016-W1 1 4" AL-673 10 mm EAL-1016-W2 3 8" AL-20 15 mm EAL-1016-W3 1 2" AL-21 20 mm EAL-1016-W4 5 8" AL-22 25 mm EAL-1016-W5 3 4" AL-23 7 8" AL-24 Tungsten Carbide 1" AL-25 1 4" AL-51 Set of 8 Steel 1 8" to 1" AL-55 Hardened Steel (inch) Hardened Steel (Metric ) Dim. A Dim. B Order no. Dim. A Dim. B Order no. .356" .250" AL-502 9.04 6.35 EAL-1020-W1 .500" .375" AL-1510 12.7 9.5 EAL-1020-W2 .615" .500" AL-520 15.6 12.7 EAL-1020-W3 .731" .625" AL-44 18.6 15.9 EAL-1020-W4 Tungsten Carbide (inch) Set of 8 Steel (Metric ) .356" .250" AL-1730 9.04 6.35 EAL-1021 Extra Wide Face Hardened Steel Order no. AL-291
