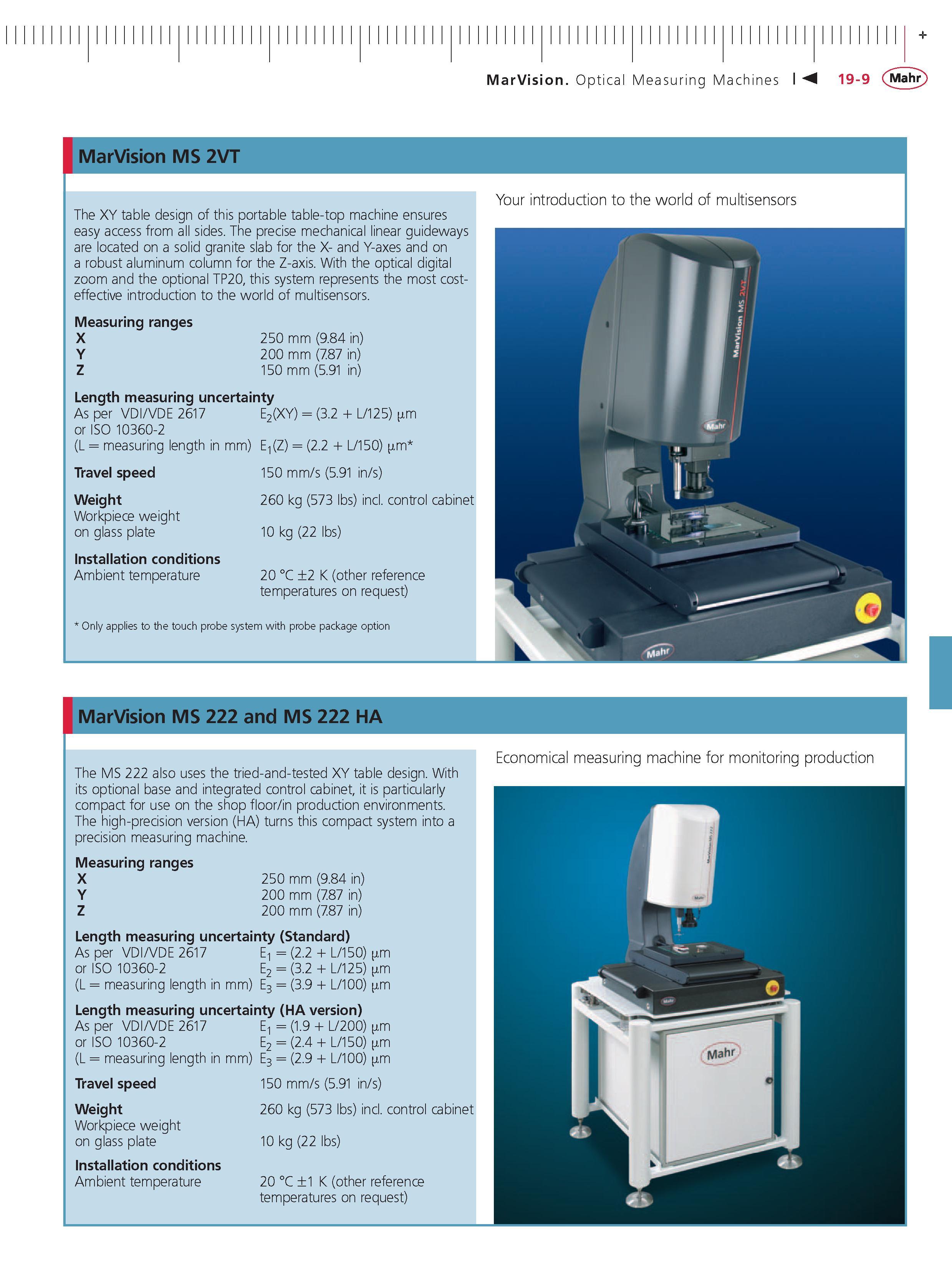

MarVision. Optical Measuring Machines MarVision MS 2VT The XY table design of this portable table-top machine ensures easy access from all sides. The precise mechanical linear guideways are located on a solid granite slab for the X- and Y-axes and on a robust aluminum column for the Z-axis. With the optical digital zoom and the optional TP20 this system represents the most cost-effective introduction to the world of multisensors. Measuring ranges X Y Z 250 mm (9.84 in) 200 mm (7.87 in) 150 mm (5.91 in) Length measuring uncertainty As per VDI VDE 2617 E2(XY) (3.2 L 125) m or ISO 10360-2 (L measuring length in mm) E1(Z) (2.2 L 150) m Travel speed Weight Workpiece weight on glass plate Installation conditions Ambient temperature 150 mm s (5.91 in s) 260 kg (573 lbs) incl. control cabinet 10 kg (22 lbs) 20 C 2 K (other reference temperatures on request) Only applies to the touch probe system with probe package option Your introduction to the world of multisensors MarVision MS 222 and MS 222 HA The MS 222 also uses the tried-and-tested XY table design. With its optional base and integrated control cabinet it is particularly compact for use on the shop floor in production environments. The high-precision version (Ha) turns this compact system into a precision measuring machine. Measuring ranges X 250 mm (9.84 in) Y 200 mm (7.87 in) Z 200 mm (7.87 in) Length measuring uncertainty (Standard) As per VDI VDE 2617 E1 (2.2 L 150) m or ISO 10360-2 E2 (3.2 L 125) m (L measuring length in mm) E3 (3.9 L 100) m Length measuring uncertainty (HA version) As per VDI VDE 2617 E1 (1.9 L 200) m or ISO 10360-2 E2 (2.4 L 150) m (L measuring length in mm) E3 (2.9 L 100) m Economical measuring machine for monitoring production Travel speed Weight Workpiece weight on glass plate Installation conditions Ambient temperature 150 mm s (5.91 in s) 260 kg (573 lbs) incl. control cabinet 10 kg (22 lbs) 20 C 1 K (other reference temperatures on request)
