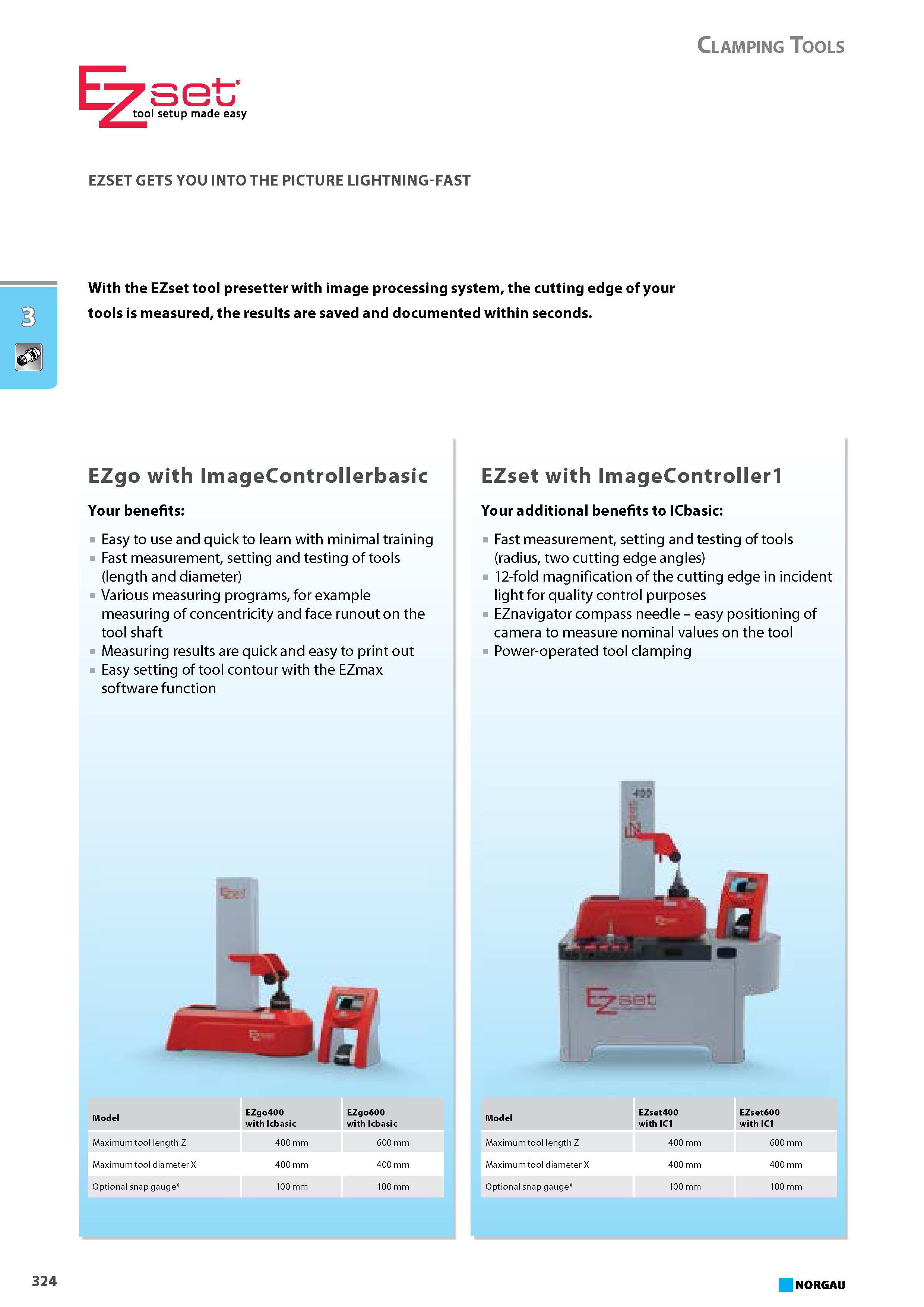

With the EZset tool presetter with image processing system the cutting edge of your tools is measured the results are saved and documented within seconds EZgo with ImageControllerbasic Your benefits Easy to use and quick to learn with minimal training Fast measurement setting and testing of tools (length and diameter) Various measuring programs for example measuring of concentricity and face runout on the tool shaft Measuring results are quick and easy to print out Easy setting of tool contour with the EZmax software function Model EZgo400 with Icbasic EZgo600 with Icbasic Maximum tool length Z 400 mm 600 mm Maximum tool diameter X 400 mm 400 mm Optional snap gauge 100 mm 100 mm EZset with ImageControllerl Your additional benefits to ICbasic Fast measurement setting and testing of tools (radius two cutting edge angles) 12-fold magnification of the cutting edge in incident light for quality control purposes EZnavigator compass needle - easy positioning of camera to measure nominal values on the tool Power-operated tool clamping EZset400 EZset600 Model with IC1 with IC1 Maximum tool length Z 400 mm 600 mm Maximum tool diameter X 400 mm 400 mm Optional snap gauge 100 mm 100 mm 324 NORGAU Clamping Tools set tool setup made easy EZSET GETS YOU INTO THE PICTURE LIGHTNING-FAST
