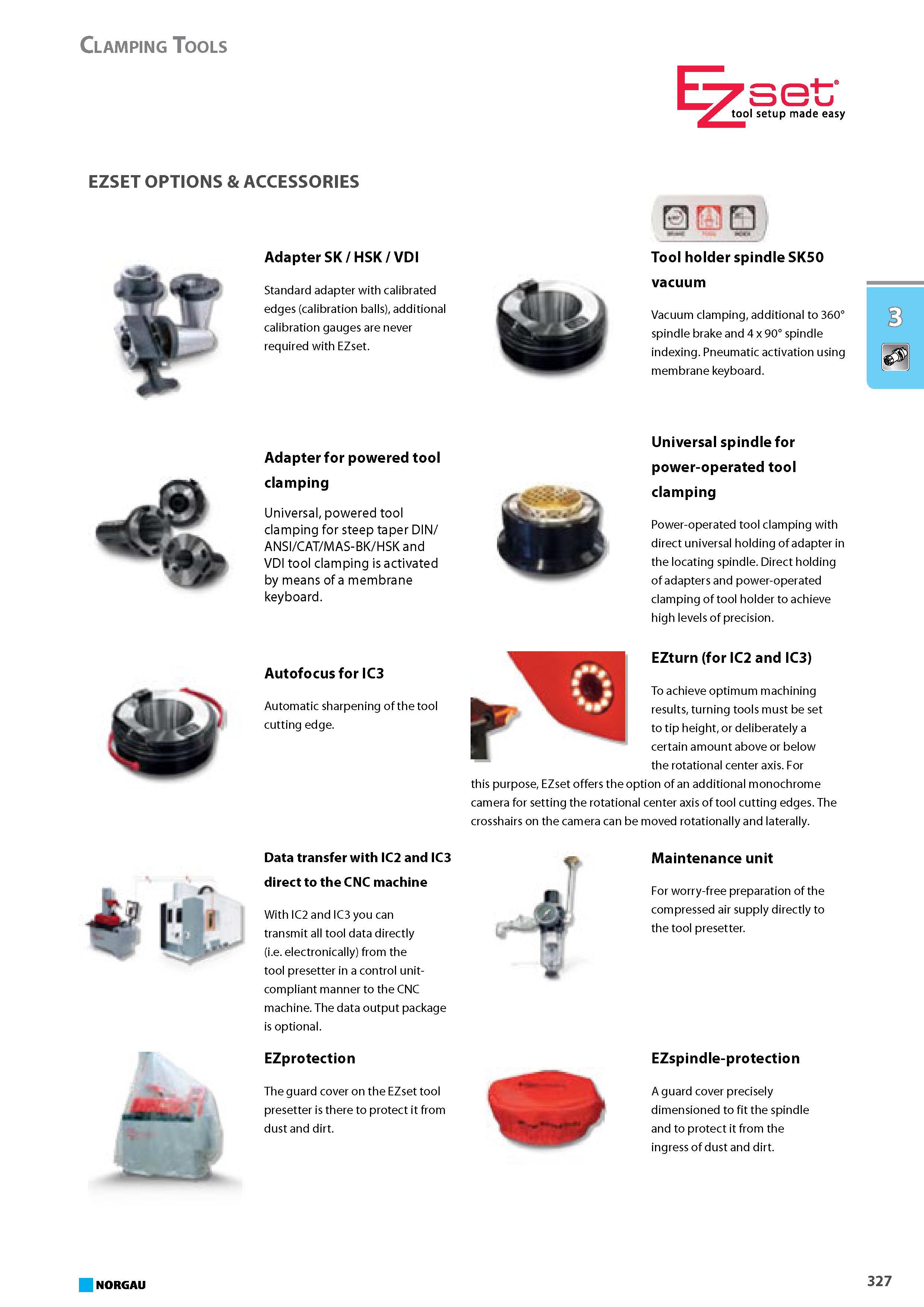

Standard adapter with calibrated edges calibration balls additional calibration gauges are never required with EZset. 1 n Tool holder spindle SK50 vacuum Vacuum clamping additional to 360 spindle brake and 4 x 90 spindle indexing. Pneumatic activation using membrane keyboard. Adapter for powered tool clamping Universal powered tool clamping for steep taper DIN ANSI CAT MAS-BK HSK and VDI tool clamping is activated by means of a membrane keyboard. Universal spindle for power-operated tool clamping Power-operated tool clamping with direct universal holding of adapter in the locating spindle. Direct holding of adapters and power-operated clamping of tool holder to achieve high levels of precision. Autofocus forIC3 Automatic sharpening of the tool cutting edge. EZturn (for IC2 and IC3) To achieve optimum machining results turning tools must be set to tip height or deliberately a certain amount above or below the rotational center axis. For this purpose EZset offers the option of an additional monochrome camera for setting the rotational center axis of tool cutting edges. The crosshairs on the camera can be moved rotationally and laterally. Data transfer with IC2 and IC3 direct to the CNC machine With IC2 and IC3 you can transmit all tool data directly (i.e. electronically) from the tool presetter in a control unit-compliant manner to the CNC machine. The data output package is optional. EZprotection The guard cover on the EZset tool presetter is there to protect it from dust and dirt. Maintenance unit For worry-free preparation of the compressed air supply directly to the tool presetter. EZspindle-protection A guard cover precisely dimensioned to fit the spindle and to protect it from the ingress of dust and dirt. NORGAU 327 Clamping Tools set tool setup made easy EZSET OPTIONS & ACCESSORIES Adapter SK HSK VDI
