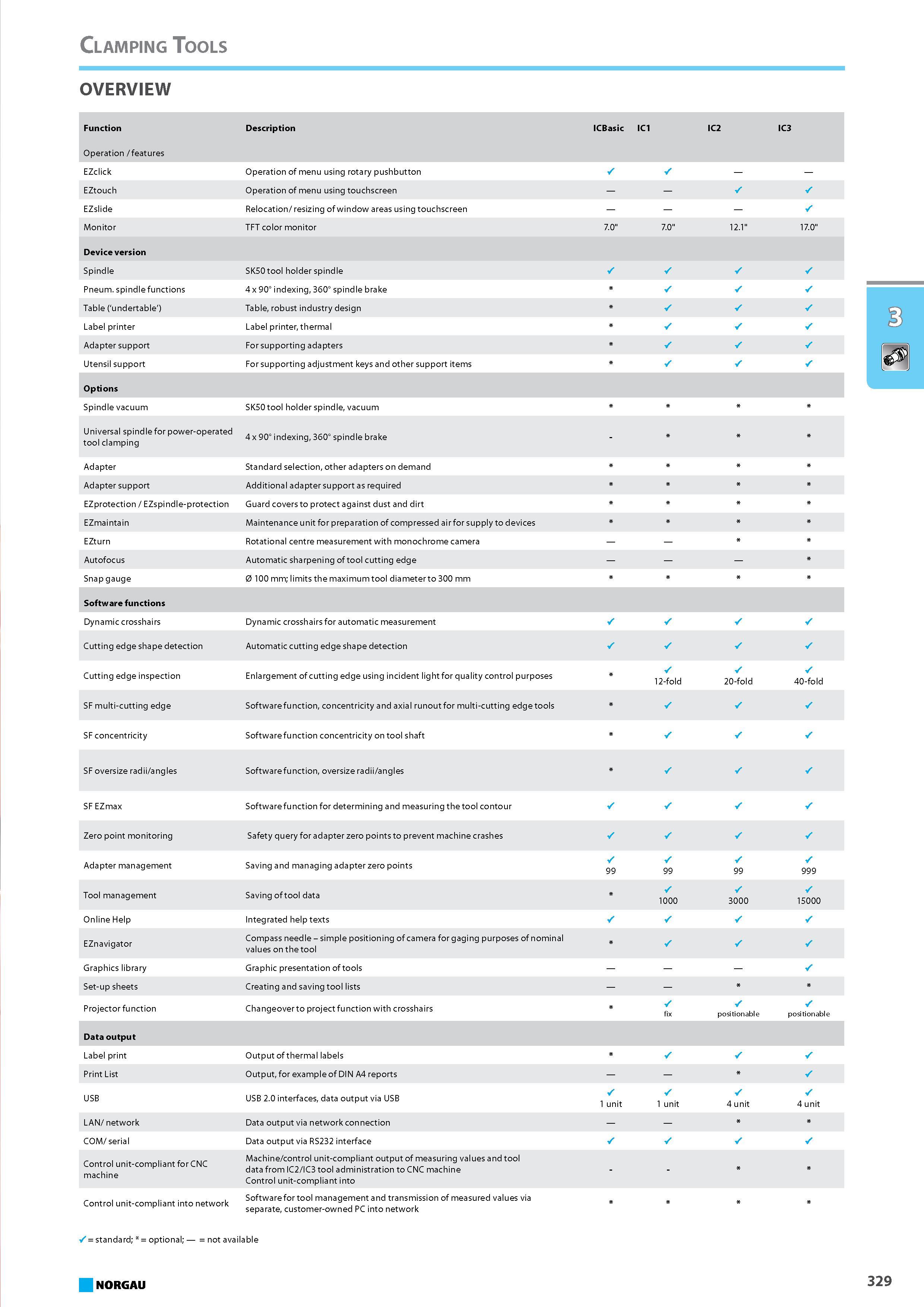

overview Function Description ICBasic IC1 IC2 IC3 Operation features EZclick Operation of menu using rotary pushbutton V EZtouch Operation of menu using touchscreen EZ

overview Function Description ICBasic IC1 IC2 IC3 Operation features EZclick Operation of menu using rotary pushbutton V EZtouch Operation of menu using touchscreen EZslide Relocation resizing of window areas using touchscreen - Monitor TFT color monitor 7.0" 7.0" 12.1" 17.0" Device version Spindle SK50 tool holder spindle s Pneum. spindle functions 4 x 90 indexing 360 spindle brake s s Table ('undertable') Table robust industry design s Y Label printer Label printer thermal S Adapter support For supporting adapters S Utensil support For supporting adjustment keys and other support items S options Spindle vacuum SK50 tool holder spindle vacuum Universal spindle for power-operated tool clamping 4 x 90 indexing 360 spindle brake - Adapter Standard selection other adapters on demand Adapter support Additional adapter support as required EZprotection EZspindle-protection Guard covers to protect against dust and dirt EZmaintain Maintenance unit for preparation of compressed air for supply to devices EZturn Rotational centre measurement with monochrome camera Autofocus Automatic sharpening of tool cutting edge - Snap gauge 0 100 mm limits the maximum tool diameter to 300 mm Software functions Dynamic crosshairs Dynamic crosshairs for automatic measurement s Cutting edge shape detection Automatic cutting edge shape detection s S Cutting edge inspection Enlargement of cutting edge using incident light for quality control purposes 12-fold s 20-fold S 40-fold SF multi-cutting edge Software function concentricity and axial runout for multi-cutting edge tools S SF concentricity Software function concentricity on tool shaft S SF oversize radii angles Software function oversize radii angles S SF EZmax Software function for determining and measuring the tool contour s Zero point monitoring Safety query for adapter zero points to prevent machine crashes s Adapter management Saving and managing adapter zero points 99 99 99 s 999 Tool management Saving of tool data 1000 3000 15000 Online Help Integrated help texts EZnavigator Compass needle - simple positioning of camera for gaging purposes of nominal values on the tool Graphics library Graphic presentation of tools - Set-up sheets Creating and saving tool lists Projector function Changeover to project function with crosshairs fix posi tionable posi tionable Data output Label print Output of thermal labels Print List Output for example of DIN A4 reports USB USB 2.0 interfaces data output via USB 1 unit 1 unit 4 unit s 4 unit LAN network Data output via network connection COM serial Data output via RS232 interface Control unit-compliant for CNC machine Machine control unit-compliant output of measuring values and tool data from IC2 IC3 tool administration to CNC machine Control unit-compliant into Control unit-compliant into network Software for tool management and transmission of measured values via separate customer-owned PC into network standard optional not available NORGAU 329 Clamping Tools
