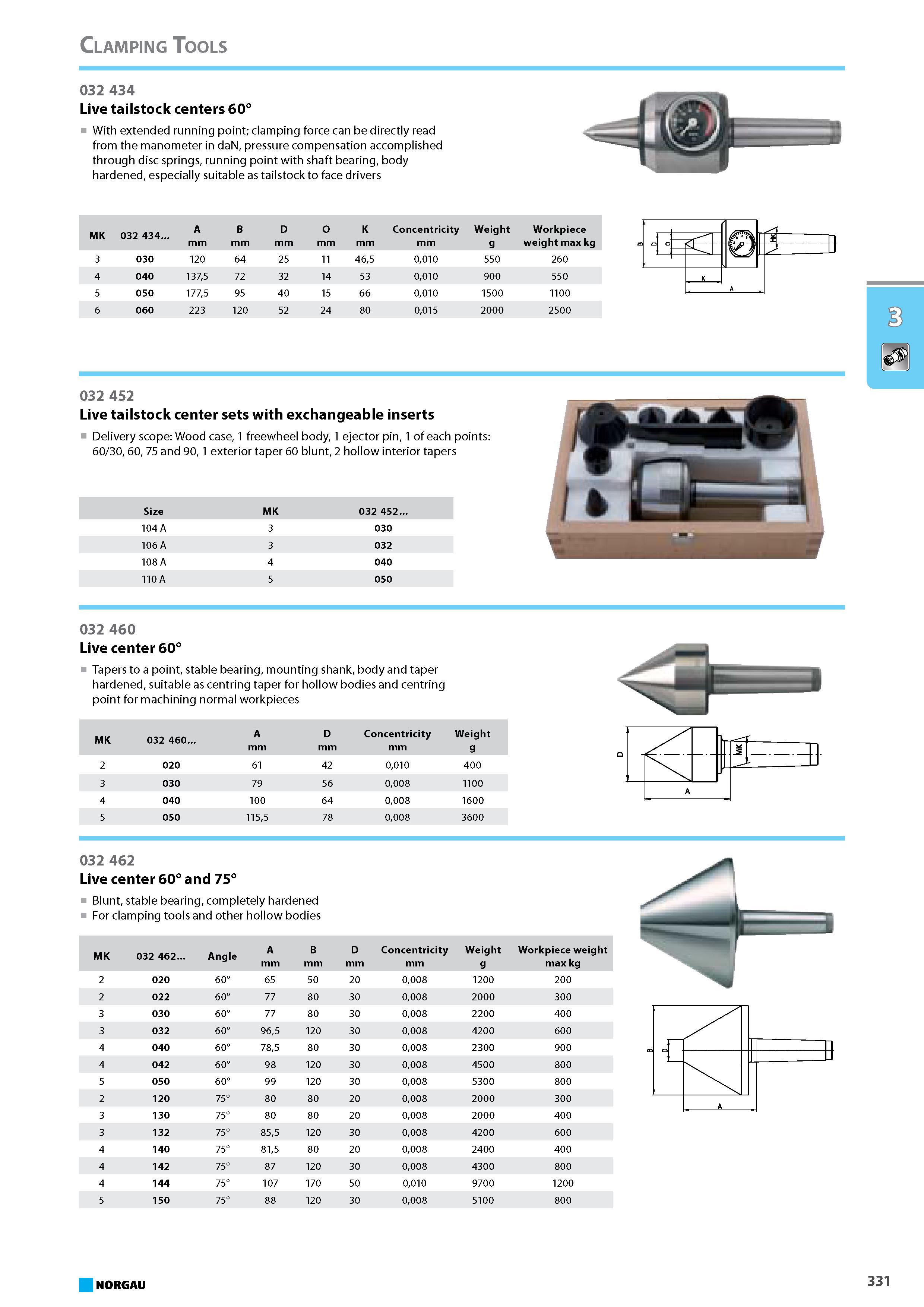

Live tailstock centers 60 With extended running point clamping force can be directly read from the manometer in daN pressure compensation accomplished through disc springs running point with shaft bearing body hardened especially suitable as tailstock to face drivers MK 032 434 A mm B mm D mm K mm Concentricity mm Weight g Workpiece weight max kg 3 030 120 64 25 11 465 0010 550 260 4 040 1375 72 32 14 53 0010 900 550 5 050 1775 95 4Q 15 66 0010 1500 1100 6 060 223 12Q 52 24 80 0015 2000 2500 032 452 Live tailstock center sets with exchangeable inserts Delivery scope Wood case 1 freewheel body 1 ejector pin 1 of each points 60 306075 and 901 exterior taper 60 blunt 2 hollow interior tapers Size MK 032 452 104 A 3 030 106 A 3 032 108 A 4 040 110 A 5 050 032 460 Live center 60 Tapers to a point stable bearing mounting shank body and taper hardened suitable as centring taper for hollow bodies and centring point for machining normal workpieces MK 032 460 A mm D mm Concentricity mm Weight g 2 020 61 42 0010 400 3 030 79 56 0008 1100 4 040 100 64 0008 1600 5 050 1155 78 0008 3600 032 462 Live center 60 and 75 Blunt stable bearing completely hardened For clamping tools and other hollow bodies MK 032 462 Angle A mm B mm D mm Concentricity mm Weight g Workpiece weight max kg 2 020 60O 65 50 20 0008 1200 200 2 022 0O 6 77 80 30 0008 2000 300 3 030 60O 77 80 30 0008 2200 400 3 032 60O 965 120 30 0008 4200 600 4 040 60O 785 80 30 0008 2300 900 4 042 60O 98 120 30 0008 4500 800 5 050 60O 99 120 30 0008 5300 800 2 120 75O 80 80 20 0008 2000 300 3 130 75O 80 80 20 0008 2000 400 3 132 75O 855 120 30 0008 4200 600 4 140 75O 815 80 20 0008 2400 400 4 142 75O 87 120 30 0008 4300 800 4 144 75O 107 170 50 0010 9700 1200 5 150 75O 88 120 30 0008 5100 800 NORGAU 331 Clamping Tools 032 434
