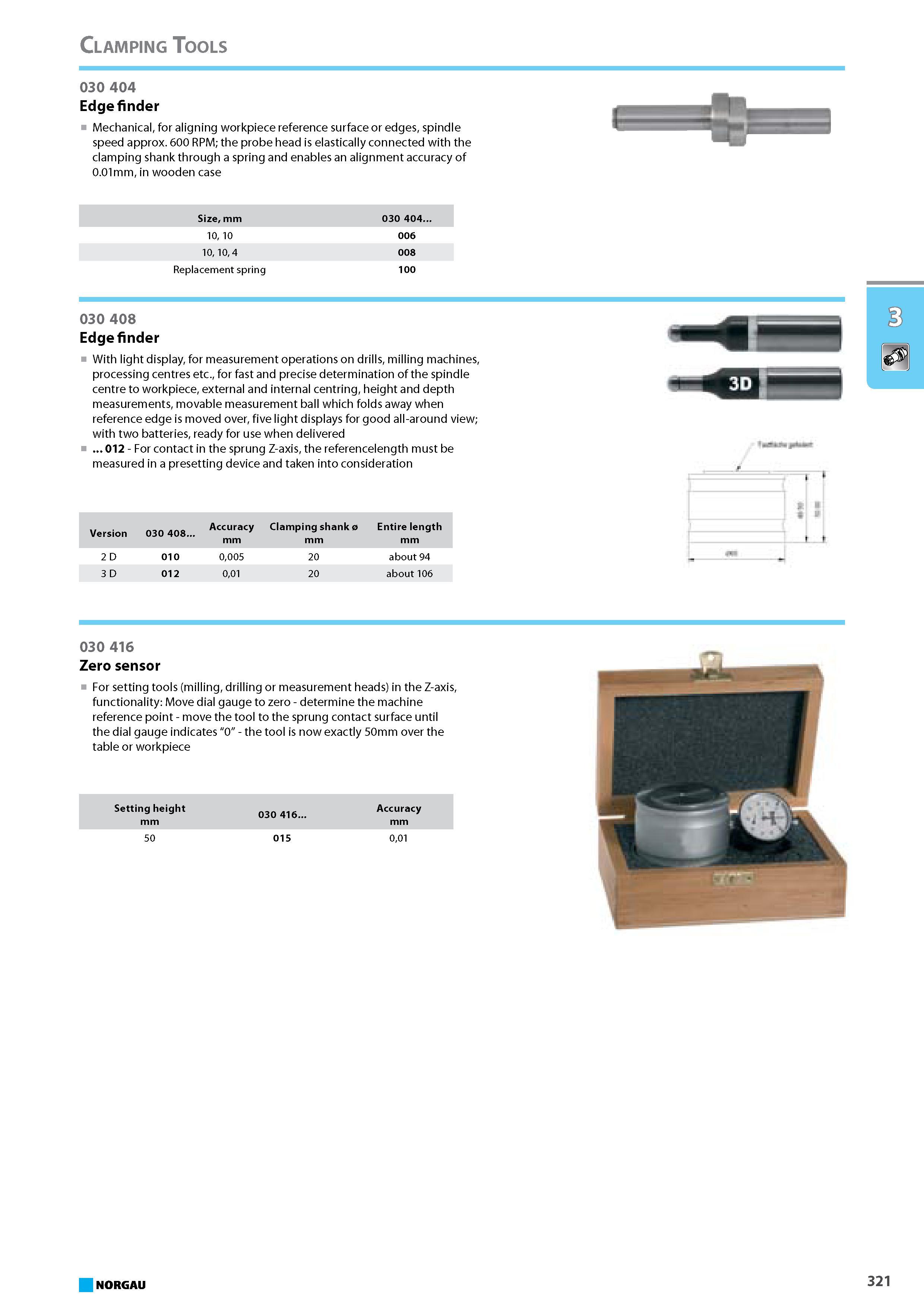

Edge finder Mechanical for aligning workpiece reference surface or edges spindle speed approx. 600 RPM the probe head is elastically connected with the clamping shank through a spring and enables an alignment accuracy of 0.01mm in wooden case Size mm 030 404 10 10 006 10 10 4 008 Replacement spring 100 030 408 Edge finder With light display for measurement operations on drills milling machines processing centres etc. for fast and precise determination of the spindle centre to workpiece external and internal centring height and depth measurements movable measurement ball which folds away when reference edge is moved over five light displays for good all-around view with two batteries ready for use when delivered 012 - For contact in the sprung Z-axis the referencelength must be measured in a presetting device and taken into consideration Version 030 408 Accuracy mm Clamping shank 0 mm Entire length mm 2 D 010 0005 20 about 94 3 D 012 001 20 about 106 "1 j ir 1 1 y 1 1 1 t fm 030 416 Zero sensor For setting tools (milling drilling or measurement heads) in the Z-axis functionality Move dial gauge to zero - determine the machine reference point - move the tool to the sprung contact surface until the dial gauge indicates 0 - the tool is now exactly 50mm over the table or workpiece Setting height 030 416 Accuracy mm 50 015 001 NORGAU 321 Clamping Tools 030 404
