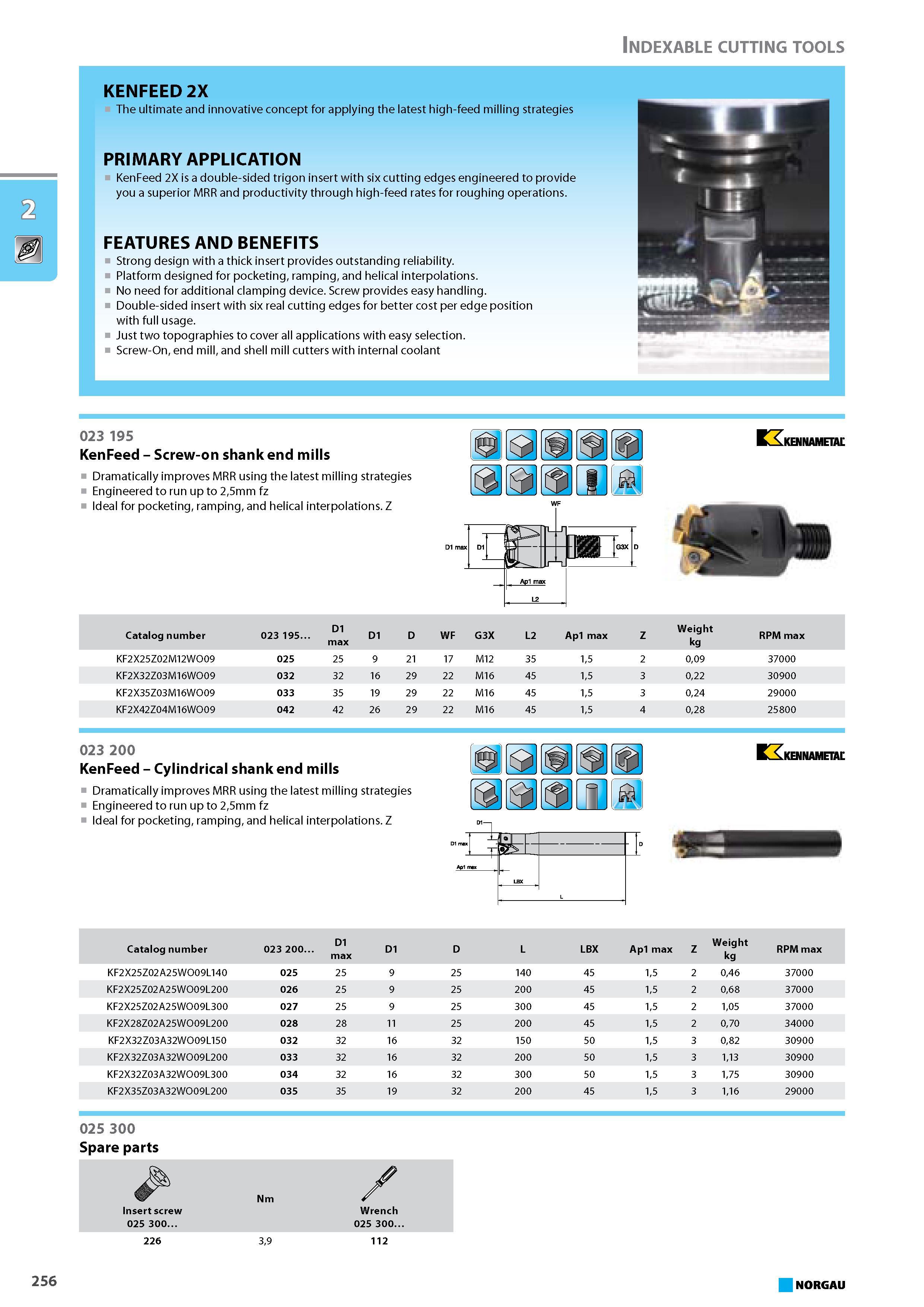

The ultimate and innovative concept for applying the latest high-feed milling strategies PRIMARY APPLICATION KenFeed 2X is a double-sided trigon insert with six cuttin

The ultimate and innovative concept for applying the latest high-feed milling strategies PRIMARY APPLICATION KenFeed 2X is a double-sided trigon insert with six cutting edges engineered to provide you a superior MRR and productivity through high-feed rates for roughing operations. FEATURES AND BENEFITS Strong design with a thick insert provides outstanding reliability. Platform designed for pocketing ramping and helical interpolations. No need for additional clamping device. Screw provides easy handling. Double-sided insert with six real cutting edges for better cost per edge position with full usage. Just two topographies to cover all applications with easy selection. Screw-On end mill and shell mill cutters with internal coolant 023 195 KenFeed - Screw-on shank end mills Dramatically improves MRR using the latest milling strategies Engineered to run up to 25mm fz Ideal for pocketing ramping and helical interpolations. Z 9 s 0 9 1 Eh KENNAMETAL Catalog number 023 195. D1 max D1 D WF G3X L2 Ap1 max Z Weight kg RPM max KF2X25Z02M12WO09 025 25 9 21 17 M12 35 15 2 009 37000 KF2X32Z03M16WO09 032 32 16 29 22 M16 45 15 3 022 30900 KF2X35Z03M16WO09 033 35 19 29 22 M16 45 15 3 024 29000 KF2X42Z04M16WO09 042 42 26 29 22 M16 45 15 4 028 25800 023 200 KenFeed - Cylindrical shank end mills Dramatically improves MRR using the latest milling strategies Engineered to run up to 25mm fz Ideal for pocketing ramping and helical interpolations. Z 9 1 a EL KENNAMETAL 025 300 Spare parts Nm Insert screw Wrench 025 300. 025 300. 226 39 112 256 NORGAU Indexable cutting tools KENFEED 2X
