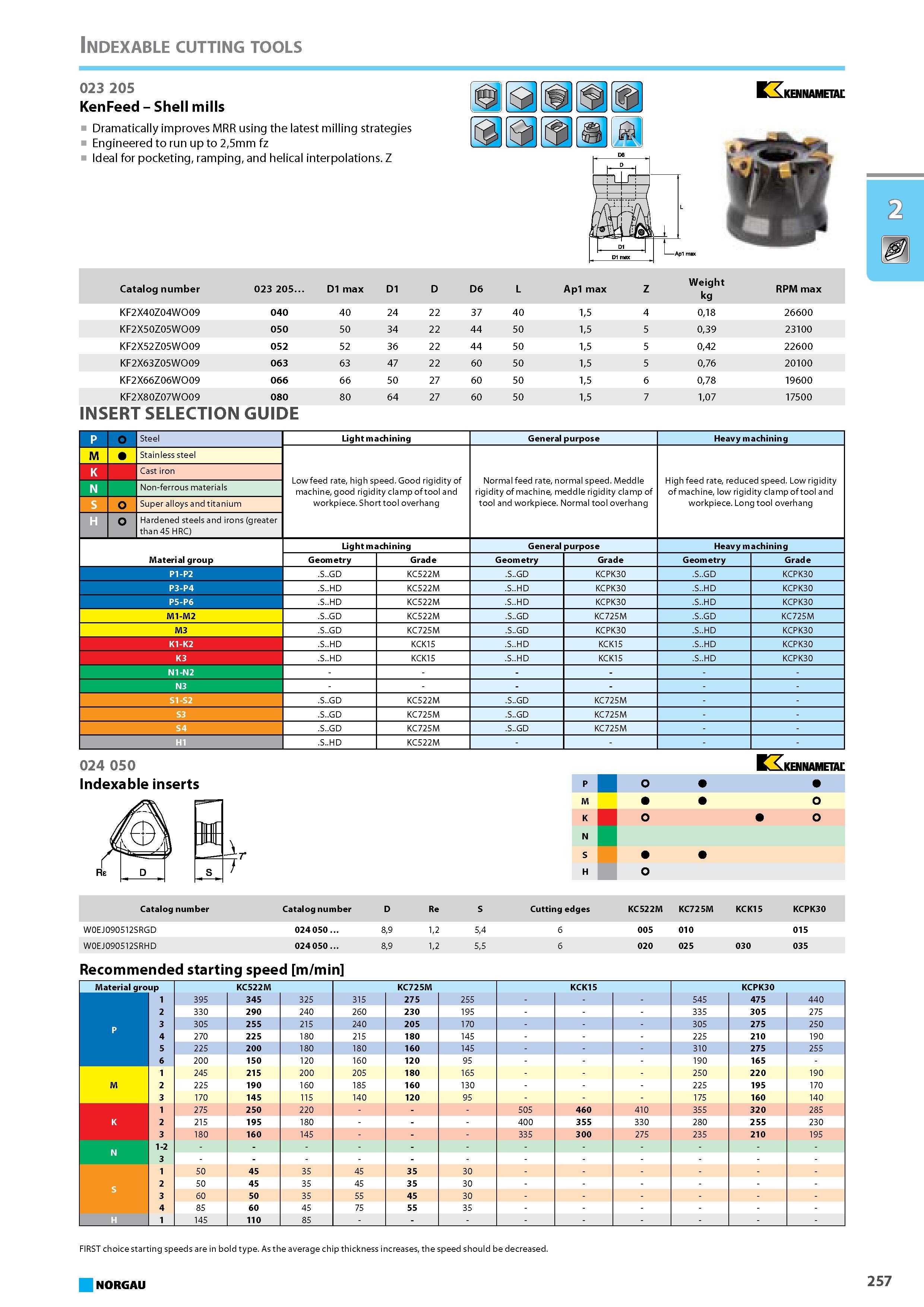

Shell mills Dramatically improves MRR using the latest milling strategies Engineered to run up to 25mm fz Ideal for pocketing ramping and helical interpolations. Z 9 S

Shell mills Dramatically improves MRR using the latest milling strategies Engineered to run up to 25mm fz Ideal for pocketing ramping and helical interpolations. Z 9 S n 9 nl Q KENNAMETAL Catalog number 023 205. D1 max D1 D D6 L Ap1 max Z Weight kg RPM max KF2X40Z04WO09 040 40 24 22 37 40 15 4 018 26600 KF2X50Z05WO09 050 50 34 22 44 50 15 5 039 23100 KF2X52Z05WO09 052 52 36 22 44 50 15 5 042 22600 KF2X63Z05WO09 063 63 47 22 60 50 15 5 076 20100 KF2X66Z06WO09 066 66 50 27 60 50 15 6 078 19600 KF2X80Z07WO09 080 80 64 27 60 50 15 7 107 17500 INSERT SELECTION GUIDE p Steel Light machining General purpose Heavy machining ZMID Stainless steel Low feed rate high speed. Good rigidity of machine good rigidity clamp of tool and workpiece. Short tool overhang Normal feed rate normal speed. Meddle rigidity of machine meddle rigidity clamp of tool and workpiece. Normal tool overhang High feed rate reduced speed. Low rigidity of machine low rigidity clamp of tool and workpiece. Long tool overhang K Cast iron N Non-ferrous materials S Super alloys and titanium Hardened steels and irons (greater than 45 HRC) Material group Light machining General purpose Heavy machining Geometry Grade Geometry Grade Geometry Grade P1-P2 .S..GD KC522M .S..GD KCPK30 .S..GD KCPK30 P3-P4 .S..HD KC522M .S..HD KCPK30 .S..HD KCPK30 P5-P6 .S..HD KC522M .S..HD KCPK30 .S..HD KCPK30 M1-M2 .S..GD KC522M .S..GD KC725M .S..GD KC725M M3 .S..GD KC725M .S..GD KCPK30 .S..HD KCPK30 K1-K2 .S..HD KCK15 .S..HD KCK15 .S..HD KCPK30 K3 .S..HD KCK15 .S..HD KCK15 .S..HD KCPK30 N1-N2 N3 S1-S2 .S..GD KC522M .S..GD KC725M S3 .S..GD KC725M .S..GD KC725M S4 .S..GD KC725M .S..GD KC725M H1 .S..HD KC522M 024 050 Indexable inserts pB WZi KENNAMETAL Catalog number Catalog number D Re S Cutting edges KC522M KC725M KCK15 KCPK30 W0EJ090512SRGD 024 050 89 12 54 6 005 010 015 W0EJ090512SRHD 024 050 89 12 55 6 020 025 030 035 Recommended starting speed m/min 1 Material group KC522M 1 KC725M KCK15 KCPK30 1 395 345 325 315 275 255 545 475 440 2 330 290 240 260 230 195 335 305 275 3 305 255 215 240 205 170 305 275 250 P 4 270 225 180 215 180 145 225 210 190 5 225 200 180 180 160 145 310 275 255 6 200 150 120 160 120 95 190 165 1 245 215 200 205 180 165 250 220 190 M 2 225 190 160 185 160 130 225 195 170 3 170 145 115 140 120 95 175 160 140 1 275 250 220 - 505 460 410 355 320 285 K 2 215 195 180 - 400 355 330 280 255 230 3 180 160 145 - 335 300 275 235 210 195 N 1-2 3 1 50 45 35 45 35 30 2 50 45 35 45 35 30 S 3 60 50 35 55 45 30 4 85 60 45 75 55 35 H 1 145 110 85 - FIRST choice starting speeds are in bold type. As the average chip thickness increases the speed should be decreased. NORGAU 257 Indexable cutting tools 023 205 KenFeed -
