Indexable cutting tools Recommended Starting Feeds mm Light machining General purpose Heavy machining Insert geometry Programmed feed per tooth (fz) as a of radial dep

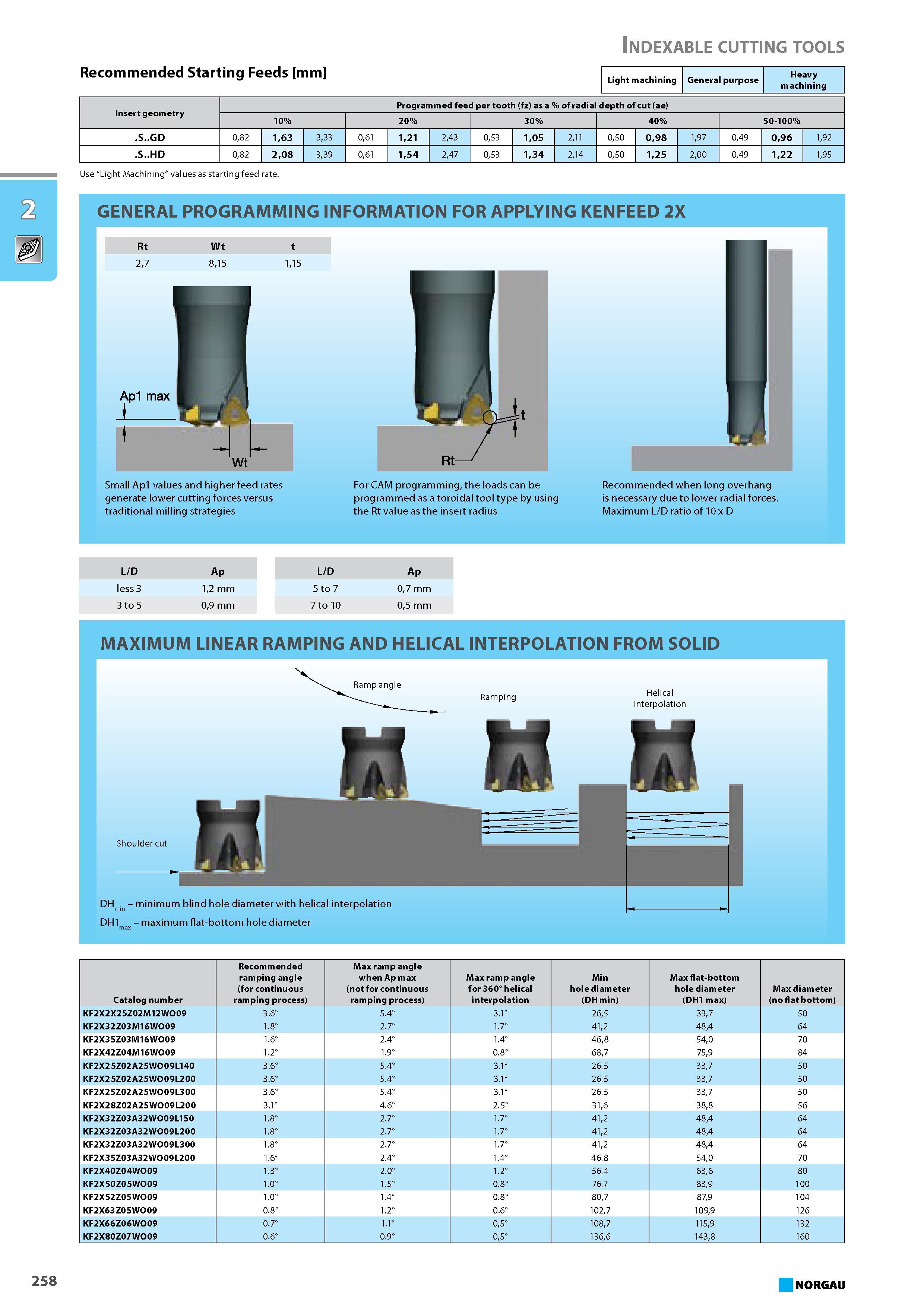

Indexable cutting tools Recommended Starting Feeds mm Light machining General purpose Heavy machining Insert geometry Programmed feed per tooth (fz) as a of radial depth of cut (ae) 10% 20% 30% 40% 50-100% .S..GD 082 163 333 061 121 243 053 105 211 050 098 197 049 096 192 .S..HD 082 208 339 061 154 247 053 134 214 050 125 200 049 122 195 Use "Light Machining" values as starting feed rate. GENERAL PROGRAMMING INFORMATION FOR APPLYING KENFEED 2X Rt 27 Wt 815 t 115 Ap1 max Wt Small Ap1 values and higher feed rates generate lower cutting forces versus traditional milling strategies For CAM programming the loads can be programmed as a toroidal tool type by using the Rt value as the insert radius Recommended when long overhang is necessary due to lower radial forces. Maximum L D ratio of 10 x D L D Ap L D Ap less 3 12 mm 5 to 7 07 mm 3 to 5 09 mm 7 to 10 05 mm MAXIMUM LINEAR RAMPING AND HELICAL INTERPOLATION FROM SOLID Helical interpolation DHmin - minimum blind hole diameter with helical interpolation DH1 - maximum flat-bottom hole diameter Catalog number Recommended ramping angle (for continuous ramping process) Max ramp angle when Ap max (not for continuous ramping process) Max ramp angle for 360 helical interpolation Min hole diameter (DH min) Max flat-bottom hole diameter (DH1 max) Max diameter (no flat bottom) KF2X2X25Z02M12WO09 3.6 5.4 3.1 265 337 50 KF2X32Z03M16WO09 1.8 2.7 1.7 412 484 64 KF2X35Z03M16WO09 1.6 2.4 1.4 468 540 70 KF2X42Z04M16WO09 1.2 1.9 .8 0. 687 759 84 KF2X25Z02A25WO09L140 3.6 5.4 3.1 265 337 50 KF2X25Z02A25WO09L200 3.6 5.4 3.1 265 337 50 KF2X25Z02A25WO09L300 3.6 5.4 3.1 265 337 50 KF2X28Z02A25WO09L200 3.1 .6 4. 2.5 316 388 56 KF2X32Z03A32WO09L150 1.8 2.7 1.7 412 484 64 KF2X32Z03A32WO09L200 1.8 2.7 1.7 412 484 64 KF2X32Z03A32WO09L300 1.8 2.7 1.7 412 484 64 KF2X35Z03A32WO09L200 1.6 2.4 1.4 468 540 70 KF2X40Z04WO09 1.3 2.0 1.2 564 636 80 KF2X50Z05WO09 1.0 1.5 0.8 767 839 100 KF2X52Z05WO09 1.0 1.4 0.8 807 879 104 KF2X63Z05WO09 0.8 1.2 0.6 1027 1099 126 KF2X66Z06WO09 0.7 1.1 05 1087 1159 132 KF2X80Z07WO09 0.6 0.9 05 1366 1438 160 258 NORGAU
