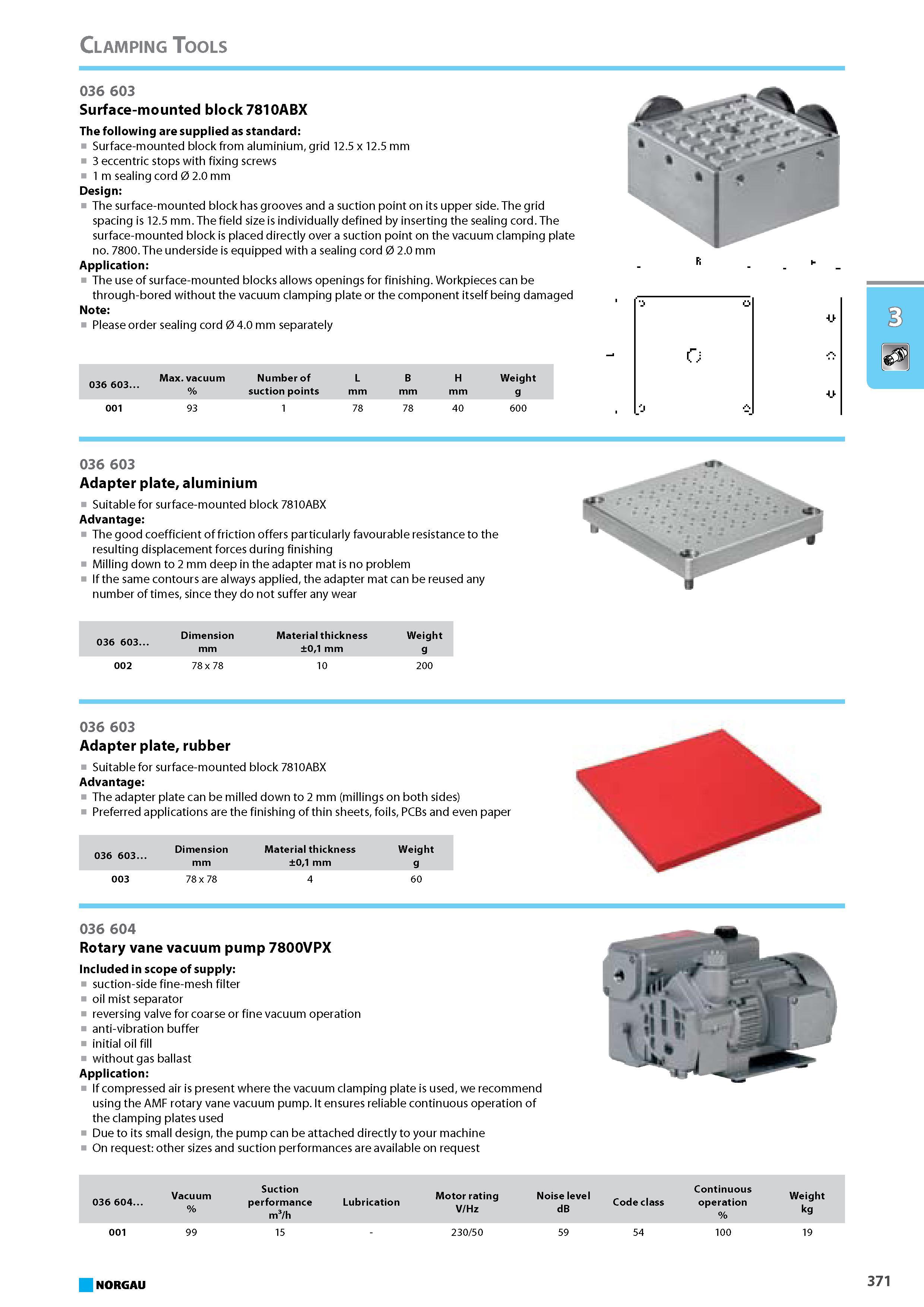

Surface-mounted block 7810ABX The following are supplied as standard Surface-mounted block from aluminium grid 12.5 x 12.5 mm 3 eccentric stops with fixing screws 1 m

Surface-mounted block 7810ABX The following are supplied as standard Surface-mounted block from aluminium grid 12.5 x 12.5 mm 3 eccentric stops with fixing screws 1 m sealing cord 0 2.0 mm Design The surface-mounted block has grooves and a suction point on its upper side. The grid spacing is 12.5 mm. The field size is individually defined by inserting the sealing cord. The surface-mounted block is placed directly over a suction point on the vacuum clamping plate no. 7800. The underside is equipped with a sealing cord 0 2.0 mm Application The use of surface-mounted blocks allows openings for finishing. Workpieces can be through-bored without the vacuum clamping plate or the component itself being damaged Note Please order sealing cord 0 4.0 mm separately 036 603 Max. vacuum Number of suction points L mm B mm H mm Weight g 001 93 1 78 78 40 600 F h j u- a A u- 036 603 Adapter plate aluminium Suitable for surface-mounted block 7810ABX Advantage The good coefficient of friction offers particularly favourable resistance to the resulting displacement forces during finishing Milling down to 2 mm deep in the adapter mat is no problem If the same contours are always applied the adapter mat can be reused any number of times since they do not suffer any wear 036 603. Dimension Material thickness Weight mm m m 0 g 036 603 Adapter plate rubber Suitable for surface-mounted block 7810ABX Advantage The adapter plate can be milled down to 2 mm (millings on both sides) Preferred applications are the finishing of thin sheets foils PCBs and even paper 036 603. Dimension Material thickness Weight mm 01 mm g 003 78 x 78 60 036 604 Rotary vane vacuum pump 7800VPX Included in scope of supply suction-side fine-mesh filter oil mist separator reversing valve for coarse or fine vacuum operation anti-vibration buffer initial oil fill without gas ballast Application If compressed air is present where the vacuum clamping plate is used we recommend using the AMF rotary vane vacuum pump. It ensures reliable continuous operation of the clamping plates used Due to its small design the pump can be attached directly to your machine On request other sizes and suction performances are available on request Suction Noise level dB Weight kg 036 604. Vacuum performance m3 h Lubrication Motor rating V Hz Code class operation 001 99 15 230 50 59 54 100 19 002 78 x 78 10 4 NORGAU 371 Clamping Tools 036 603
