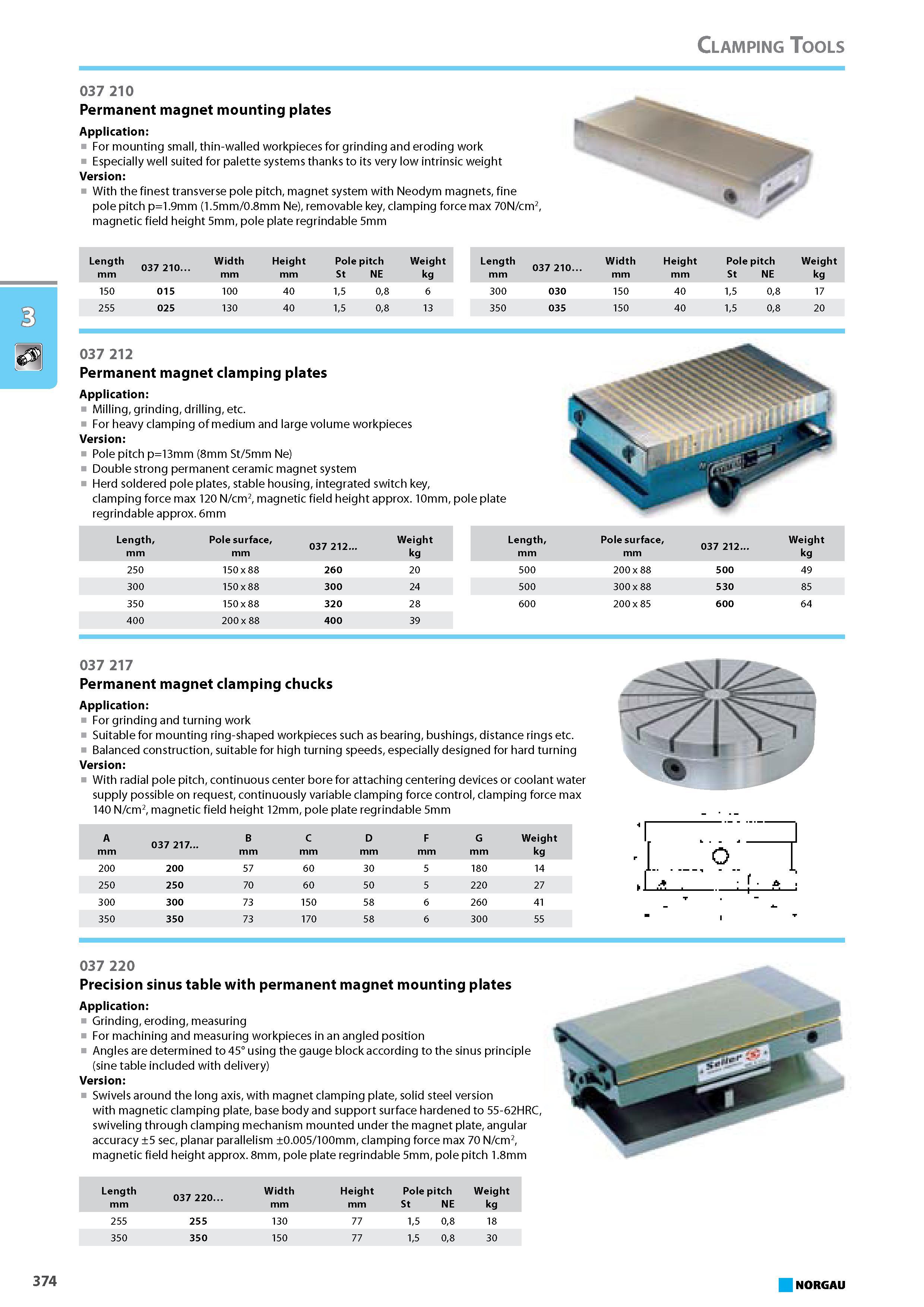

Permanent magnet mounting plates Application For mounting small thin-walled workpieces for grinding and eroding work Especially well suited for palette systems thanks

Permanent magnet mounting plates Application For mounting small thin-walled workpieces for grinding and eroding work Especially well suited for palette systems thanks to its very low intrinsic weight Version With the finest transverse pole pitch magnet system with Neodym magnets fine pole pitch p1.9mm (1.5mm 0.8mm Ne) removable key clamping force max 70N cm2 magnetic field height 5mm pole plate regrindable 5mm Length mm 037 210 Width mm Height mm Pole pitch St NE Weight kg Length mm 037 210. Width mm Height mm Pole pitch St NE Weight kg 150 015 100 40 15 08 6 300 030 150 40 15 08 17 255 025 130 40 15 08 13 350 035 150 40 15 08 20 037 212 Permanent magnet clamping plates Application Milling grinding drilling etc. For heavy clamping of medium and large volume workpieces Version Pole pitch p13mm (8mm St 5mm Ne) Double strong permanent ceramic magnet system Herd soldered pole plates stable housing integrated switch key clamping force max 120 N cm2 magnetic field height approx. 10mm pole plate regrindable approx. 6mm Length mm Pole surface mm 037 212 Weight kg Length mm Pole surface mm 037 212 Weight kg 250 150 x 88 260 20 500 200 x 88 500 49 300 150 x 88 300 24 500 300 x 88 530 85 350 150 x 88 320 28 600 200 x 85 600 64 400 200 x 88 400 39 037 217 Permanent magnet clamping chucks Application For grinding and turning work Suitable for mounting ring-shaped workpieces such as bearing bushings distance rings etc. Balanced construction suitable for high turning speeds especially designed for hard turning Version With radial pole pitch continuous center bore for attaching centering devices or coolant water supply possible on request continuously variable clamping force control clamping force max 140 N cm2 magnetic field height 12mm pole plate regrindable 5mm A mm 037 217 B mm C mm D mm F mm G mm Weight kg 200 200 57 60 30 5 180 14 250 250 70 60 50 5 220 27 300 300 73 150 58 6 260 41 350 350 73 170 58 6 300 55 037 220 Precision sinus table with permanent magnet mounting plates Application Grinding eroding measuring For machining and measuring workpieces in an angled position Angles are determined to 45 using the gauge block according to the sinus principle (sine table included with delivery) Version Swivels around the long axis with magnet clamping plate solid steel version with magnetic clamping plate base body and support surface hardened to 55-62HRC swiveling through clamping mechanism mounted under the magnet plate angular accuracy 5 sec planar parallelism 0.005 100mm clamping force max 70 N cm2 magnetic field height approx. 8mm pole plate regrindable 5mm pole pitch 1.8mm Length mm 037 220. Width mm Height mm Pole pitch St NE Weight kg 255 255 130 77 15 08 18 350 350 150 77 15 08 30 374 NORGAU Clamping Tools 037 210
