Adapter mat rubber 7800AMGX Application The sealing cord is placed in the grid of the vacuum clamping plate It goes up to the end of the area to be worked on in the wo

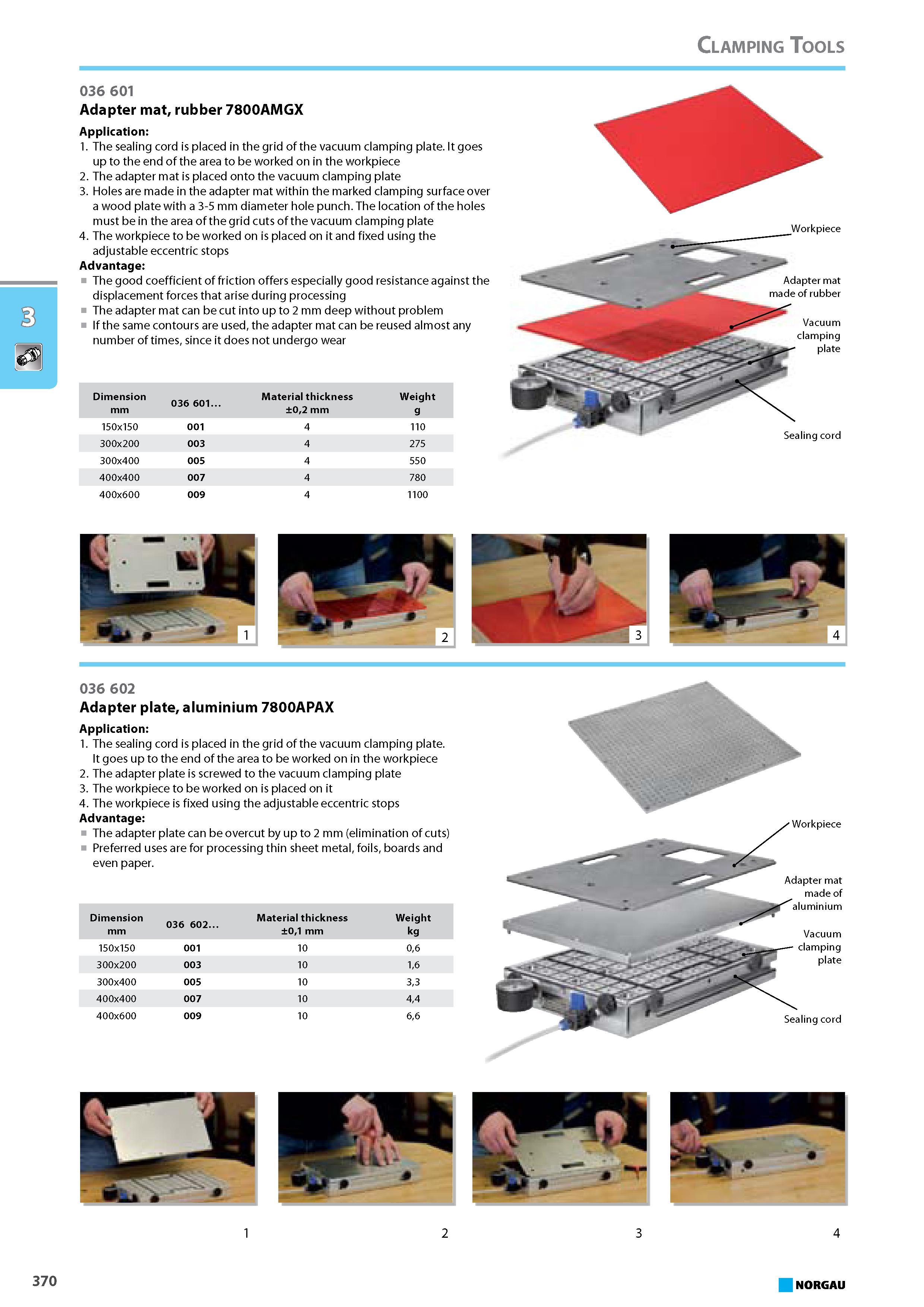

Adapter mat rubber 7800AMGX Application The sealing cord is placed in the grid of the vacuum clamping plate It goes up to the end of the area to be worked on in the workpiece The adapter mat is placed onto the vacuum clamping plate 3. Holes are made in the adapter mat within the marked clamping surface over a wood plate with a 3-5 mm diameter hole punch. The location of the holes must be in the area of the grid cuts of the vacuum clamping plate 4. The workpiece to be worked on is placed on it and fixed using the adjustable eccentric stops Advantage The good coefficient of friction offers especially good resistance against the displacement forces that arise during processing The adapter mat can be cut into up to 2 mm deep without problem If the same contours are used the adapter mat can be reused almost any number of times since it does not undergo wear Dimension mm 036 601 Material thickness 02 mm Weight g 150x150 001 4 110 300x200 003 4 275 300x400 005 4 550 400x400 007 4 780 400x600 009 4 1100 Workpiece Adapter mat made of rubber Vacuum clamping plate Sealing cord 036 602 Adapter plate aluminium 7800APAX Application 1. The sealing cord is placed in the grid of the vacuum clamping plate. It goes up to the end of the area to be worked on in the workpiece 2. The adapter plate is screwed to the vacuum clamping plate 3. The workpiece to be worked on is placed on it 4. The workpiece is fixed using the adjustable eccentric stops Advantage The adapter plate can be overcut by up to 2 mm (elimination of cuts) Preferred uses are for processing thin sheet metal foils boards and even paper. Dimension mm 036 602. Material thickness 01 mm Weight kg 150x150 001 10 06 300x200 003 10 16 300x400 005 10 33 400x400 007 10 44 400x600 009 10 66 Sealing cord 370 NORGAU Clamping Tools 036 601
