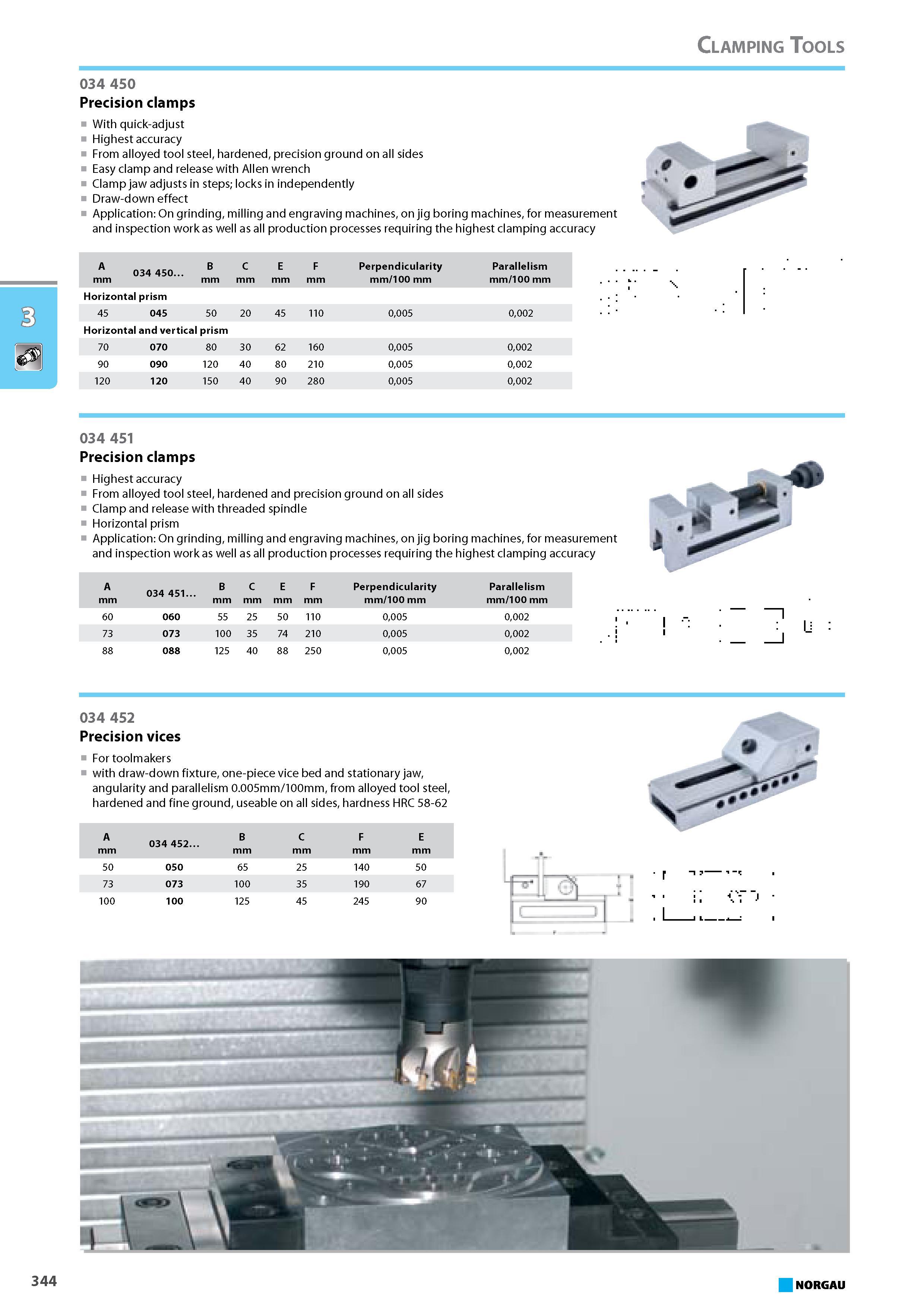

Precision clamps With quick-adjust Highest accuracy From alloyed tool steel hardened precision ground on all sides Easy clamp and release with Allen wrench Clamp jaw a

Precision clamps With quick-adjust Highest accuracy From alloyed tool steel hardened precision ground on all sides Easy clamp and release with Allen wrench Clamp jaw adjusts in steps locks in independently Draw-down effect Application On grinding milling and engraving machines on jig boring machines for measurement and inspection work as well as all production processes requiring the highest clamping accuracy A 034 450 B mm C mm E mm F mm Perpendicularity mm 100 mm Parallelism mm 100 mm Horizontal prism 45 045 50 20 45 110 0005 0002 Horizontal and vertical prism 70 070 80 30 62 160 0005 0002 90 090 120 40 80 210 0005 0002 120 120 150 40 90 280 0005 0002 034 451 Precision clamps Highest accuracy From alloyed tool steel hardened and precision ground on all sides Clamp and release with threaded spindle Horizontal prism Application On grinding milling and engraving machines on jig boring machines for measurement and inspection work as well as all production processes requiring the highest clamping accuracy A mm 034 451. B mm C mm E mm F mm Perpendicularity mm 100 mm Parallelism mm 100 mm 60 060 55 25 50 110 0005 0002 73 073 100 35 74 210 0005 0002 88 088 125 40 88 250 0005 0002 034 452 Precision vices For toolmakers with draw-down fixture one-piece vice bed and stationary jaw angularity and parallelism 0.005mm 100mm from alloyed tool steel hardened and fine ground useable on all sides hardness HRC 58-62 A mm 034 452. B mm C mm F mm E mm 50 050 65 25 140 50 73 073 100 35 190 67 100 100 125 45 245 90 344 NORGAU Clamping Tools 034 450
