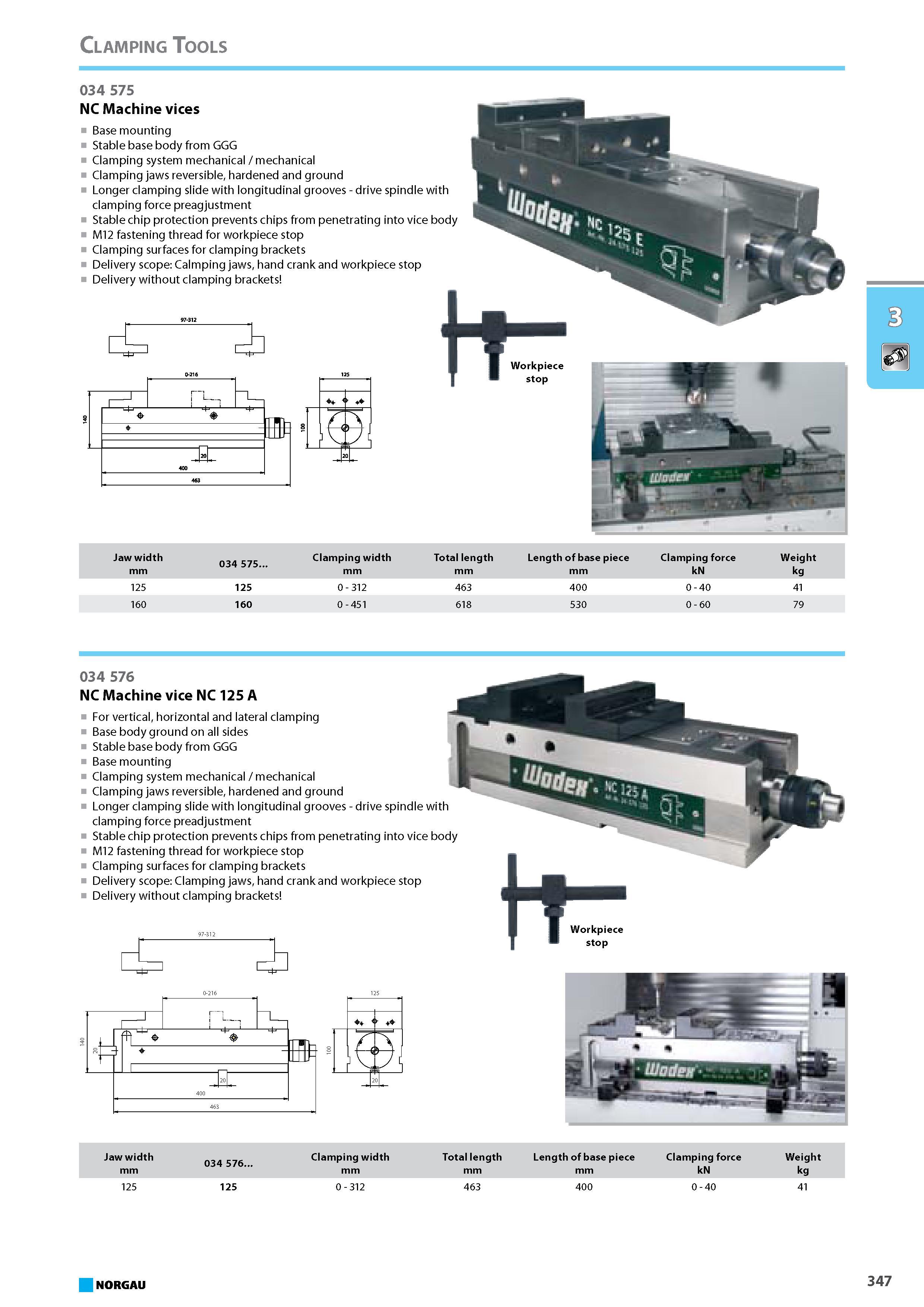

NC Machine vices Base mounting Stable base body from GGG Clamping system mechanical mechanical Clamping jaws reversible hardened and ground Longer clamping slide with

NC Machine vices Base mounting Stable base body from GGG Clamping system mechanical mechanical Clamping jaws reversible hardened and ground Longer clamping slide with longitudinal grooves - drive spindle with clamping force preagjustment Stable chip protection prevents chips from penetrating into vice body M12 fastening thread for workpiece stop Clamping surfaces for clamping brackets Delivery scope Calmping jaws hand crank and workpiece stop Delivery without clamping brackets Jaw width mm 034 575 Clamping width mm Total length mm Length of base piece mm Clamping force kN Weight kg 125 125 0 - 312 463 400 0 - 40 41 160 160 0 - 451 618 530 0 - 60 79 034 576 NC Machine vice NC 125 A For vertical horizontal and lateral clamping Base body ground on all sides Stable base body from GGG Base mounting Clamping system mechanical mechanical Clamping jaws reversible hardened and ground Longer clamping slide with longitudinal grooves - drive spindle with clamping force preadjustment Stable chip protection prevents chips from penetrating into vice body M12 fastening thread for workpiece stop Clamping surfaces for clamping brackets Delivery scope Clamping jaws hand crank and workpiece stop Delivery without clamping brackets w nr Jaw width 034 576 Clamping width Total length Length of base piece Clamping force Weight mm kN kg 125 125 0 - 312 463 400 0 - 40 41 400 463 NORGAU 347 Clamping Tools 034 575
