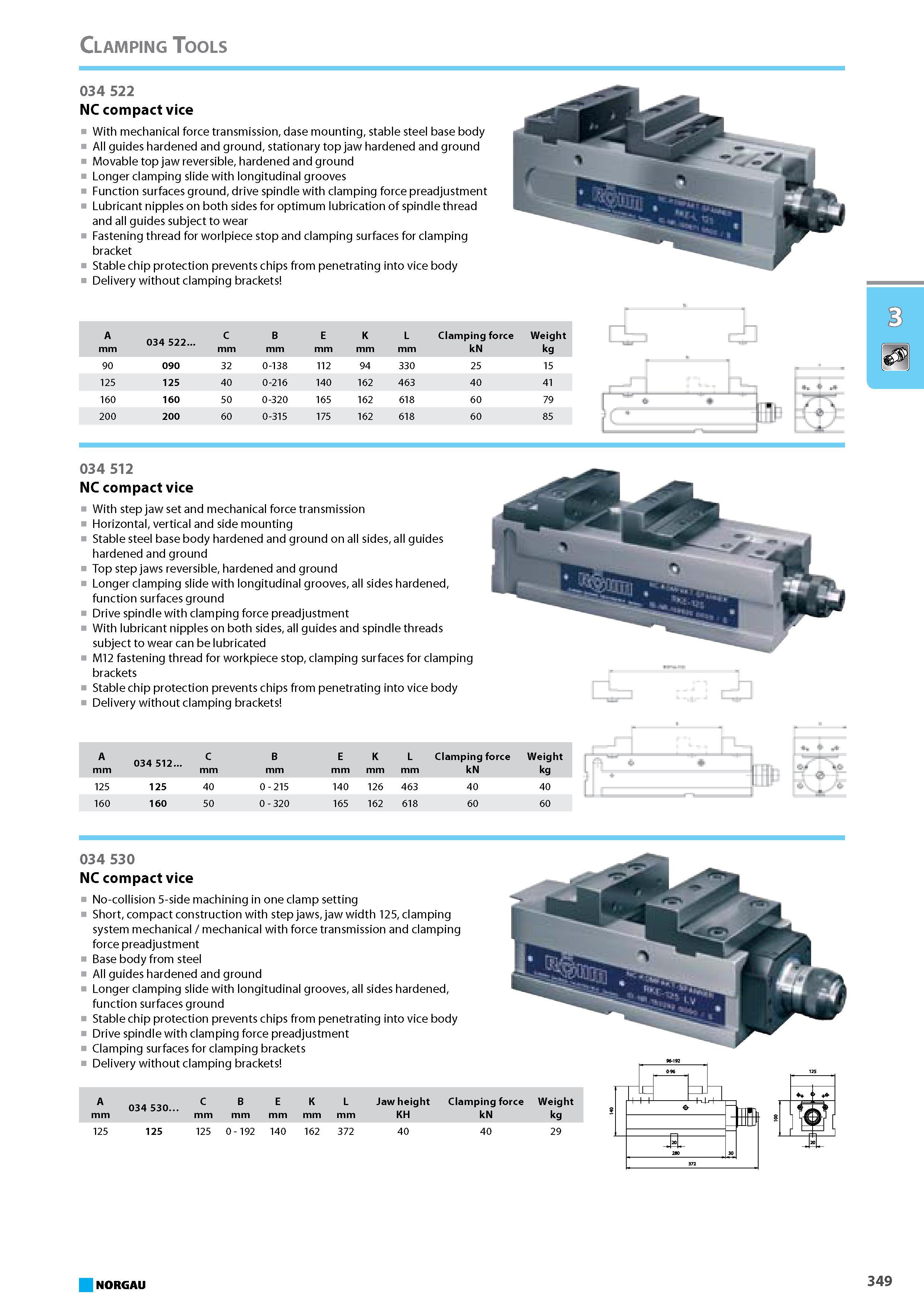

NC compact vice With mechanical force transmission dase mounting stable steel base body All guides hardened and ground stationary top jaw hardened and ground Movable top jaw reversible hardened and ground Longer clamping slide with longitudinal grooves Function surfaces ground drive spindle with clamping force preadjustment Lubricant nipples on both sides for optimum lubrication of spindle thread and all guides subject to wear Fastening thread for worlpiece stop and clamping surfaces for clamping bracket Stable chip protection prevents chips from penetrating into vice body Delivery without clamping brackets A mm 034 522 C mm B mm E mm K mm L mm Clamping force kN Weight kg 90 090 32 0-138 112 94 330 25 15 125 125 40 0-216 140 162 463 40 41 160 160 50 0-320 165 162 618 60 79 200 200 60 0-315 175 162 618 60 85 034 512 NC compact vice With step jaw set and mechanical force transmission Horizontal vertical and side mounting Stable steel base body hardened and ground on all sides all guides hardened and ground Top step jaws reversible hardened and ground Longer clamping slide with longitudinal grooves all sides hardened function surfaces ground Drive spindle with clamping force preadjustment With lubricant nipples on both sides all guides and spindle threads subject to wear can be lubricated M12 fastening thread for workpiece stop clamping surfaces for clamping brackets Stable chip protection prevents chips from penetrating into vice body Delivery without clamping brackets A mm 034 512 C mm B mm E mm K mm L mm Clamping force kN Weight kg 125 125 40 0 - 215 140 126 463 40 40 160 160 50 0 - 320 165 162 618 60 60 034 530 NC compact vice No-collision 5-side machining in one clamp setting Short compact construction with step jaws jaw width 125 clamping system mechanical mechanical with force transmission and clamping force preadjustment Base body from steel All guides hardened and ground Longer clamping slide with longitudinal grooves all sides hardened function surfaces ground Stable chip protection prevents chips from penetrating into vice body Drive spindle with clamping force preadjustment Clamping surfaces for clamping brackets Delivery without clamping brackets A mm 034 530 C mm B mm E mm K mm L mm Jaw height KH Clamping force kN Weight kg 125 0 - 192 140 125 40 40 29 NORGAU 349 Clamping Tools 034 522
