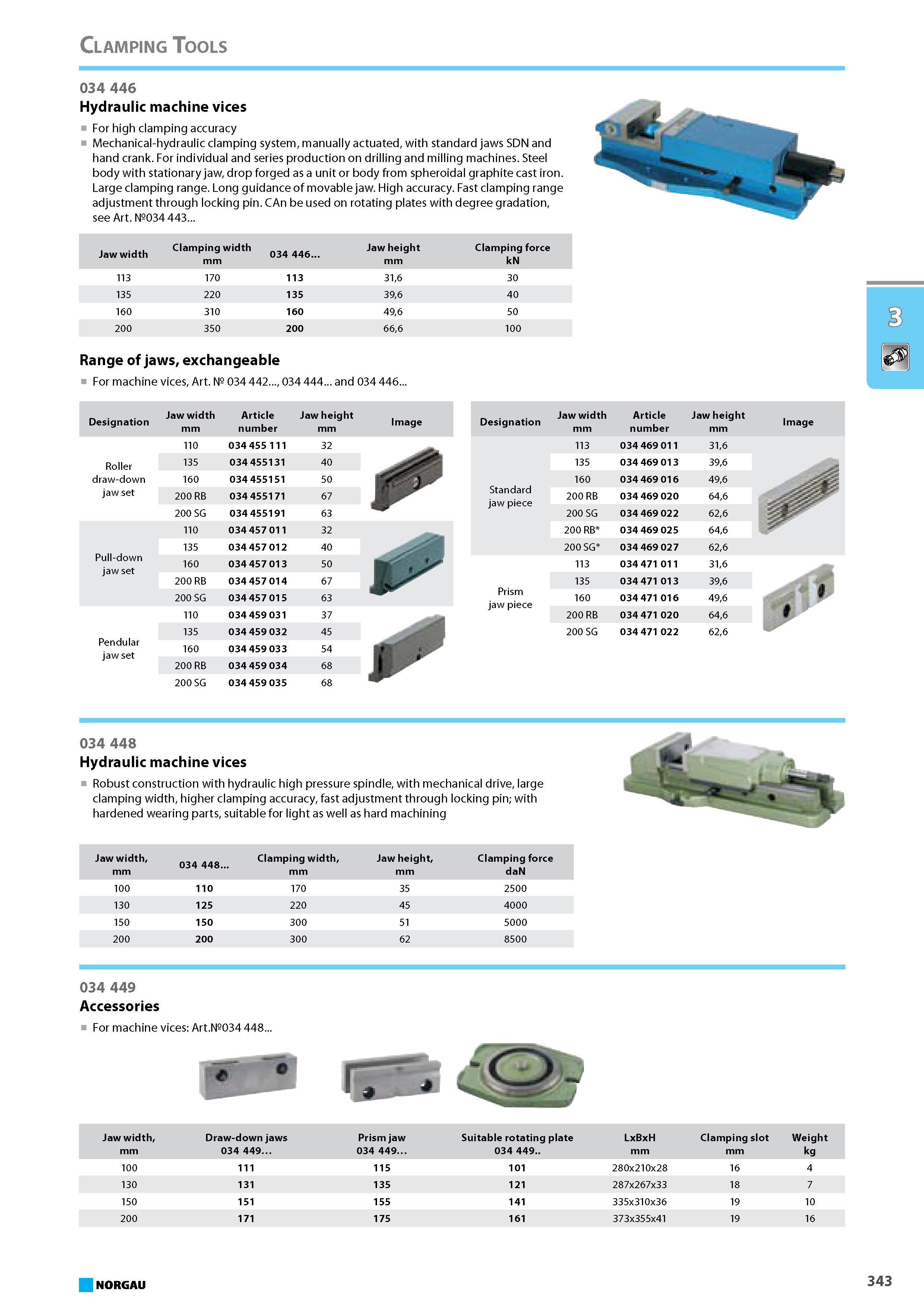

Hydraulic machine vices For high clamping accuracy Mechanical-hydraulic clamping system manually actuated with standard jaws SDN and hand crank. For individual and ser

Hydraulic machine vices For high clamping accuracy Mechanical-hydraulic clamping system manually actuated with standard jaws SDN and hand crank. For individual and series production on drilling and milling machines. Steel body with stationary jaw drop forged as a unit or body from spheroidal graphite cast iron. Large clamping range. Long guidance of movable jaw. High accuracy. Fast clamping range adjustment through locking pin. CAn be used on rotating plates with degree gradation see Art. W034 443 Range of jaws exchangeable For machine vices Art. W 034 442 034 444 and 034 446 Jaw width Clamping width mm 034 446 Jaw height mm Clamping force kN 113 170 113 316 30 135 220 135 396 40 160 310 160 496 50 200 350 200 666 100 Designation Jaw width mm Article number Jaw height mm Image Roller draw-down jaw set Pull-down jaw set Pendular jaw set 110 034 455 111 32 135 034455131 40 160 034 455151 50 200 RB 034 455171 67 200 SG 034 455191 63 110 034 457 011 32 135 034 457 012 40 160 034 457 013 50 200 RB 034 457 014 67 200 SG 034 457 015 63 110 034 459 031 37 135 034 459 032 45 160 034 459 033 54 200 RB 034 459 034 68 200 SG 034 459 035 68 Designation Standard jaw piece Prism jaw piece Jaw width mm Article number Jaw height mm 113 034 469 011 316 135 034 469 013 396 160 034 469 016 496 200 RB 034 469 020 646 200 SG 034 469 022 626 200 RB 034 469 025 646 200 SG 034 469 027 626 113 034 471 011 316 135 034 471 013 396 160 034 471 016 496 200 RB 034 471 020 646 200 SG 034 471 022 626 Image 034 448 Hydraulic machine vices Robust construction with hydraulic high pressure spindle with mechanical drive large clamping width higher clamping accuracy fast adjustment through locking pin with hardened wearing parts suitable for light as well as hard machining Jaw width mm 034 448 Clamping width mm Jaw height mm Clamping force daN 100 110 170 35 2500 130 125 220 45 4000 150 150 300 51 5000 200 200 300 62 8500 034 449 Accessories For machine vices Art.W034 448 Jaw width mm Draw-down jaws 034 449. Prism jaw 034 449. Suitable rotating plate 034 449 LxBxH mm Clamping slot mm Weight kg 100 111 115 101 280x210x28 16 4 130 131 135 121 287x267x33 18 7 150 151 155 141 335x310x36 19 10 200 171 175 161 373x355x41 19 16 NORGAU 343 Clamping Tools 034 446
