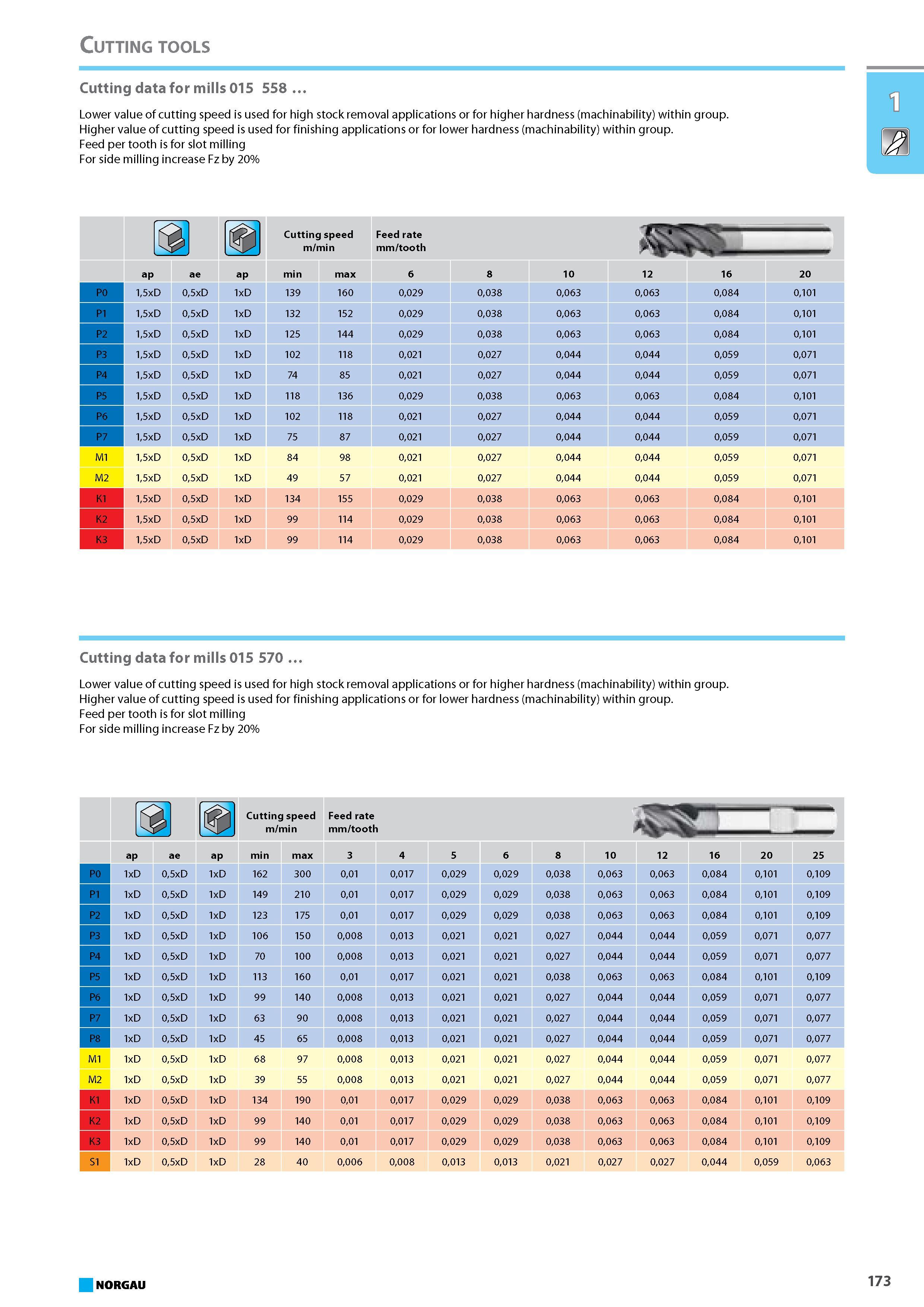

Cutting data for mills 015 558 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% 1 m 0 Cutting speed m/min ap ae ap min max 6 8 10 12 16 20 P0 15xD 05xD 1xD 139 160 0029 0038 0063 0063 0084 0101 P1 15xD 05xD 1xD 132 152 0029 0038 0063 0063 0084 0101 P2 15xD 05xD 1xD 125 144 0029 0038 0063 0063 0084 0101 P3 15xD 05xD 1xD 102 118 0021 0027 0044 0044 0059 0071 P4 15xD 05xD 1xD 74 85 0021 0027 0044 0044 0059 0071 P5 15xD 05xD 1xD 118 136 0029 0038 0063 0063 0084 0101 P6 15xD 05xD 1xD 102 118 0021 0027 0044 0044 0059 0071 P7 15xD 05xD 1xD 75 87 0021 0027 0044 0044 0059 0071 M1 15xD 05xD 1xD 84 98 0021 0027 0044 0044 0059 0071 M2 15xD 05xD 1xD 49 57 0021 0027 0044 0044 0059 0071 K1 15xD 05xD 1xD 134 155 0029 0038 0063 0063 0084 0101 K2 15xD 05xD 1xD 99 114 0029 0038 0063 0063 0084 0101 K3 15xD 05xD 1xD 99 114 0029 0038 0063 0063 0084 0101 Cutting data for mills 015 570 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% v ft Cutting speed m/min Feed rate mm tooth ap ae ap min max 3 4 5 6 8 10 12 16 20 25 P0 1xD 05xD 1xD 162 300 001 0017 0029 0029 0038 0063 0063 0084 0101 0109 P1 1xD 05xD 1xD 149 210 001 0017 0029 0029 0038 0063 0063 0084 0101 0109 P2 1xD 05xD 1xD 123 175 001 0017 0029 0029 0038 0063 0063 0084 0101 0109 P3 1xD 05xD 1xD 106 150 0008 0013 0021 0021 0027 0044 0044 0059 0071 0077 P4 1xD 05xD 1xD 70 100 0008 0013 0021 0021 0027 0044 0044 0059 0071 0077 P5 1xD 05xD 1xD 113 160 001 0017 0021 0021 0038 0063 0063 0084 0101 0109 P6 1xD 05xD 1xD 99 140 0008 0013 0021 0021 0027 0044 0044 0059 0071 0077 P7 1xD 05xD 1xD 63 90 0008 0013 0021 0021 0027 0044 0044 0059 0071 0077 P8 1xD 05xD 1xD 45 65 0008 0013 0021 0021 0027 0044 0044 0059 0071 0077 M1 1xD 05xD 1xD 68 97 0008 0013 0021 0021 0027 0044 0044 0059 0071 0077 M2 1xD 05xD 1xD 39 55 0008 0013 0021 0021 0027 0044 0044 0059 0071 0077 K1 1xD 05xD 1xD 134 190 001 0017 0029 0029 0038 0063 0063 0084 0101 0109 K2 1xD 05xD 1xD 99 140 001 0017 0029 0029 0038 0063 0063 0084 0101 0109 K3 1xD 05xD 1xD 99 140 001 0017 0029 0029 0038 0063 0063 0084 0101 0109 S1 1xD 05xD 1xD 28 40 0006 0008 0013 0013 0021 0027 0027 0044 0059 0063 NORGAU 173
