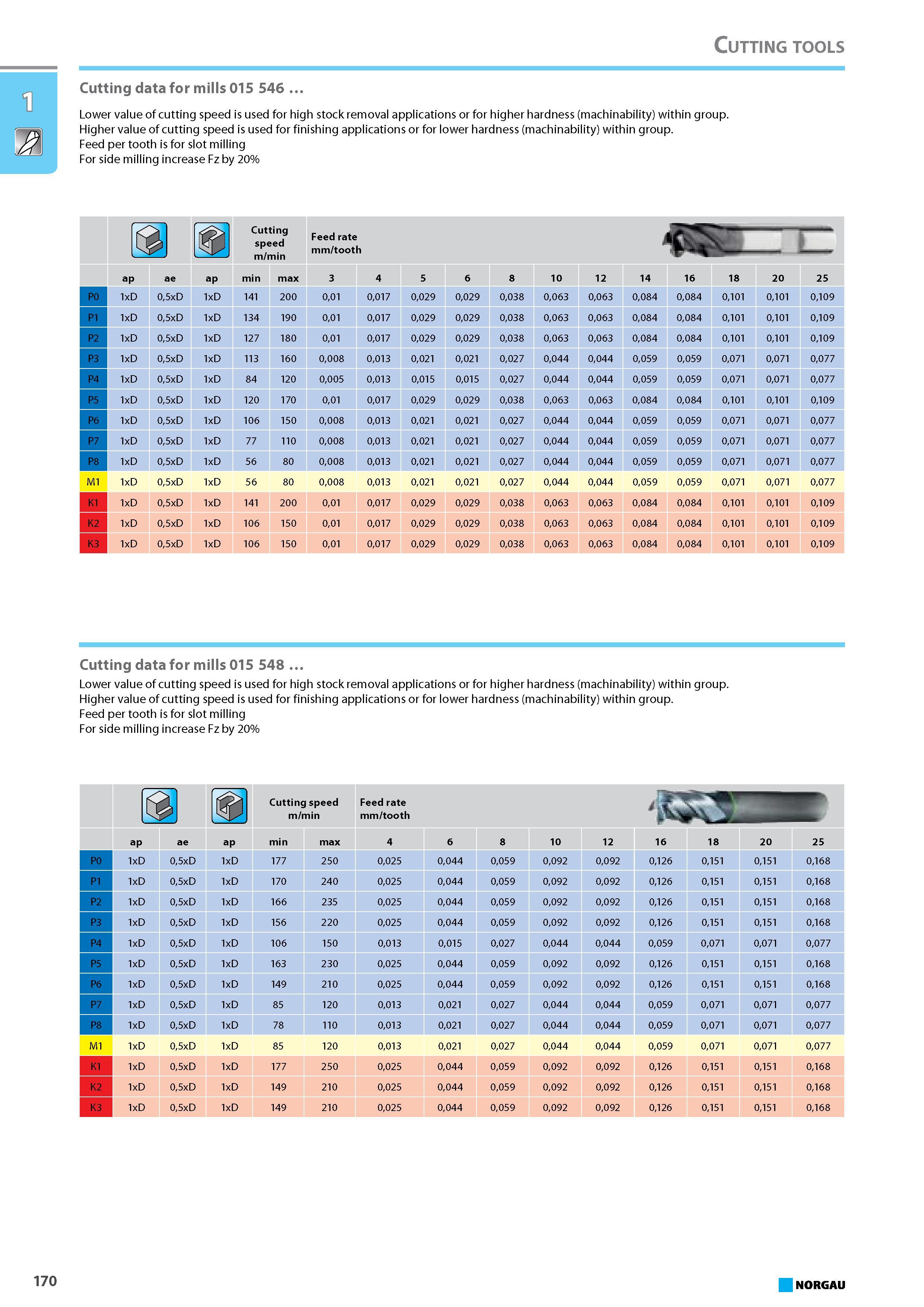

Cutting data for mills 015 546 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% Cutting speed m/min Feed rate mm tooth (A 0 N Z j C ap ae ap min max 3 4 5 6 8 10 12 14 16 18 20 25 P0 1xD 05xD 1xD 141 200 001 0017 0029 0029 0038 0063 0063 0084 0084 0101 0101 0109 P1 1xD 05xD 1xD 134 190 001 0017 0029 0029 0038 0063 0063 0084 0084 0101 0101 0109 P2 1xD 05xD 1xD 127 180 001 0017 0029 0029 0038 0063 0063 0084 0084 0101 0101 0109 P3 1xD 05xD 1xD 113 160 0008 0013 0021 0021 0027 0044 0044 0059 0059 0071 0071 0077 P4 1xD 05xD 1xD 84 120 0005 0013 0015 0015 0027 0044 0044 0059 0059 0071 0071 0077 P5 1xD 05xD 1xD 120 170 001 0017 0029 0029 0038 0063 0063 0084 0084 0101 0101 0109 P6 1xD 05xD 1xD 106 150 0008 0013 0021 0021 0027 0044 0044 0059 0059 0071 0071 0077 P7 1xD 05xD 1xD 77 110 0008 0013 0021 0021 0027 0044 0044 0059 0059 0071 0071 0077 P8 1xD 05xD 1xD 56 80 0008 0013 0021 0021 0027 0044 0044 0059 0059 0071 0071 0077 M1 1xD 05xD 1xD 56 80 0008 0013 0021 0021 0027 0044 0044 0059 0059 0071 0071 0077 K1 1xD 05xD 1xD 141 200 001 0017 0029 0029 0038 0063 0063 0084 0084 0101 0101 0109 K2 1xD 05xD 1xD 106 150 001 0017 0029 0029 0038 0063 0063 0084 0084 0101 0101 0109 K3 1xD 05xD 1xD 106 150 001 0017 0029 0029 0038 0063 0063 0084 0084 0101 0101 0109 Cutting data for mills 015 548 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% Cutting speed m/min mm oo h ap ae ap min max 4 6 8 10 12 16 18 20 25 P0 1xD 05xD 1xD 177 250 0025 0044 0059 0092 0092 0126 0151 0151 0168 P1 1xD 05xD 1xD 170 240 0025 0044 0059 0092 0092 0126 0151 0151 0168 P2 1xD 05xD 1xD 166 235 0025 0044 0059 0092 0092 0126 0151 0151 0168 P3 1xD 05xD 1xD 156 220 0025 0044 0059 0092 0092 0126 0151 0151 0168 P4 1xD 05xD 1xD 106 150 0013 0015 0027 0044 0044 0059 0071 0071 0077 P5 1xD 05xD 1xD 163 230 0025 0044 0059 0092 0092 0126 0151 0151 0168 P6 1xD 05xD 1xD 149 210 0025 0044 0059 0092 0092 0126 0151 0151 0168 P7 1xD 05xD 1xD 85 120 0013 0021 0027 0044 0044 0059 0071 0071 0077 P8 1xD 05xD 1xD 78 110 0013 0021 0027 0044 0044 0059 0071 0071 0077 M1 1xD 05xD 1xD 85 120 0013 0021 0027 0044 0044 0059 0071 0071 0077 K1 1xD 05xD 1xD 177 250 0025 0044 0059 0092 0092 0126 0151 0151 0168 K2 1xD 05xD 1xD 149 210 0025 0044 0059 0092 0092 0126 0151 0151 0168 K3 1xD 05xD 1xD 149 210 0025 0044 0059 0092 0092 0126 0151 0151 0168 170 NORGAU
