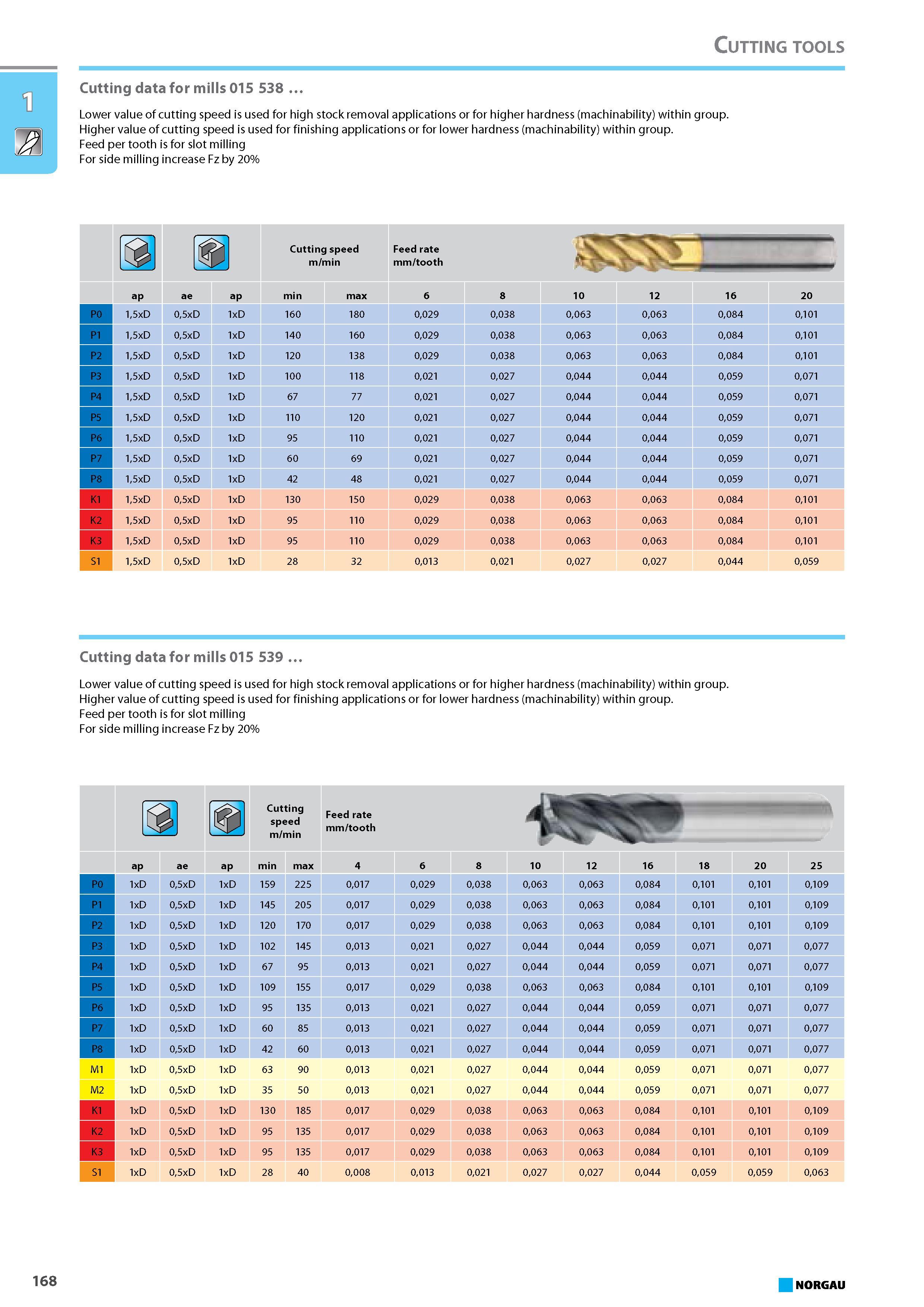

Cutting tools Cutting data for mills 015 538 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% Cutting speed m/min Feed rate mm tooth ap ae ap min max 6 8 10 12 16 20 P0 15xD 05xD 1xD 160 180 0029 0038 0063 0063 0084 0101 P1 15xD 05xD 1xD 140 160 0029 0038 0063 0063 0084 0101 P2 15xD 05xD 1xD 120 138 0029 0038 0063 0063 0084 0101 P3 15xD 05xD 1xD 100 118 0021 0027 0044 0044 0059 0071 P4 15xD 05xD 1xD 67 77 0021 0027 0044 0044 0059 0071 P5 15xD 05xD 1xD 110 120 0021 0027 0044 0044 0059 0071 P6 15xD 05xD 1xD 95 110 0021 0027 0044 0044 0059 0071 P7 15xD 05xD 1xD 60 69 0021 0027 0044 0044 0059 0071 P8 15xD 05xD 1xD 42 48 0021 0027 0044 0044 0059 0071 K1 15xD 05xD 1xD 130 150 0029 0038 0063 0063 0084 0101 K2 15xD 05xD 1xD 95 110 0029 0038 0063 0063 0084 0101 K3 15xD 05xD 1xD 95 110 0029 0038 0063 0063 0084 0101 S1 15xD 05xD 1xD 28 32 0013 0021 0027 0027 0044 0059 Cutting data for mills 015 539 Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Feed per tooth is for slot milling For side milling increase Fz by 20% Cutting speed m/min Feed rate mm tooth fib 0 ap ae ap min max 4 6 8 10 12 16 18 20 25 P0 1xD 05xD 1xD 159 225 0017 0029 0038 0063 0063 0084 0101 0101 0109 P1 1xD 05xD 1xD 145 205 0017 0029 0038 0063 0063 0084 0101 0101 0109 P2 1xD 05xD 1xD 120 170 0017 0029 0038 0063 0063 0084 0101 0101 0109 P3 1xD 05xD 1xD 102 145 0013 0021 0027 0044 0044 0059 0071 0071 0077 P4 1xD 05xD 1xD 67 95 0013 0021 0027 0044 0044 0059 0071 0071 0077 P5 1xD 05xD 1xD 109 155 0017 0029 0038 0063 0063 0084 0101 0101 0109 P6 1xD 05xD 1xD 95 135 0013 0021 0027 0044 0044 0059 0071 0071 0077 P7 1xD 05xD 1xD 60 85 0013 0021 0027 0044 0044 0059 0071 0071 0077 P8 1xD 05xD 1xD 42 60 0013 0021 0027 0044 0044 0059 0071 0071 0077 M1 1xD 05xD 1xD 63 90 0013 0021 0027 0044 0044 0059 0071 0071 0077 M2 1xD 05xD 1xD 35 50 0013 0021 0027 0044 0044 0059 0071 0071 0077 K1 1xD 05xD 1xD 130 185 0017 0029 0038 0063 0063 0084 0101 0101 0109 K2 1xD 05xD 1xD 95 135 0017 0029 0038 0063 0063 0084 0101 0101 0109 K3 1xD 05xD 1xD 95 135 0017 0029 0038 0063 0063 0084 0101 0101 0109 S1 1xD 05xD 1xD 28 40 0008 0013 0021 0027 0027 0044 0059 0059 0063 168 NORGAU
