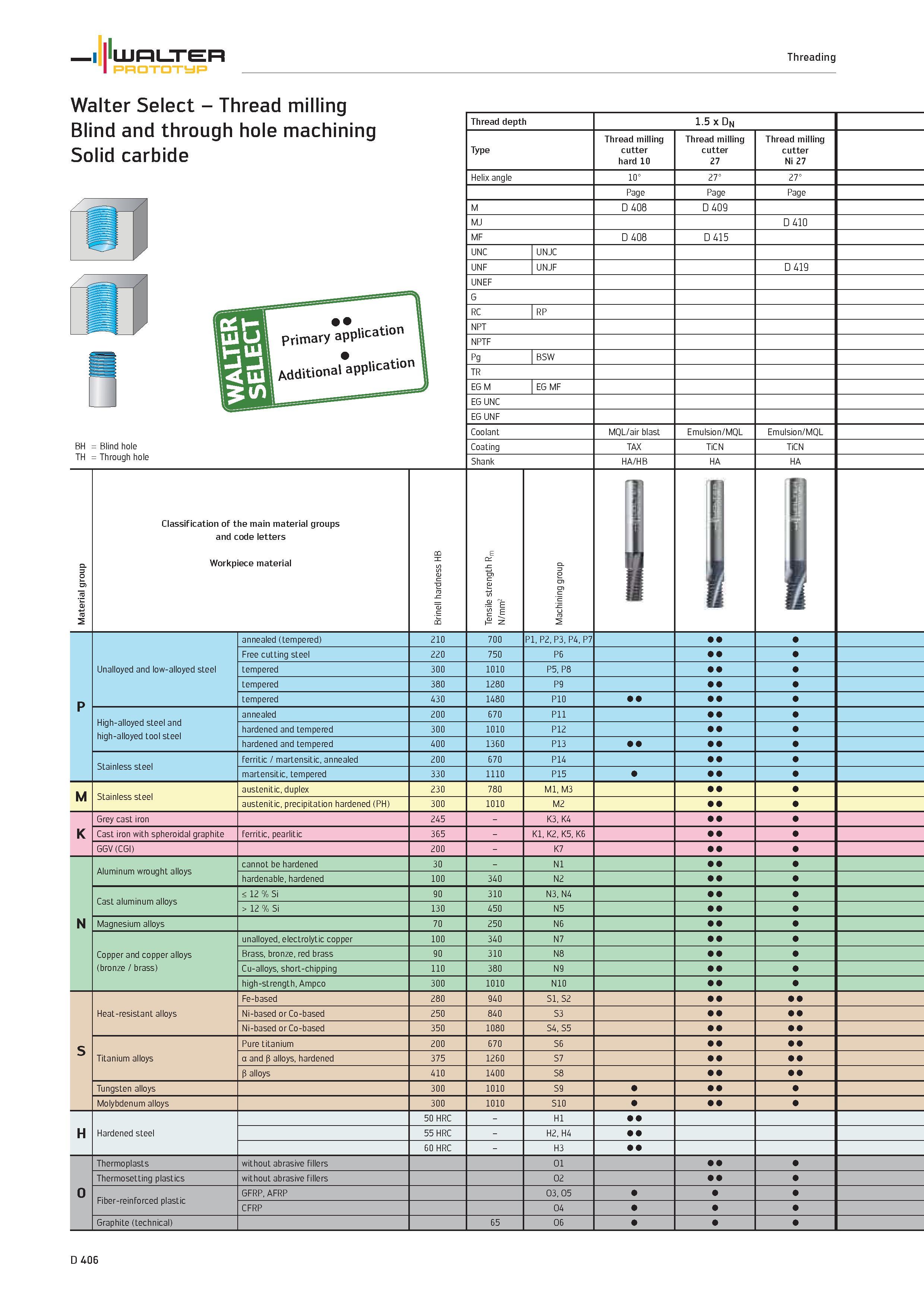

Walter Select Thread milling Blind and through hole machining Solid carbide Thread depth 1.5 x Dn Type Thread milling cutter hard 10 Thread milling cutter 27 Thread milling cutter Ni 27 Helix angle 10° 27° 27° Page X A M D 408 D 409 MJ D 410 MF D 408 D 415 UNC UNJC UNF UNJF D 419 UNEF RC RP 1 y \m HI primary application 1 NPT NPTF O Additional application Pg BSW TR EG M EG MF EG UNF BH Blind hole TH Through hole Coolant MQL/air blast Emulsion/MQL Coating TAX TiCN TiCN Shank HA/HB HA HA Material group Classification of the main material groups and code letters Workpiece material Brinell hardness HB Tensile strength Rm N/mm2 Machining group 1 p Unalloyed and low-alloyed steel annealed (tempered) 210 700 P1, P2, P3, P4, P7 Free cutting steel 220 750 P6 tempered 300 1010 P5, P8 tempered 380 1280 P9 tempered 430 1480 P10 High-alloyed steel and high-alloyed tool steel annealed 200 670 P11 hardened and tempered 300 1010 P12 hardened and tempered 400 1360 P13 Stainless steel ferritic / martensitic, annealed 200 670 P14 martensitic, tempered 330 1110 P15 M Stainless steel austenitic, duplex 230 780 M1, M3 austenitic, precipitation hardened (PH) 300 1010 M2 K Grey cast iron 245 K3, K4 Cast iron with spheroidal graphite ferritic, pearlitic 365 K1, K2, K5, K6 GGV (CGI) 200 K7 N Aluminum wrought alloys cannot be hardened 30 N1 hardenable, hardened 100 340 N2 Cast aluminum alloys < 12 % Si 90 310 N3, N4 > 12 % Si 130 450 N5 Magnesium alloys 70 250 N6 Copper and copper alloys (bronze / brass) unalloyed, electrolytic copper 100 340 N7 Brass, bronze, red brass 90 310 N8 Cu-alloys, short-chipping 110 380 N9 high-strength, Ampco 300 1010 N10 S Heat-resistant alloys Fe-based 280 940 S1, S2 Ni-based or Co-based 250 840 S3 Ni-based or Co-based 350 1080 S4, S5 Titanium alloys Pure titanium 200 670 S6 a and p alloys, hardened 375 1260 S7 P alloys 410 1400 S8 Tungsten alloys 300 1010 S9 Molybdenum alloys 300 1010 S10 H Hardened steel 50 HRC H1 55 HRC H2, H4 60 HRC H3 O Thermoplasts without abrasive fillers O1 Thermosetting plastics without abrasive fillers O2 Fiber-reinforced plastic GFRP, AFRP O3, O5 CFRP O4 Graphite (technical) 65 O6 D 406 WALTER PROTOTYP Threading
