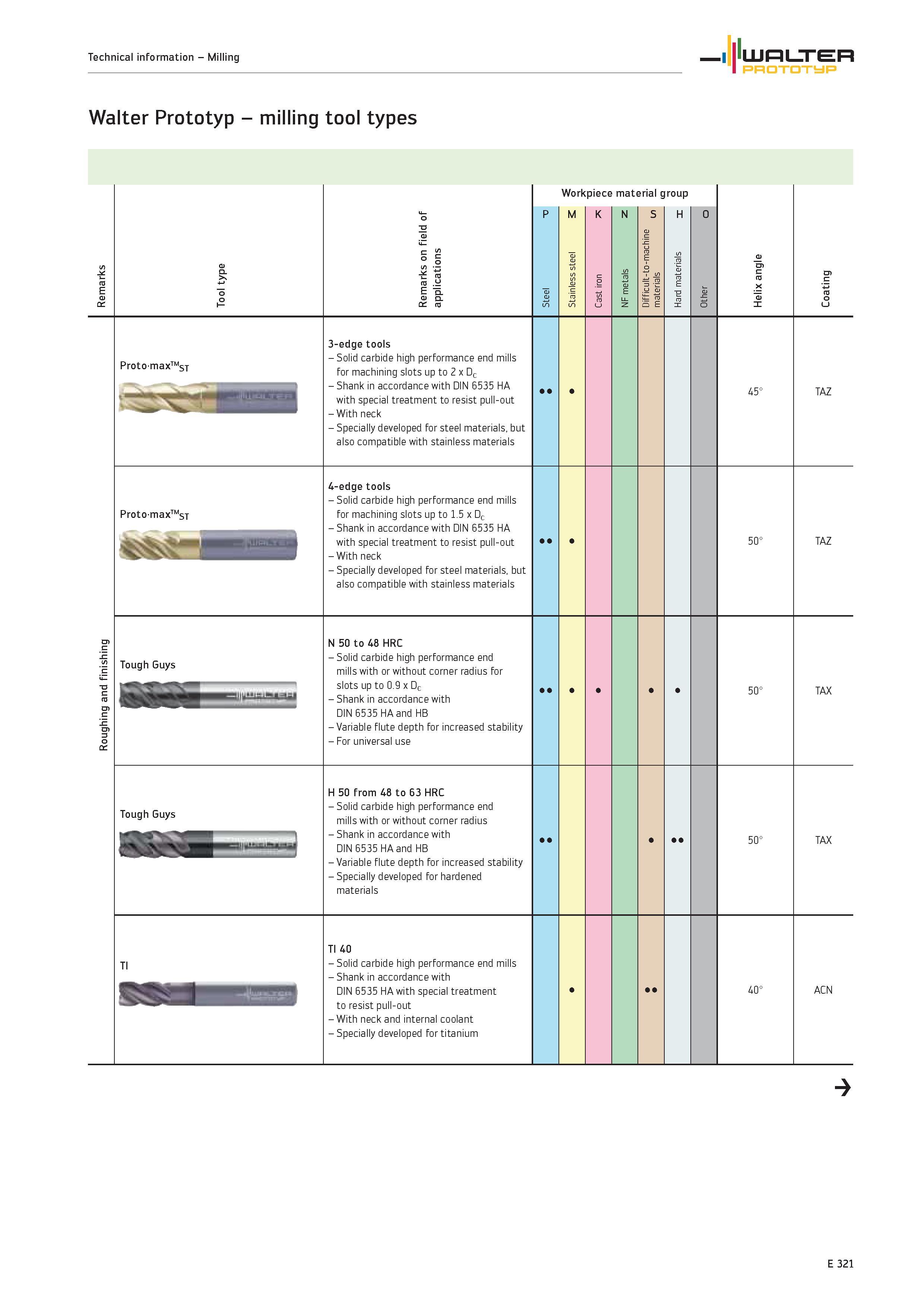

Walter Prototyp milling tool types Remarks Tool type Remarks on field of applications Steel P Stainless steel M E Hard materials h u O Other O He

Walter Prototyp milling tool types Remarks Tool type Remarks on field of applications Steel P Stainless steel M E Hard materials h u "O Other O Helix angle Coating Roughing and finishing Proto-maxTM5T 3-edge tools Solid carbide high performance end mills for machining slots up to 2 x Dc Shank in accordance with DIN 6535 HA with special treatment to resist pull-out With neck Specially developed for steel materials, but also compatible with stainless materials 45° TAZ Proto-maxTMsT 4-edge tools Solid carbide high performance end mills for machining slots up to 1.5 x Dc Shank in accordance with DIN 6535 HA with special treatment to resist pull-out With neck Specially developed for steel materials, but also compatible with stainless materials 50° TAZ Tough Guys N 50 to 48 HRC Solid carbide high performance end mills with or without corner radius for slots up to 0.9 x Dc Shank in accordance with DIN 6535 HA and HB Variable flute depth for increased stability For universal use 50° TAX Tough Guys H 50 from 48 to 63 HRC Solid carbide high performance end mills with or without corner radius Shank in accordance with DIN 6535 HA and HB Variable flute depth for increased stability Specially developed for hardened materials 50° TAX TI J hb TI 40 Solid carbide high performance end mills Shank in accordance with DIN 6535 HA with special treatment to resist pull-out With neck and internal coolant Specially developed for titanium 40° ACN E 321 Technical information Milling WALTER PROTOTYP
