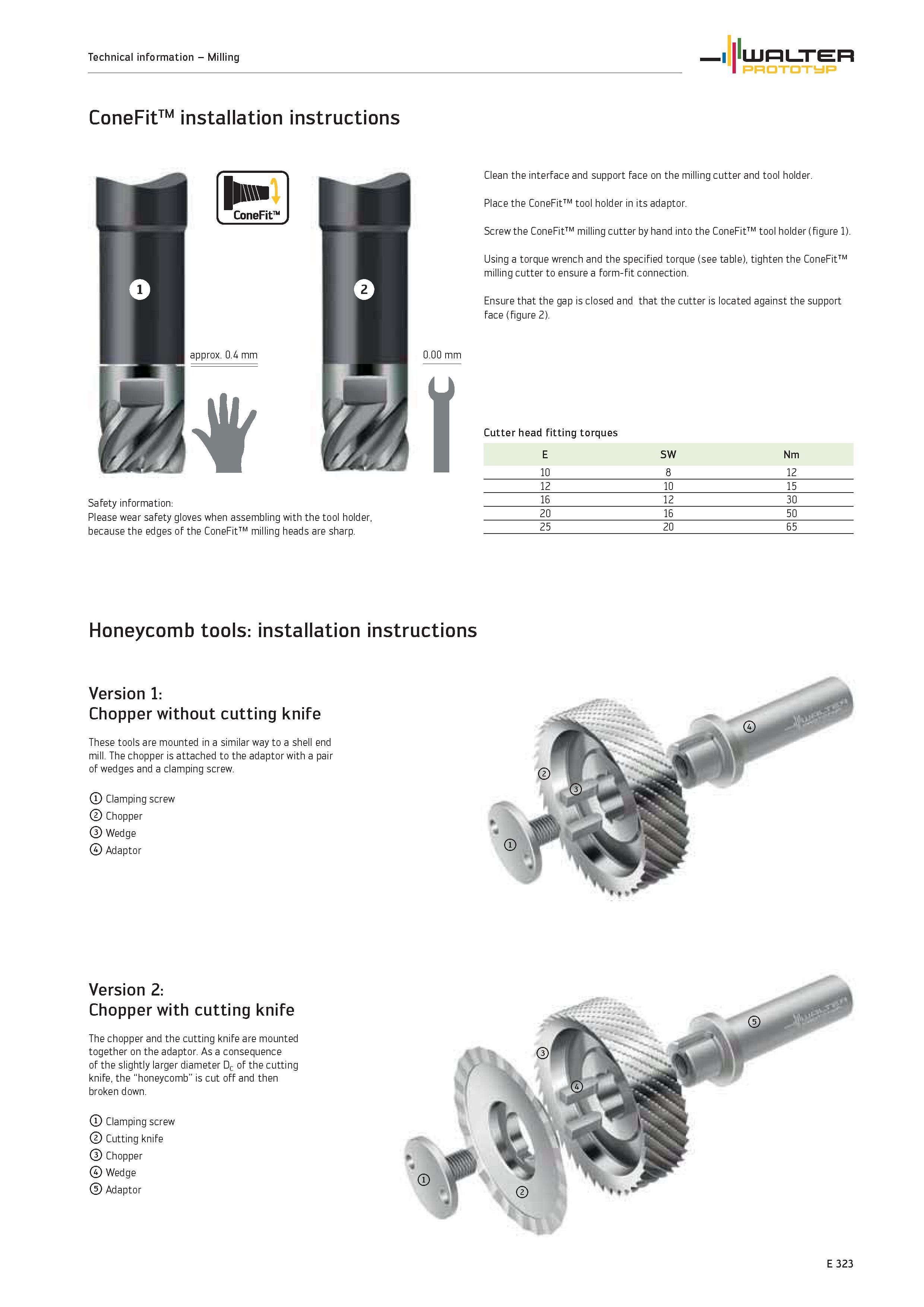

Milling WALTER Prototyp ConeFitTM installation instructions Safety information Please wear safety gloves when assembling with the tool holder, because the edges of the ConeFit milling heads are sharp. Clean the interface and support face on the milling cutter and tool holder. Place the ConeFit tool holder in its adaptor. Screw the ConeFit milling cutter by hand into the ConeFit tool holder (figure 1). Using a torque wrench and the specified torque (see table), tighten the ConeFit milling cutter to ensure a form-fit connection. Ensure that the gap is closed and that the cutter is located against the support face (figure 2). Cutter head fitting torques E SW Nm 10 8 12 12 10 15 16 12 30 20 16 50 25 20 65 Honeycomb tools installation instructions Version 1 Chopper without cutting knife These tools are mounted in a similar way to a shell end mill. The chopper is attached to the adaptor with a pair of wedges and a clamping screw. Clamping screw Chopper Wedge Adaptor Version 2 Chopper with cutting knife The chopper and the cutting knife are mounted together on the adaptor. As a consequence of the slightly larger diameter Dc of the cutting knife, the “honeycomb is cut off and then broken down. Clamping screw Cutting knife Chopper Wedge Adaptor E 323 Technical information
