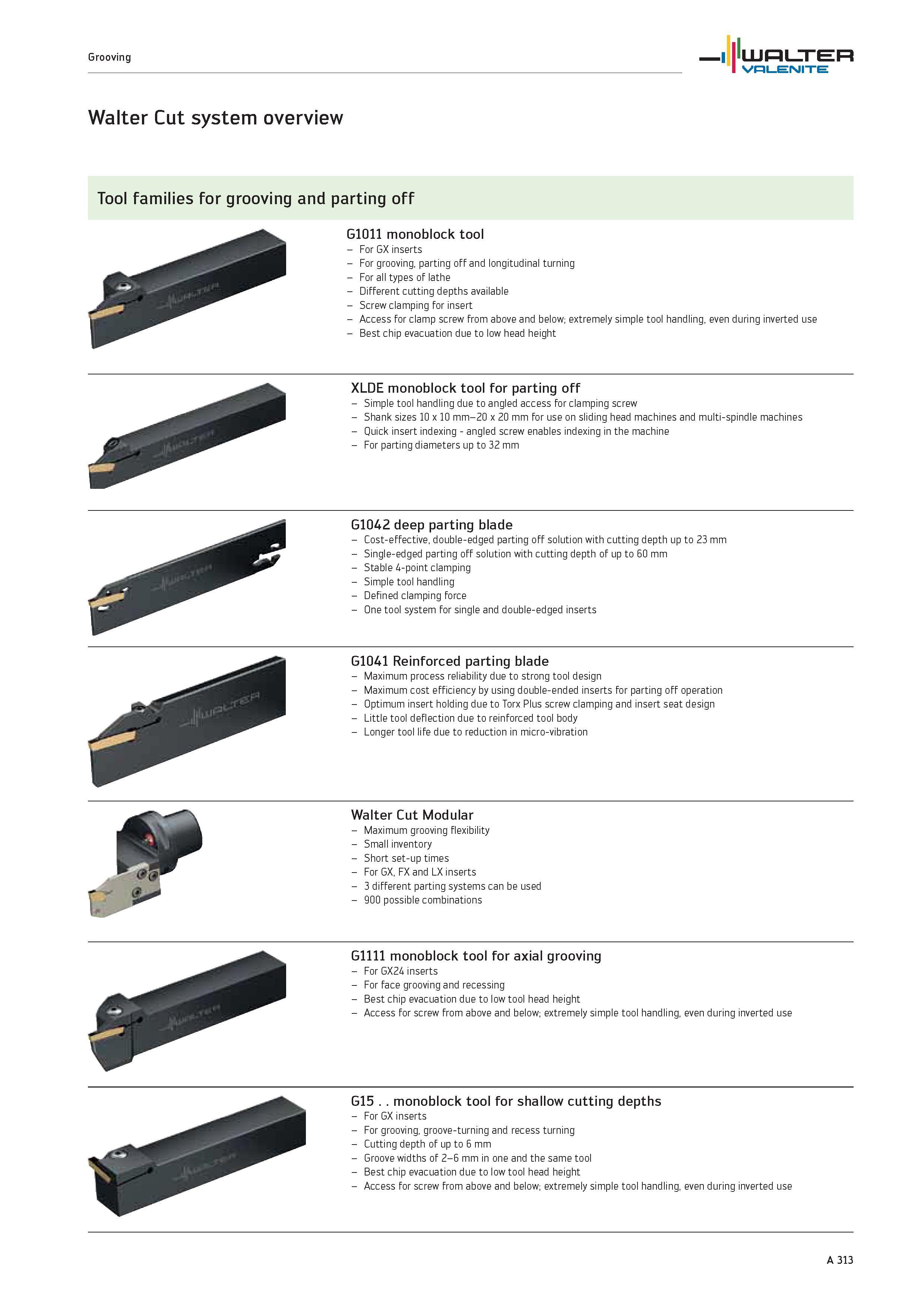

Walter Cut system overview Tool families for grooving and parting off G1011 monoblock tool For GX inserts For grooving, parting off and longitudinal turning For all types of lathe Different cutting depths available Screw clamping for insert Access for clamp screw from above and below extremely simple tool handling, even during inverted use Best chip evacuation due to low head height XLDE monoblock tool for parting off Simple tool handling due to angled access for clamping screw Shank sizes 10 x 10 mm-20 x 20 mm for use on sliding head machines and multi-spindle machines Quick insert indexing angled screw enables indexing in the machine For parting diameters up to 32 mm G1042 deep parting blade Cost-effective, double-edged parting off solution with cutting depth up to 23 mm Single-edged parting off solution with cutting depth of up to 60 mm Stable 4-point clamping Simple tool handling Defined clamping force One tool system for single and double-edged inserts G1041 Reinforced parting blade Maximum process reliability due to strong tool design Maximum cost efficiency by using double-ended inserts for parting off operation Optimum insert holding due to Torx Plus screw clamping and insert seat design Little tool deflection due to reinforced tool body Longer tool life due to reduction in micro-vibration Walter Cut Modular Maximum grooving flexibility Small inventory Short set-up times For GX, FX and LX inserts 3 different parting systems can be used 900 possible combinations G1111 monoblock tool for axial grooving For GX24 inserts For face grooving and recessing Best chip evacuation due to low tool head height Access for screw from above and below extremely simple tool handling, even during inverted use G15 monoblock tool for shallow cutting depths For GX inserts For grooving, groove-turning and recess turning Cutting depth of up to 6 mm Groove widths of 2-6 mm in one and the same tool Best chip evacuation due to low tool head height Access for screw from above and below extremely simple tool handling, even during inverted use A 313 Grooving WALTER Valenite
