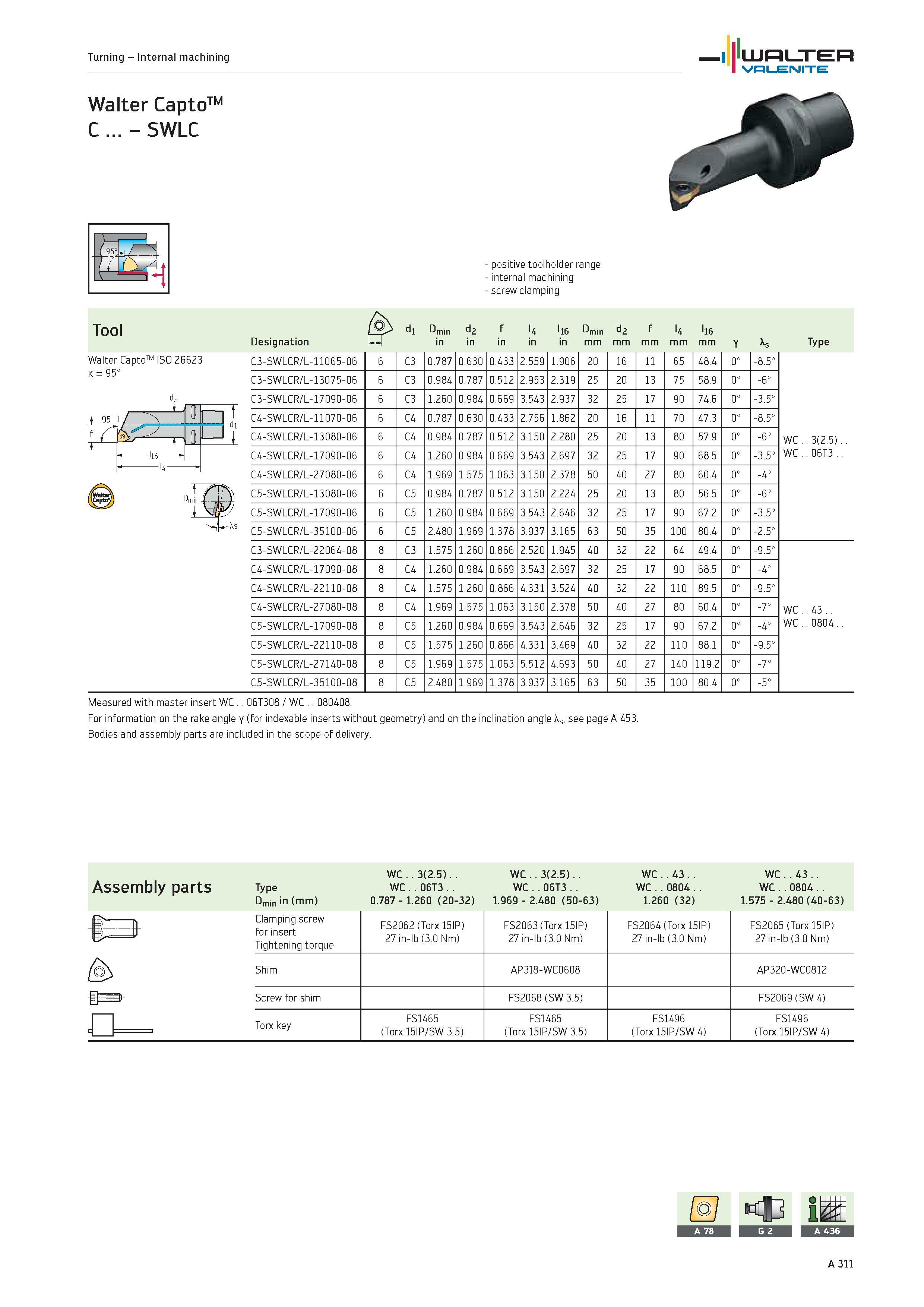

Turning Internal machining WALTER Valenite Walter CaptoTM C SWLC Tool Walter CaptoTM ISO 26623 K 95° II 95J / -di (ill 14 tt Dmin i positive toolholder range internal machining screw clamping dl Dmin d2 f l4 l16 Dmin d2 f U l16 Designation in mm Y As Type C3-SWLCR/L-11065-06 6 C3 0.787 0.630 0.433 2.559 1.906 20 16 11 65 48.4 0° -8.5° C3-SWLCR/L-13075-06 6 C3 0.984 0.787 0.512 2.953 2.319 25 20 13 75 58.9 0° -6° C3-SWLCR/L-17090-06 6 C3 1.260 0.984 0.669 3.543 2.937 32 25 17 90 74.6 0° -3.5° C4-SWLCR/L-11070-06 6 C4 0.787 0.630 0.433 2.756 1.862 20 16 11 70 47.3 0° -8.5° C4-SWLCR/L-13080-06 6 C4 0.984 0.787 0.512 3.150 2.280 25 20 13 80 57.9 0° -6° WC 3(2.5) C4-SWLCR/L-17090-06 6 C4 1.260 0.984 0.669 3.543 2.697 32 25 17 90 68.5 0° -3.5° WC 06T3 C4-SWLCR/L-27080-06 6 C4 1.969 1.575 1.063 3.150 2.378 50 40 27 80 60.4 0° -4° C5-SWLCR/L-13080-06 6 C5 0.984 0.787 0.512 3.150 2.224 25 20 13 80 56.5 0° -6° C5-SWLCR/L-17090-06 6 C5 1.260 0.984 0.669 3.543 2.646 32 25 17 90 67.2 0° -3.5° C5-SWLCR/L-35100-06 6 C5 2.480 1.969 1.378 3.937 3.165 63 50 35 100 80.4 0° -2.5° C3-SWLCR/L-22064-08 8 C3 1.575 1.260 0.866 2.520 1.945 40 32 22 64 49.4 0° -9.5° C4-SWLCR/L-17090-08 8 C4 1.260 0.984 0.669 3.543 2.697 32 25 17 90 68.5 0° -4° C4-SWLCR/L-22110-08 8 C4 1.575 1.260 0.866 4.331 3.524 40 32 22 110 89.5 0° -9.5° C4-SWLCR/L-27080-08 8 C4 1.969 1.575 1.063 3.150 2.378 50 40 27 80 60.4 0° -7° WC 43 C5-SWLCR/L-17090-08 8 C5 1.260 0.984 0.669 3.543 2.646 32 25 17 90 67.2 0° -4° WC 0804 C5-SWLCR/L-22110-08 8 C5 1.575 1.260 0.866 4.331 3.469 40 32 22 110 88.1 0° -9.5° C5-SWLCR/L-27140-08 8 C5 1.969 1.575 1.063 5.512 4.693 50 40 27 140 119.2 0° -7° C5-SWLCR/L-35100-08 8 C5 2.480 1.969 1.378 3.937 3.165 63 50 35 100 80.4 0° -5° Measured with master insert WC 06T308 / WC 080408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453. Bodies and assembly parts are included in the scope of delivery. WC 3(2.5) WC 3(2.5) WC 43 3 4 C WC Assembly parts Type WC 06T3 WC 06T3 WC 0804 WC 0804 Dmin in (mm) 0.787 1.260 (20-32) 1.969 2.480 (50-63) 1.260 (32) 1.575 2.480 (40-63) Clamping screw for insert Tightening torque FS2062 (Torx 15IP) 27 in-lb (3.0 Nm) FS2063 (Torx 15IP) 27 in-lb (3.0 Nm) FS2064 (Torx 15IP) 27 in-lb (3.0 Nm) FS2065 (Torx 15IP) 27 in-lb (3.0 Nm) Shim AP318-WC0608 AP320-WC0812 Screw for shim FS2068 (SW 3.5) FS2069 (SW 4) Torx key FS1465 (Torx 15IP/SW 3.5) FS1465 (Torx 15IP/SW 3.5) FS1496 (Torx 15IP/SW 4) FS1496 (Torx 15IP/SW 4)
