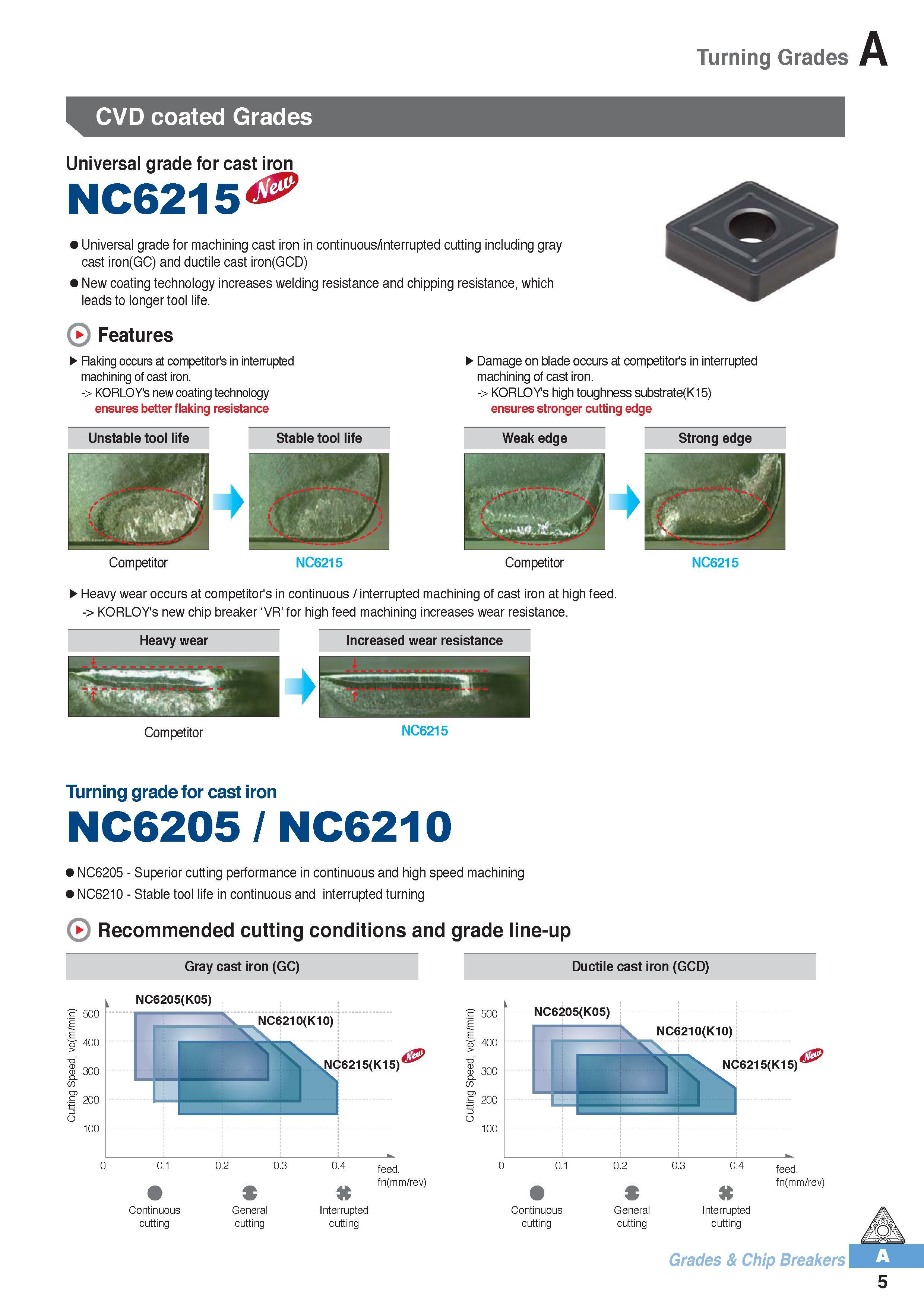

Universal turning grade Korloy NC6215 CVD coated for machining cast iron in continuous / interrupted cutting including gray cast iron (GC) and ductile cast

Universal turning grade Korloy NC6215 CVD coated for machining cast iron in continuous / interrupted cutting including gray cast iron (GC) and ductile cast

Universal turning grade Korloy NC6215 CVD coated for machining cast iron in continuous / interrupted cutting including gray cast iron (GC) and ductile cast iron (GCD) Features New coating technology increases welding resistance and chipping resistance, which leads to longer tool life. Features Flaking occurs at competitor's in interrupted machining of cast iron. KORLOY's new coating technology ensures better flaking resistance Damage on blade occurs at competitor's in interrupted machining of cast iron. KORLOY's high toughness substrate(K15) ensures stronger cutting edge Competitor NC6215 Competitor NC6215 Heavy wear occurs at competitor's in continuous / interrupted machining of cast iron at high feed. KORLOY's new chip breaker ‘VR' for high feed machining increases wear resistance. Competitor NC6215 Turning grade for cast iron NC6205 / NC6210 NC6205 - Superior cutting performance in continuous and high speed machining NC6210 - Stable tool life in continuous and interrupted turning Recommended cutting conditions and grade line-up g 50C E 400 30C O) 200 O 100 Gray cast iron (GC) NC6205(K05) NC6215(K15) 0.1 Continuous cutting 0.2 0.3 General cutting 0.4 Interrupted cutting feed, fn(mm/rev) g 500 /m c(m400 v "O ee 300 p g in 200 C 100 Ductile cast iron (GCD) NC6205(K05) NC6215(K15) 0. Continuous cutting 1 0.2 0.3 0.4 feed, fn(mm/rev) General Interrupted cutting cutting Grades & Chip Breakers 5 0 0 Grades Grades CVD coated Universal grade for cast iron
