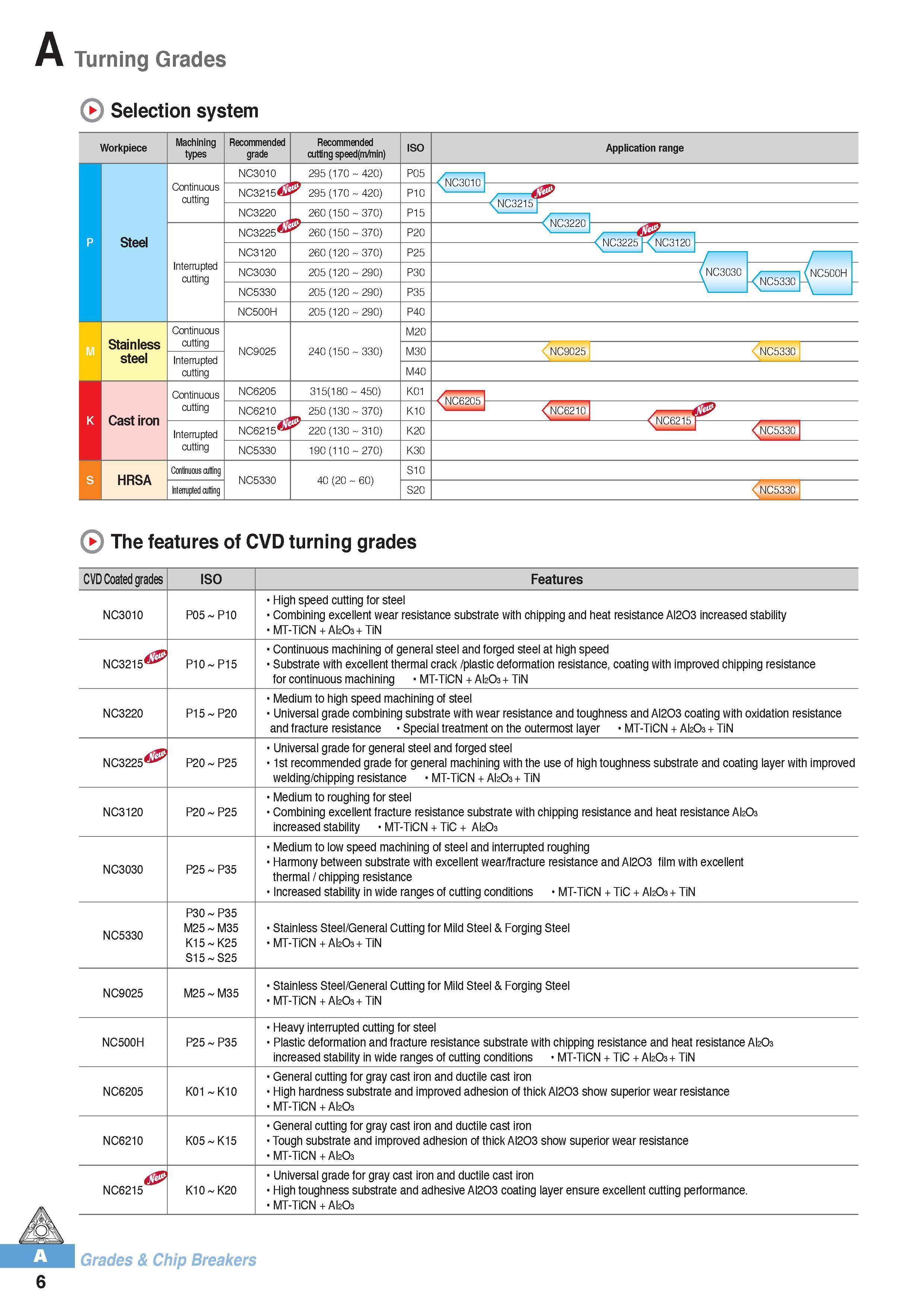

The features of CVD turning grades Korloy NC3010 P05 P10 High speed cutting for steel Combining excellent wear resistance substrate with chipping and heat resistance Al2O3 increased stability MT-TiCN + Al2Os + TiN NC3215 P10 P15 Continuous machining of general steel and forged steel at high speed Substrate with excellent thermal crack /plastic deformation resistance, coating with improved chipping resistance for continuous machining MT-TiCN + AkOs + TiN NC3220 P15 P20 Medium to high speed machining of steel Universal grade combining substrate with wear resistance and toughness and Al2O3 coating with oxidation resistance and fracture resistance Special treatment on the outermost layer MT-TiCN + Al2O3 + TiN NC3225 P20 P25 Universal grade for general steel and forged steel 1st recommended grade for general machining with the use of high toughness substrate and coating layer with improved welding/chipping resistance MT-TiCN + Al2O3 + TiN NC3120 P20 P25 Medium to roughing for steel Combining excellent fracture resistance substrate with chipping resistance and heat resistance Al2O3 increased stability MT-TiCN + TiC + Al2O3 NC3030 P25 P35 Medium to low speed machining of steel and interrupted roughing Harmony between substrate with excellent wear/fracture resistance and AI203 film with excellent thermal / chipping resistance Increased stability in wide ranges of cutting conditions MT-TiCN + TiC + Al2O3 + TiN NC5330 P30 P35 M25 M35 K15 K25 S15 S25 Stainless Steel/General Cutting for Mild Steel & Forging Steel MT-TiCN + Al2O3 + TiN NC9025 M25 M35 Stainless Steel/General Cutting for Mild Steel & Forging Steel MT-TiCN + Al2O3 + TiN NC500H P25 P35 Heavy interrupted cutting for steel Plastic deformation and fracture resistance substrate with chipping resistance and heat resistance Al2O3 increased stability in wide ranges of cutting conditions MT-TiCN + TiC + Al2O3 + TiN NC6205 K01 K10 General cutting for gray cast iron and ductile cast iron High hardness substrate and improved adhesion of thick Al2O3 show superior wear resistance MT-TiCN + Al2O3 NC6210 K05 K15 General cutting for gray cast iron and ductile cast iron Tough substrate and improved adhesion of thick Al2O3 show superior wear resistance MT-TiCN + Al2O3 NC6215 K10 K20 Universal grade for gray cast iron and ductile cast iron High toughness substrate and adhesive Al2O3 coating layer ensure excellent cutting performance. MT-TiCN + Al2O3 6 Grades & Chip Breakers K A Turning Grades Selection system Workpiece Steel Stainless steel Cast iron HRSA Machining types Continuous cutting Interrupted cutting Continuous cutting Interrupted cutting Continuous cutting Interrupted cutting Continuous cutting nterrupted cutting Recommended grade NC3010 NC3215 Recommended cutting speed(m/min) 295 (170 420) NC3220 NC3225 I NC3120 NC3030 NC5330 NC500H NC9025 NC6205 NC6210 295 (170 420) 260 (150 370) 260 (150 370) 260 (120 370) 205 (120 290) 205 (120 290) 205 (120 290) 240 (150 330) 315(180 450) NC6215 250 (130 370) NC5330 NC5330 220 (130 310) 190 (110 270) 40 (20 60) ISO P05 P10 P15 P20 P25 P30 P35 P40 M20 M30 M40 K01 K10 K20 K30 S10 S20 Application range n NC3010 NC3215 NC3220 W NC3120 NC3225 NC3030 NC500H NC5330 NC9025 NC5330 N NC5330 CVD Coated grades ISO Features
