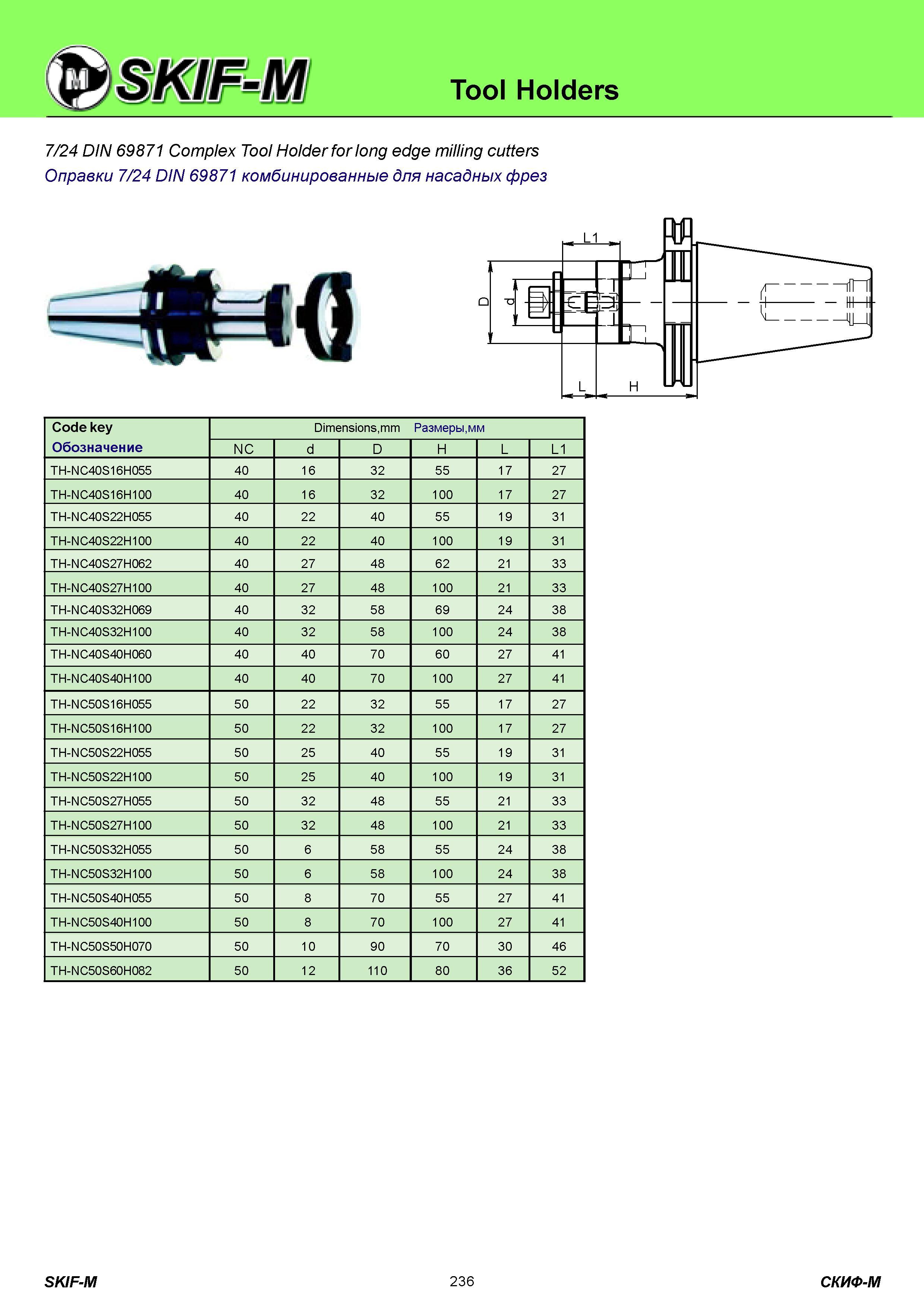

Tool Holders 7/24 DIN 69871 Complex Tool Holder for long edge milling cutters Оправки 7/24 DIN 69871 комбинированные для насадных фрез Code key Обозначе

Tool Holders 7/24 DIN 69871 Complex Tool Holder for long edge milling cutters Оправки 7/24 DIN 69871 комбинированные для насадных фрез Code key Обозначение Dimensions,mm Размеры,мм NC d D H L L1 TH-NC40S16H055 40 16 32 55 17 27 TH-NC40S16H100 40 16 32 100 17 27 TH-NC40S22H055 40 22 40 55 19 31 TH-NC40S22H100 40 22 40 100 19 31 TH-NC40S27H062 40 27 48 62 21 33 TH-NC40S27H100 40 27 48 100 21 33 TH-NC40S32H069 40 32 58 69 24 38 TH-NC40S32H100 40 32 58 100 24 38 TH-NC40S40H060 40 40 70 60 27 41 TH-NC40S40H100 40 40 70 100 27 41 TH-NC50S16H055 50 22 32 55 17 27 TH-NC50S16H100 50 22 32 100 17 27 TH-NC50S22H055 50 25 40 55 19 31 TH-NC50S22H100 50 25 40 100 19 31 TH-NC50S27H055 50 32 48 55 21 33 TH-NC50S27H100 50 32 48 100 21 33 TH-NC50S32H055 50 6 58 55 24 38 TH-NC50S32H100 50 6 58 100 24 38 TH-NC50S40H055 50 8 70 55 27 41 TH-NC50S40H100 50 8 70 100 27 41 TH-NC50S50H070 50 10 90 70 30 46 TH-NC50S60H082 50 12 110 80 36 52 SKIF-M 236 СКИФ-М
