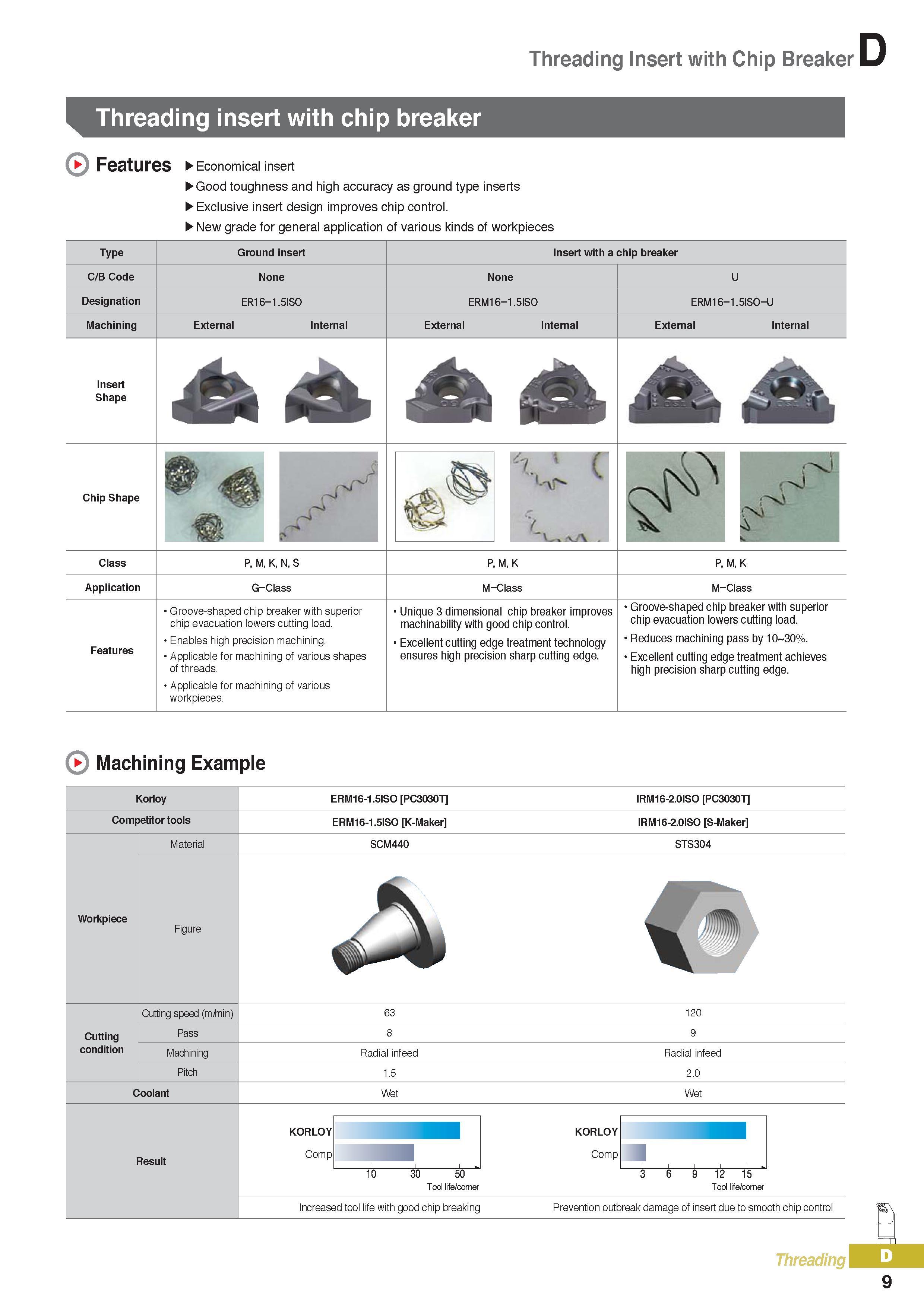

Threading carbide indexable inserts Korloy with chip breaker Features Economical cutting tools Good toughness and high accuracy as ground type inserts Exclusive insert design improves chip control. New grade for general application of various kinds of workpieces Type Ground insert Insert with a chip breaker C/B Code Designation None ER16-1.5ISO None ERM16-1.5ISO ERM16-1.5ISO-U Machining External Internal External Internal External Internal Insert Shape & Chip Shape Class P, M, K, N, S P, M, K P, M, K Application G-Class M-Class M-Class Features Groove-shaped chip breaker with superior chip evacuation lowers cutting load. Enables high precision machining. Applicable for machining of various shapes of threads. Applicable for machining of various workpieces. Unique 3 dimensional chip breaker improves machinability with good chip control. Excellent cutting edge treatment technology ensures high precision sharp cutting edge. Groove-shaped chip breaker with superior chip evacuation lowers cutting load. Reduces machining pass by10 30%. Excellent cutting edge treatment achieves high precision sharp cutting edge. U Machining Example Korloy ERM16-1.5ISO PC3030T IRM16-2.0ISO PC3030T Competitor tools ERM16-1.5ISO K-Maker IRM16-2.0ISO S-Maker Material SCM440 STS304 Workpiece Figure Cutting speed (m/min) 63 120 Cutting Pass 8 9 condition Machining Radial infeed Radial infeed Pitch 1.5 2.0 Coolant Wet Wet KORLOY KORLOY Result Comp Comp 10 30 50 Tool life/corner 3 6 9 12 15 Tool life/corner Increased tool life with good chip breaking Prevention outbreak damage of insert due to smooth chip control J. Threading 9 Threading Insert with Chip Breaker
