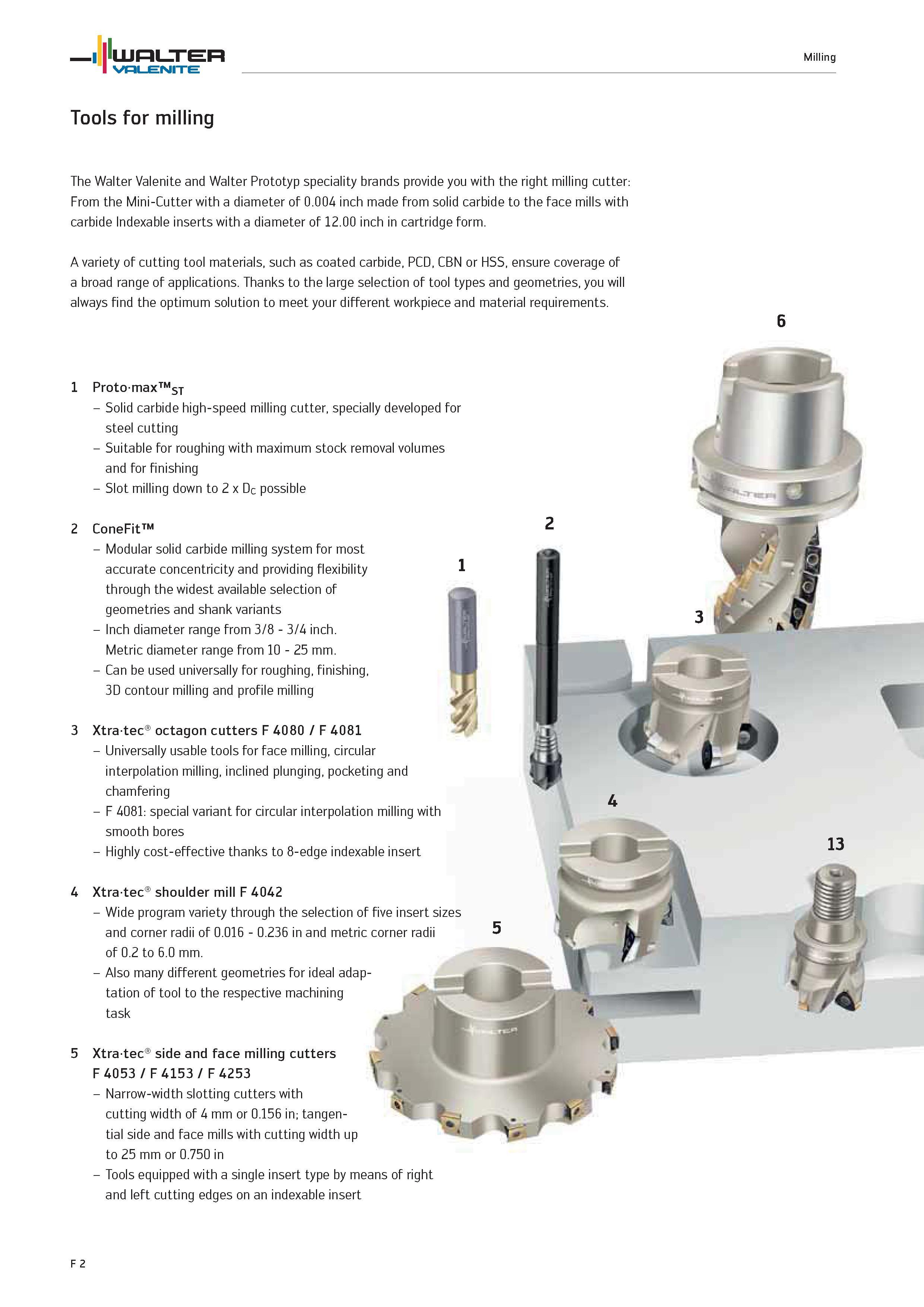

The Walter Valenite and Walter Prototyp speciality brands provide you with the right milling cutter From the Mini-Cutter with a diameter of 0.004 inch made from solid carbide to the face mills with carbide Indexable inserts with a diameter of 12.00 inch in cartridge form. A variety of cutting tool materials, such as coated carbide, PCD, CBN or HSS, ensure coverage of a broad range of applications. Thanks to the large selection of tool types and geometries, you will always find the optimum solution to meet your different workpiece and material requirements. 1 Protomax sT Solid carbide high-speed milling cutter, specially developed for steel cutting Suitable for roughing with maximum stock removal volumes and for finishing Slot milling down to 2 x Dc possible 2 ConeFit Modular solid carbide milling system for most accurate concentricity and providing flexibility 1 through the widest available selection of geometries and shank variants Inch diameter range from 3/8 3/4 inch. Metric diameter range from 10 25 Can be used universally for roughing, finishing, 3D contour milling and profile milling 3 Xtratec octagon cutters F 4080 / F 4081 Universally usable tools for face milling, circular interpolation milling, inclined plunging, pocketing and chamfering F 4081 special variant for circular interpolation milling with smooth bores Highly cost-effective thanks to 8-edge indexable insert 4 Xtratec shoulder mill F 4042 Wide program variety through the selection of five insert sizes and corner radii of 0.016 0.236 in and metric corner radii of 0.2 to 6.0 Also many different geometries for ideal adap- tation of tool to the respective machining task „ 1 V Xtratec side and face milling cutters F4053/F4153/F4253 Narrow-width slotting cutters with cutting width of 4 or 0.156 in tangential side and face mills with cutting width up to 25 or 0.750 in Tools equipped with a single insert type by means of right and left cutting edges on an indexable insert 13 5 F 2 WALTER Milling Tools for milling
