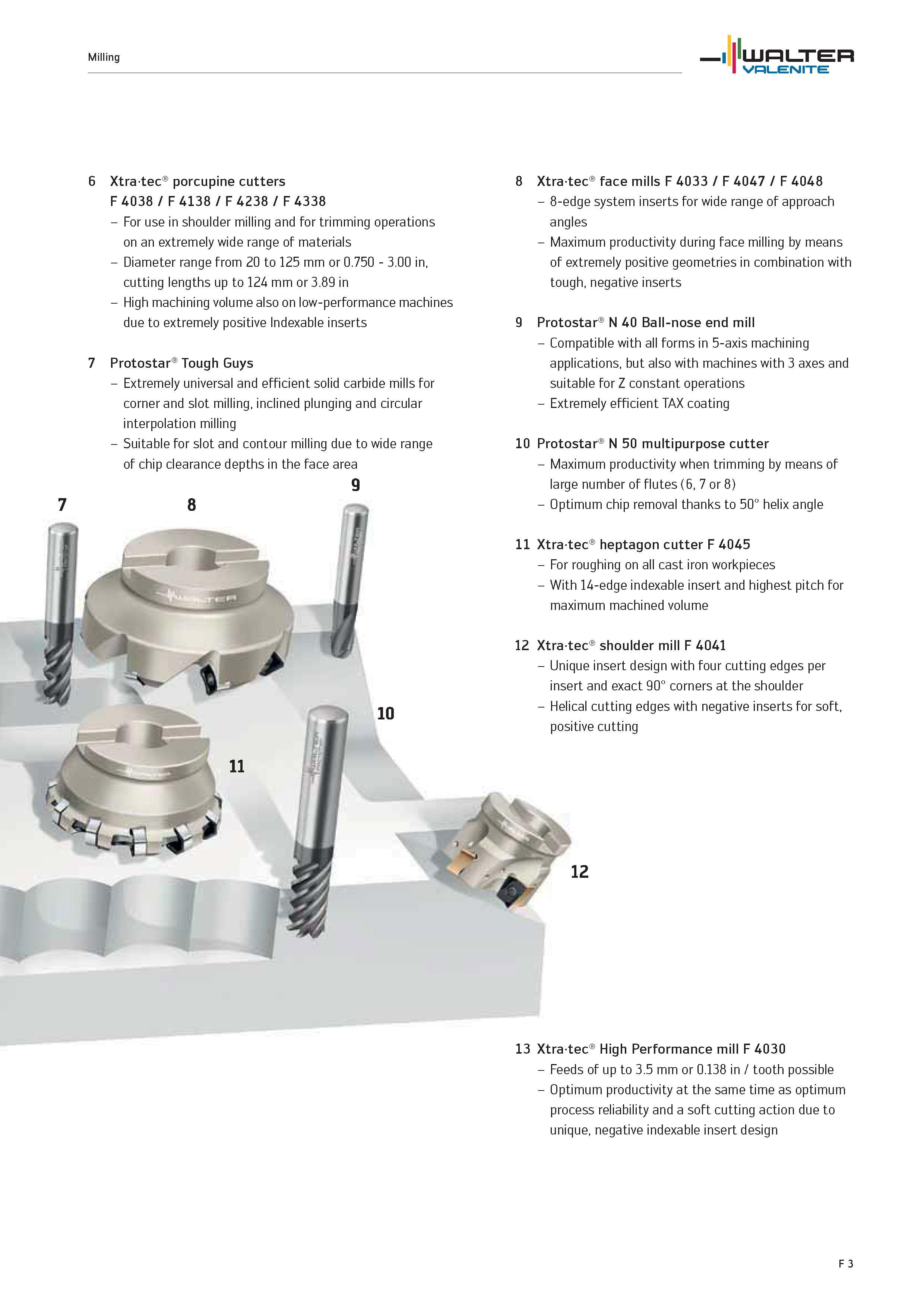

Milling WALTER Valenite 6 Xtra-tec porcupine cutters F 4038 /F 4138/F 4238 /F 4338 For use in shoulder milling and for trimming operations on an extremely wide range of materials Diameter range from 20 to 125 mm or 0.750 3.00 in, cutting lengths up to 124 mm or 3.89 in High machining volume also on low-performance machines due to extremely positive Indexable inserts 7 Protostar Tough Guys Extremely universal and efficient solid carbide mills for corner and slot milling, inclined plunging and circular interpolation milling Suitable for slot and contour milling due to wide range of chip clearance depths in the face area 8 Xtra-tec face mills F 4033 / F 4047 / F 4048 8-edge system inserts for wide range of approach angles Maximum productivity during face milling by means of extremely positive geometries in combination with tough, negative inserts 9 Protostar N 40 Ball-nose end mill Compatible with all forms in 5-axis machining applications, but also with machines with 3 axes and suitable for Z constant operations Extremely efficient TAX coating 10 Protostar N 50 multipurpose cutter Maximum productivity when trimming by means of large number of flutes (6, 7 or 8) Optimum chip removal thanks to 50° helix angle 11 Xtra-tec heptagon cutter F 4045 For roughing on all cast iron workpieces With 14-edge indexable insert and highest pitch for maximum machined volume 12 Xtra-tec shoulder mill F 4041 Unique insert design with four cutting edges per insert and exact 90° corners at the shoulder Helical cutting edges with negative inserts for soft, positive cutting 12 13 Xtra-tec High Performance mill F 4030 Feeds of up to 3.5 mm or 0.138 in / tooth possible Optimum productivity at the same time as optimum process reliability and a soft cutting action due to unique, negative indexable insert design F 3
