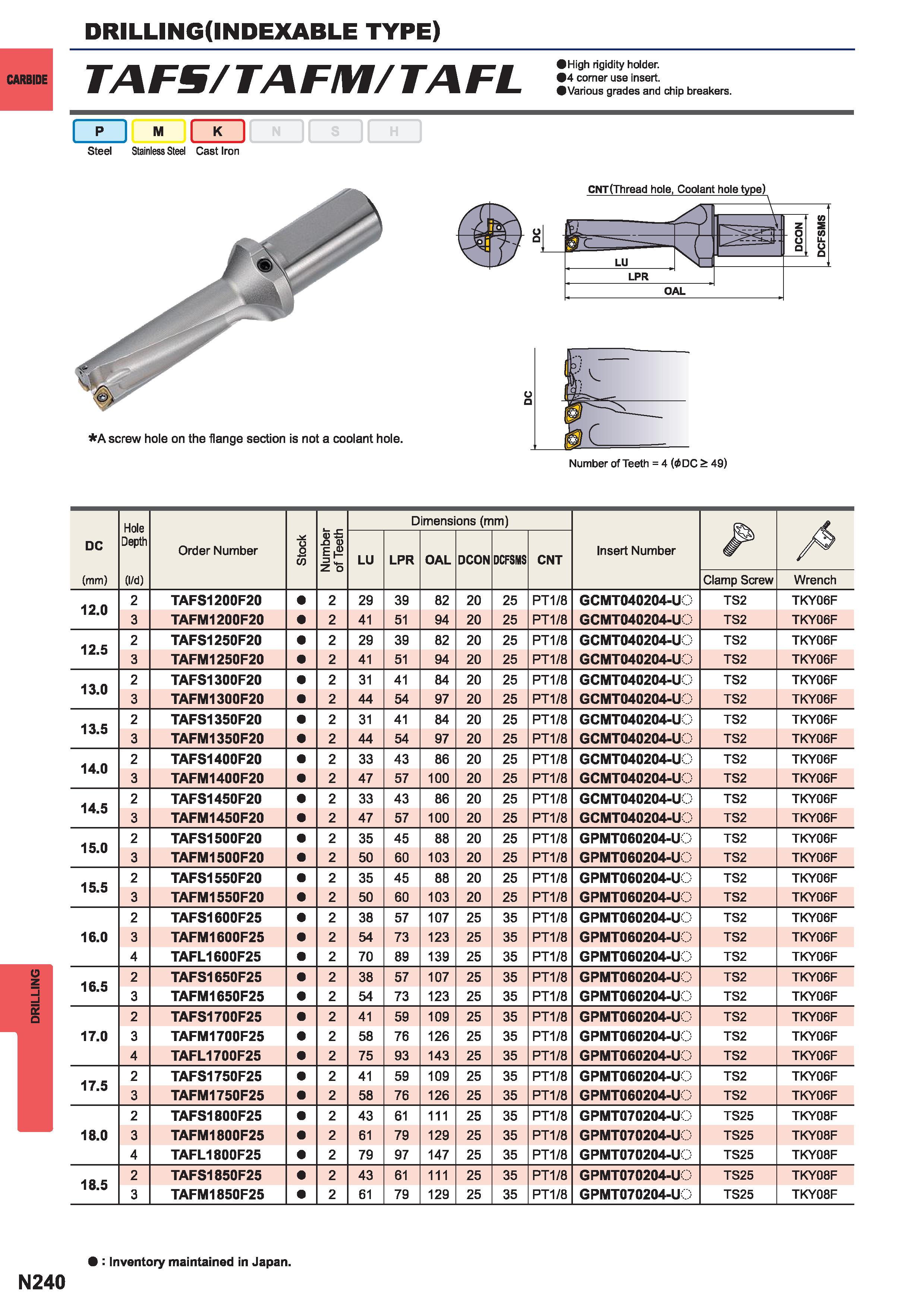

DRILLING DRILLING (INDEXABLE TYPE) CARBIDE TAFS TAFM TAFL Various grades and chip breakers. P M Steel Stainless Steel Cast Iron A screw hole on the flange section is not a coolant hole. Number of Teeth 4 (t DC 49) Hole Depth Dimensions (mm) ML DC Order Number Stock 2 z 'S LPR OAL DCON DCFSMS CNT Insert Number (mm) (l d) Clamp Screw Wrench 12.0 2 TAFS1200F20 2 29 39 82 20 25 PT1 8 GCMT040204-U0 TS2 TKY06F 3 TAFM1200F20 2 41 51 94 20 25 PT1 8 GCMT040204-U TS2 TKY06F 12.5 2 TAFS1250F20 2 29 39 82 20 25 PT1 8 GCMT040204-U0 TS2 TKY06F 3 TAFM1250F20 2 41 51 94 20 25 PT1 8 GCMT040204-U TS2 TKY06F 13.0 2 TAFS1300F20 2 31 41 84 20 25 PT1 8 GCMT040204-U TS2 TKY06F 3 TAFM1300F20 2 44 54 97 20 25 PT1 8 GCMT040204-U0 TS2 TKY06F 13.5 2 TAFS1350F20 2 31 41 84 20 25 PT1 8 GCMT040204-U0 TS2 TKY06F 3 TAFM1350F20 2 44 54 97 20 25 PT1 8 GCMT040204-U0 TS2 TKY06F 14.0 2 TAFS1400F20 2 33 43 86 20 25 PT1 8 GCMT040204-U0 TS2 TKY06F 3 TAFM1400F20 2 47 57 100 20 25 PT1 8 GCMT040204-U TS2 TKY06F 14.5 2 TAFS1450F20 2 33 43 86 20 25 PT1 8 GCMT040204-U TS2 TKY06F 3 TAFM1450F20 2 47 57 100 20 25 PT1 8 GCMT040204-U0 TS2 TKY06F 15.0 2 TAFS1500F20 2 35 45 88 20 25 PT1 8 GPMT060204-U0 TS2 TKY06F 3 TAFM1500F20 2 50 60 103 20 25 PT1 8 G PMT060204-UG TS2 TKY06F 15.5 2 TAFS1550F20 2 35 45 88 20 25 PT1 8 G PMT060204-UG TS2 TKY06F 3 TAFM1550F20 2 50 60 103 20 25 PT1 8 GPMT060204-UQ TS2 TKY06F 2 TAFS1600F25 2 38 57 107 25 35 PT1 8 GPMT060204-U0 TS2 TKY06F 16.0 3 TAFM1600F25 2 54 73 123 25 35 PT1 8 GPMT060204-UC) TS2 TKY06F 4 TAFL1600F25 2 70 89 139 25 35 PT1 8 GPMT060204-U0 TS2 TKY06F 16.5 2 TAFS1650F25 2 38 57 107 25 35 PT1 8 GPMT060204-U0 TS2 TKY06F 3 TAFM1650F25 2 54 73 123 25 35 PT1 8 GPMT060204-U0 TS2 TKY06F 2 TAFS1700F25 2 41 59 109 25 35 PT1 8 G PMT060204-UG TS2 TKY06F 17.0 3 TAFM1700F25 2 58 76 126 25 35 PT1 8 GPMT060204-UQ TS2 TKY06F 4 TAFL1700F25 2 75 93 143 25 35 PT1 8 GPMT060204-UQ TS2 TKY06F 17.5 2 TAFS1750F25 2 41 59 109 25 35 PT1 8 GPMT060204-UQ TS2 TKY06F 3 TAFM1750F25 2 58 76 126 25 35 PT1 8 G PMT060204-UG TS2 TKY06F 2 TAFS1800F25 2 43 61 111 25 35 PT1 8 GPMT070204-UO TS25 TKY08F 18.0 3 TAFM1800F25 2 61 79 129 25 35 PT1 8 GPMT070204-UG TS25 TKY08F 4 TAFL1800F25 2 79 97 147 25 35 PT1 8 GPMT070204-U0 TS25 TKY08F 18.5 2 TAFS1850F25 2 43 61 111 25 35 PT1 8 GPMT070204-UC TS25 TKY08F 3 TAFM1850F25 2 61 79 129 25 35 PT1 8 GPMT070204-UC) TS25 TKY08F Inventory maintained in Japan. N240
