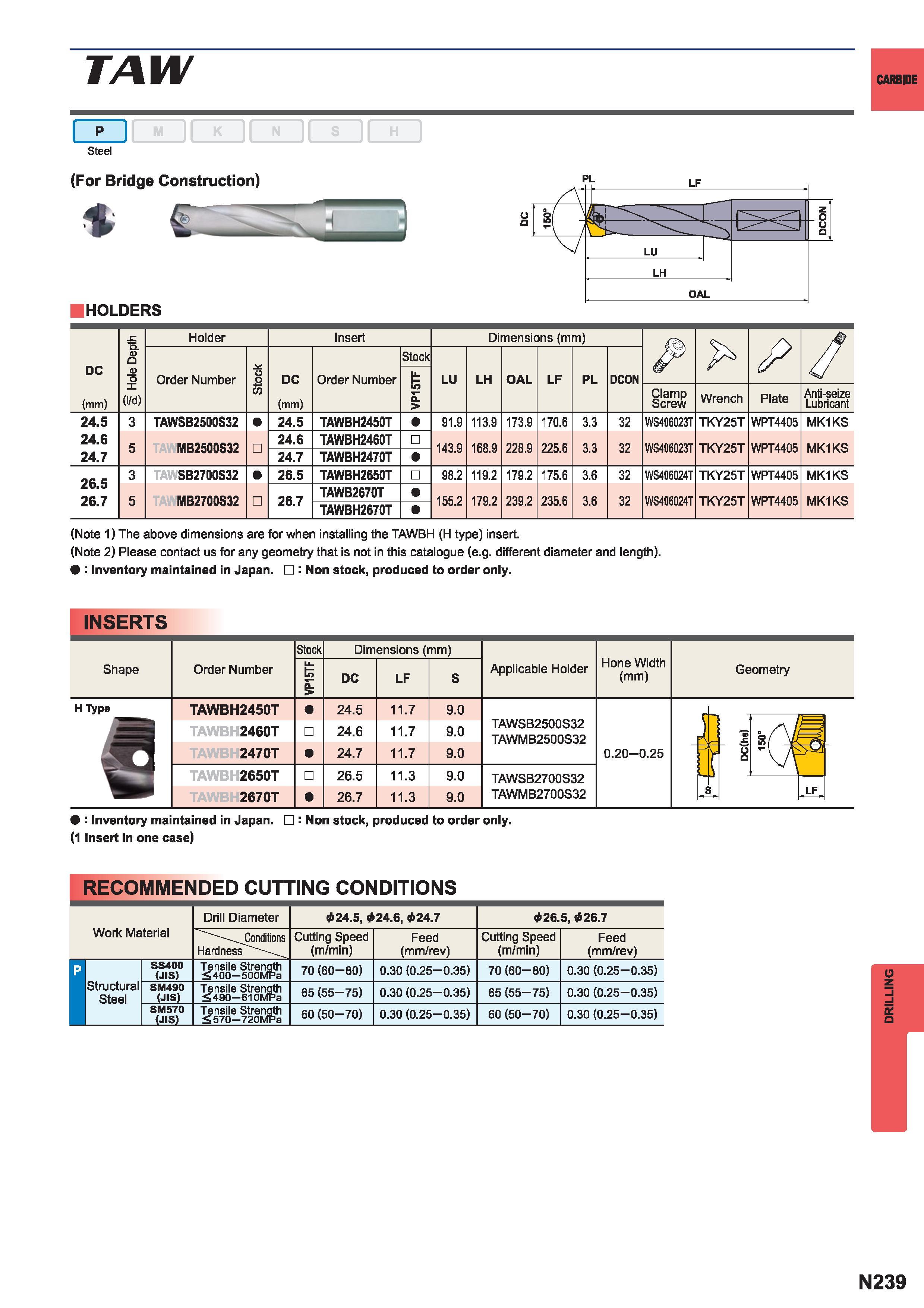

TAW CARBIDE p Steel (For Bridge Construction) c HOLDERS DC (mm) g Hole Depth Holder Insert Dimensions (mm) P P Order Number Stock DC (mm) Order Number C D VP15TF o LH OAL LF PL DCON Clamp Screw Wrench Plate Anti-seize Lubricant 24.5 24.6 24.7 3 TAWSB2500S32 24.5 TAWBH2450T 91.9 113.9 173.9 170.6 3.3 32 WS406023T TKY25T WPT4405 MK1KS 5 MB2500S32 24.6 TAWBH2460T 143.9 168.9 228.9 225.6 3.3 32 WS406023T TKY25T WPT4405 MK1KS 24.7 TAWBH2470T 26.5 26.7 3 SB2700S32 26.5 TAWBH26S0T 98.2 119.2 179.2 175.6 3.6 32 WS406024T TKY25T WPT4405 MK1KS 5 MB2700S32 26.7 TAWB2670T 155.2 179.2 239.2 235.6 3.6 32 WS406024T TKY25T WPT4405 MK1KS TAWBH2670T (Note 1) The above dimensions are for when installing the TAWBH type) insert. (Note 2) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only. INSERTS Shape Order Number Stock Dimensions (mm) DC LF Applicable Holder Hone Width (mm) Geometry H Type TAWBH2450T 31 2460T 2470T 24.5 24.6 24.7 11.7 11.7 11.7 9.0 9.0 9.0 TAWSB2500S32 TAWM B2500S32 0.20-0.25 2650T 2670T 26.5 26.7 11.3 11.3 9.0 9.0 TAWSB2700S32 TAWMB2700S32 Inventory maintained in Japan. Non stock produced to order only. (1 insert in one case) RECOMMENDED CUTTING CONDITIONS Work Material Drill Diameter 024.5 024.6 024.7 026.5 026.7 Conditions Hardness''-'- Cutting Speed (m/min) Feed (mm/rev) Cutting Speed (m/min) Feed (mm/rev) Structural Steel SS400 (JIS) Tensile Strength 400-500MPa 70 (60-80) 0.30 (0.25-0.35) 70 (60-80) 0.30 (0.25-0.35) SM490 (JIS) Tensile Strength 490 61 OMPa 65 (55-75) 0.30 (0.25-0.35) 65 (55-75) 0.30 (0.25-0.35) SM570 (JIS) Tensile Strength 570-720MPa 60 (50-70) 0.30 (0.25-0.35) 60 (50-70) 0.30 (0.25-0.35) N239 DRILLING
