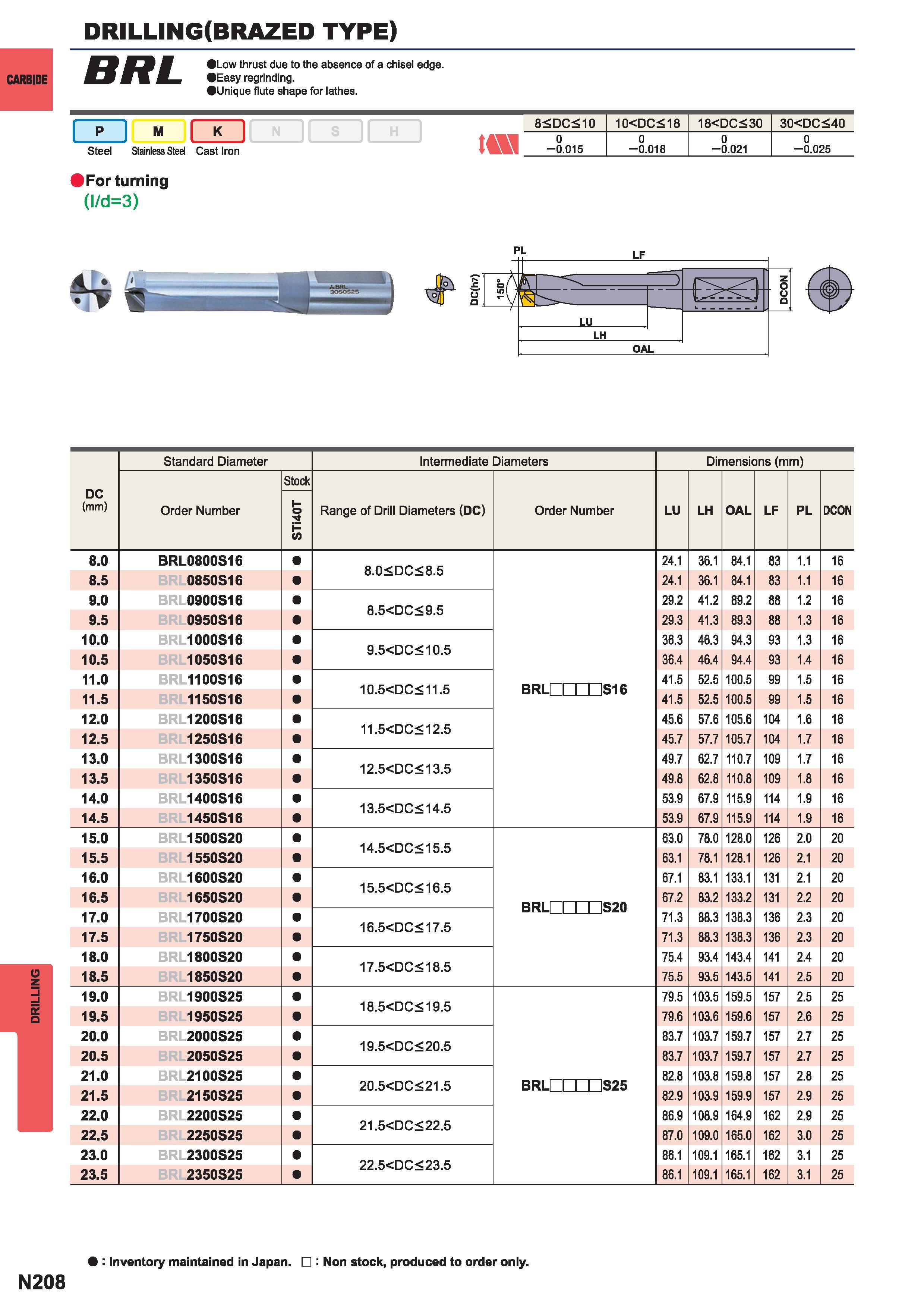

DRILLING CARBIDE DRILLING (BRAZED TYPE) BRL Low thrjst due to the absence of a chisel Easy regrinding. Unique flute shape for lathes. 8DC10 10DC18 18DC30 30DC40 -0.015 -0.018 -0.021 -0.025 P M K JLZJ Steel Stainless Steel Cast Iron For turning (l d3) ten ABRL. 3050S2S SS Standard Diameter Intermediate Diameters Dimensions (mm) DC (mm) Stock Order Number H o H Range of Drill Diameters (DC) Order Number LH OAL LF PL DCON 8.0 BRL0800S16 8.0DC8.5 24.1 36.1 84.1 83 1.1 16 8.5 0850S16 24.1 36.1 84.1 83 1.1 16 9.0 R 0900S16 8.5DC9.5 29.2 41.2 89.2 88 1.2 16 9.5 0950S16 29.3 41.3 89.3 88 1.3 16 10.0 R 1000S16 9.5DC10.5 36.3 46.3 94.3 93 1.3 16 10.5 1050S16 36.4 46.4 94.4 93 1.4 16 11.0 R 1100S16 10.5DC11.5 BRLl IS16 41.5 52.5 100.5 99 1.5 16 11.5 1150S16 41.5 52.5 100.5 99 1.5 16 12.0 R 1200S16 11.5DC12.5 45.6 57.6 105.6 104 1.6 16 12.5 1250S16 45.7 57.7 105.7 104 1.7 16 13.0 R 1300S16 12.5DC13.5 49.7 62.7 110.7 109 1.7 16 13.5 1350S16 49.8 62.8 110.8 109 1.8 16 14.0 R 1400S16 13.5DC14.5 53.9 67.9 115.9 114 1.9 16 14.5 1450S16 53.9 67.9 115.9 114 1.9 16 15.0 R 1500S20 14.5DC15.5 63.0 78.0 128.0 126 2.0 20 15.5 1550S20 63.1 78.1 128.1 126 2.1 20 16.0 R 1600S20 15.5DC16.5 67.1 83.1 133.1 131 2.1 20 16.5 1650S20 BRLl IS20 67.2 83.2 133.2 131 2.2 20 17.0 R 1700S20 16.5DC17.5 71.3 88.3 138.3 136 2.3 20 17.5 1750S20 71.3 88.3 138.3 136 2.3 20 18.0 R 1800S20 17.5DC18.5 75.4 93.4 143.4 141 2.4 20 18.5 1850S20 75.5 93.5 143.5 141 2.5 20 19.0 R 1900S25 18.5DC19.5 79.5 103.5 159.5 157 2.5 25 19.5 1950S25 79.6 103.6 159.6 157 2.6 25 20.0 2000S25 19.5DC20.5 83.7 103.7 159.7 157 2.7 25 20.5 2050S25 83.7 103.7 159.7 157 2.7 25 21.0 2100S25 20.5DC21.5 BRinmns25 82.8 103.8 159.8 157 2.8 25 21.5 2150S25 82.9 103.9 159.9 157 2.9 25 22.0 2200S25 21.5DC22.5 86.9 108.9 164.9 162 2.9 25 22.5 2250S25 87.0 109.0 165.0 162 3.0 25 23.0 2300S25 22.5DC23.5 86.1 109.1 165.1 162 3.1 25 23.5 2350S25 86.1 109.1 165.1 162 3.1 25 Inventory maintained in Japan. Non stock produced to order only. N208
