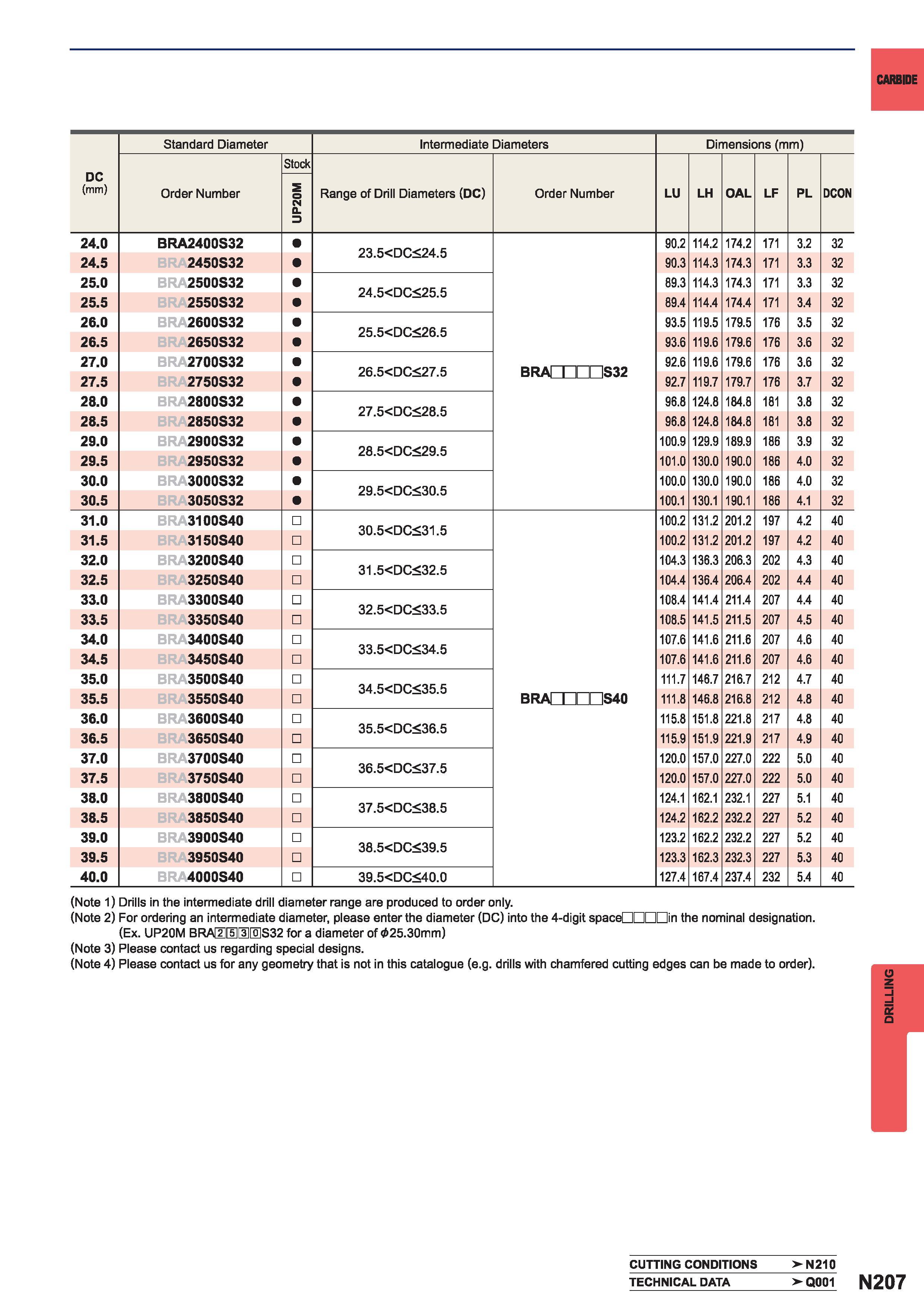

CARBIDE DC (mm) Standard Diameter Intermediate Diameters Dimensions (mm) Order Number Stock 2 o N 3 Range of Drill Diameters (DC) Order Number LH OAL LF PL DCON 24.0 BRA2400S32 23.5DC24.5 90.2 114.2 174.2 171 3.2 32 24.5 2450S32 90.3 114.3 174.3 171 3.3 32 25.0 2500S32 24.5DC25.5 89.3 114.3 174.3 171 3.3 32 25.5 2550S32 89.4 114.4 174.4 171 3.4 32 26.0 2600S32 25.5DC26.5 93.5 119.5 179.5 176 3.5 32 26.5 2650S32 RDAl 1 IQ'19 93.6 119.6 179.6 176 3.6 32 27.0 2700S32 26.5DC27.5 92.6 119.6 179.6 176 3.6 32 27.5 2750S32 Dt A o 92.7 119.7 179.7 176 3.7 32 28.0 2800S32 27.5DC28.5 96.8 124.8 184.8 181 3.8 32 28.5 2850S32 96.8 124.8 184.8 181 3.8 32 29.0 2900S32 28.5DC29.5 100.9 129.9 189.9 186 3.9 32 29.5 2950S32 101.0 130.0 190.0 186 4.0 32 30.0 3000S32 29.5DC30.5 100.0 130.0 190.0 186 4.0 32 30.5 3050S32 100.1 130.1 190.1 186 4.1 32 31.0 3100S40 30.5DC31.5 100.2 131.2 201.2 197 4.2 40 31.5 3150S40 100.2 131.2 201.2 197 4.2 40 32.0 3200S40 31.5DC32.5 104.3 136.3 206.3 202 4.3 40 32.5 3250S40 104.4 136.4 206.4 202 4.4 40 33.0 3300S40 32.5DC33.5 108.4 141.4 211.4 207 4.4 40 33.5 3350S40 108.5 141.5 211.5 207 4.5 40 34.0 3400S40 33.5DC34.5 107.6 141.6 211.6 207 4.6 40 34.5 3450S40 107.6 141.6 211.6 207 4.6 40 35.0 3500S40 34.5DC35.5 111.7 146.7 216.7 212 4.7 40 35.5 3550S40 BRAl 1 IS40 111.8 146.8 216.8 212 4.8 40 36.0 3600S40 35.5DC36.5 115.8 151.8 221.8 217 4.8 40 36.5 3650S40 115.9 151.9 221.9 217 4.9 40 37.0 3700S40 36.5DC37.5 120.0 157.0 227.0 222 5.0 40 37.5 3750S40 120.0 157.0 227.0 222 5.0 40 38.0 3800S40 37.5DC38.5 124.1 162.1 232.1 227 5.1 40 38.5 3850S40 124.2 162.2 232.2 227 5.2 40 39.0 3900S40 38.5DC39.5 123.2 162.2 232.2 227 5.2 40 39.5 3950S40 123.3 162.3 232.3 227 5.3 40 40.0 4000S40 39.5DC40.0 127.4 167.4 237.4 232 5.4 40 (Note 1) Drills in the intermediate drill diameter range are produced to order only. (Note 2) For ordering an intermediate diameter please enter the diameter (DC) into the 4-digit spaceLOLOin the nominal designation. (Ex. UP20M BRA 2 5 3 a S32 for a diameter of 025.30mm) (Note 3) Please contact us regarding special designs. (Note 4) Please contact us for any geometry that is not in this catalogue (e.g. drills with chamfered cutting edges can be made to order). CUTTING CONDITIONS N210 TECHNICAL DATA Q001 N207 DRILLING
