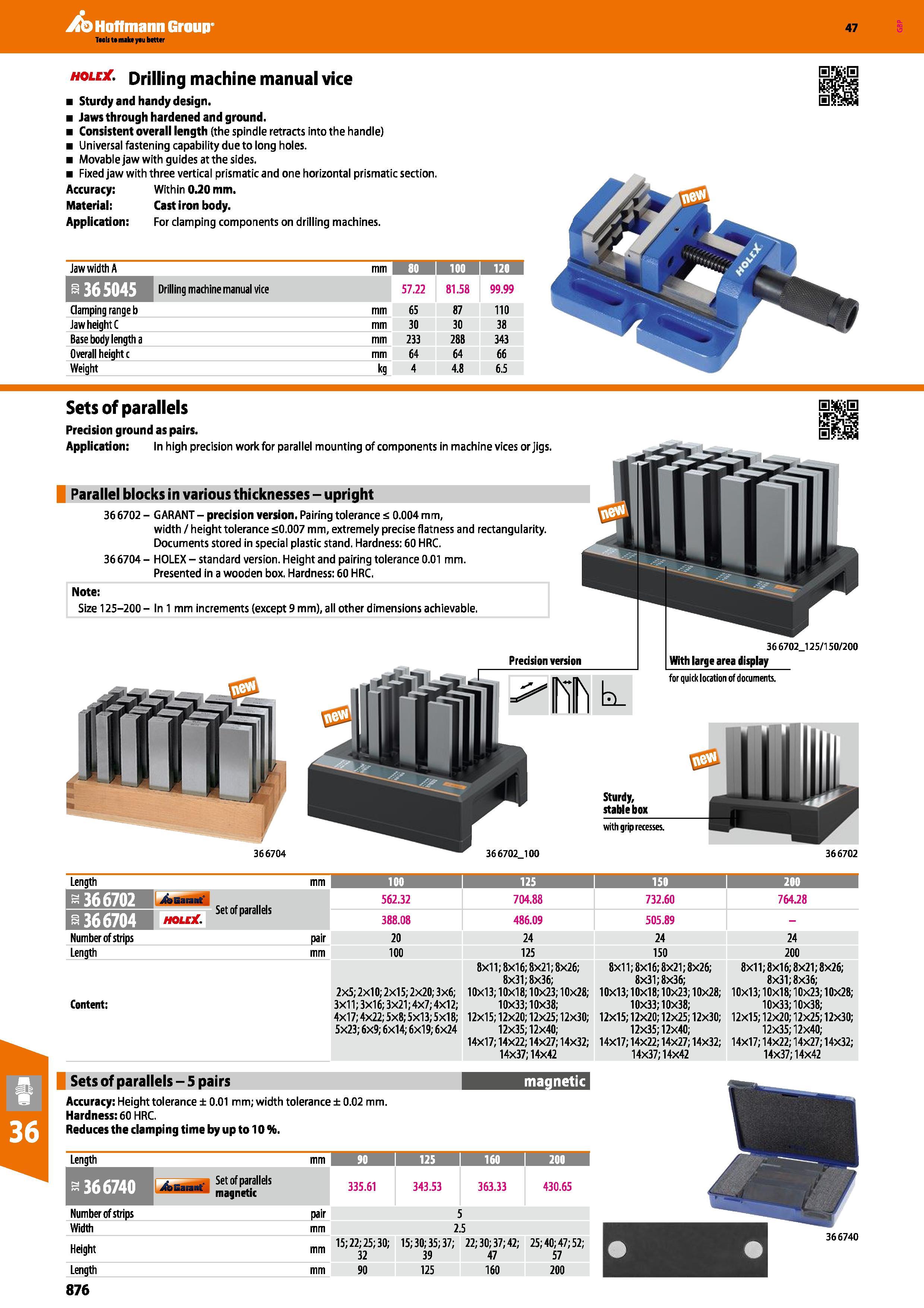

Hoffmann Group Tm It t make yau better hole . Drilling machine manual vice Sturdy and handy design. Jaws through hardened and ground. Consistent overall length (the spindle retracts into the handle) Universal fastening capability due to long holes. Movable jaw with guides at the sides. Fixed jaw with three vertical prismatic and one horizontal prismatic section. Accuracy: Within 0.20 mm. Material: Cast i ron body. Application: For clamping components on drilling machines. Jaw width A mm 191 100 I 120 Drilling machine manual vice 57.22 81.58 99.99 Clamping range b mm 65 87 110 Jaw height C mm 30 30 38 Base body length a mm 233 288 343 Overall height c mm 64 64 66 Weight kg 4 4.8 6.5 Sets of parallels Precision ground as pairs. Application: In high precision work for parallel mounting of components in machine vices or jigs. Parallel blocks in various thicknesses - upright 366702 - GARANT - precision version. Pairing tolerance < 0.004 mm, width / height tolerance <0.007 mm, extremely precise flatness and rectangularity. Documents stored in special plastic stand. Hardness: 60 HRC. 366704- HOLEX-standard version. Height and pairing tolerance 0.01 mm. Presented in a wooden box. Hardness: 60 HRC. Note: Size 125-200 - In 1 mm increments (except 9 mm), all other dimensions achievable. 36 6702_125/150/200 With large area display for quick location of documents. Precision version Sturdy, stable box with grip recesses. 36 6702_100 Length mm 100 125 150 200 a 36 6702 562.32 704.88 732.60 764.28 36 6704 Set of parallels HOLE . 388.08 486.09 505.89 - Numberof strips pair 20 24 24 24 Length mm 100 125 150 200 Content: 2x5; 2x10; 2x15; 2x20; 3x6; 3x11; 3x16; 3x21;4x7; 4x12; 4x17; 4x22; 5x8; 5x13; 5x18; 5x23; 6x9; 6x14; 6x19; 6x24 8x11; 8x16; 8x21; 8x26; 8x31; 8x36; 10x13; 10x18; 10x23; 10x28; 10x33; 10x38; 12x15; 12x20; 12x25; 12x30; 12x35; 12x40; 14x17; 14x22; 14x27; 14x32; 14x37; 14x42 8x11; 8x16; 8x21; 8x26; 8x31; 8x36; 10x13; 10x18; 10x23; 10x28; 10x33:10x38; 12x15; 12x20; 12x25; 12x30; 12x35;12x40; 14x17; 14x22; 14x27; 14x32; 14x37; 14x42 8x11:8x16; 8x21:8x26; 8x31:8x36; 10x13; 10x18; 10x23; 10x28; 10x33; 10x38; 12x15; 12x20; 12x25; 12x30; 12x35; 12x40; 14x17; 14x22; 14x27; 14x32; 14x37; 14x42 Sets of parallels - 5 pairs Accuracy: Height tolerance ± 0.01 mm; width tolerance ± 0.02 mm. Hardness: 60 HRC. Reduces the clamping time by up to 10 %. Length mm 0 1 125 160 200 a 366740 335.61 343.53 363.33 430.65 Number of strips pair 5 Width mm 2.5 Height mm 15; 22; 25; 30; 32 15; 30; 35; 37; 39 22; 30; 37; 42; 47 25; 40; 47; 52; 57 Length mm 90 125 160 200 876 366704 366702 366740
