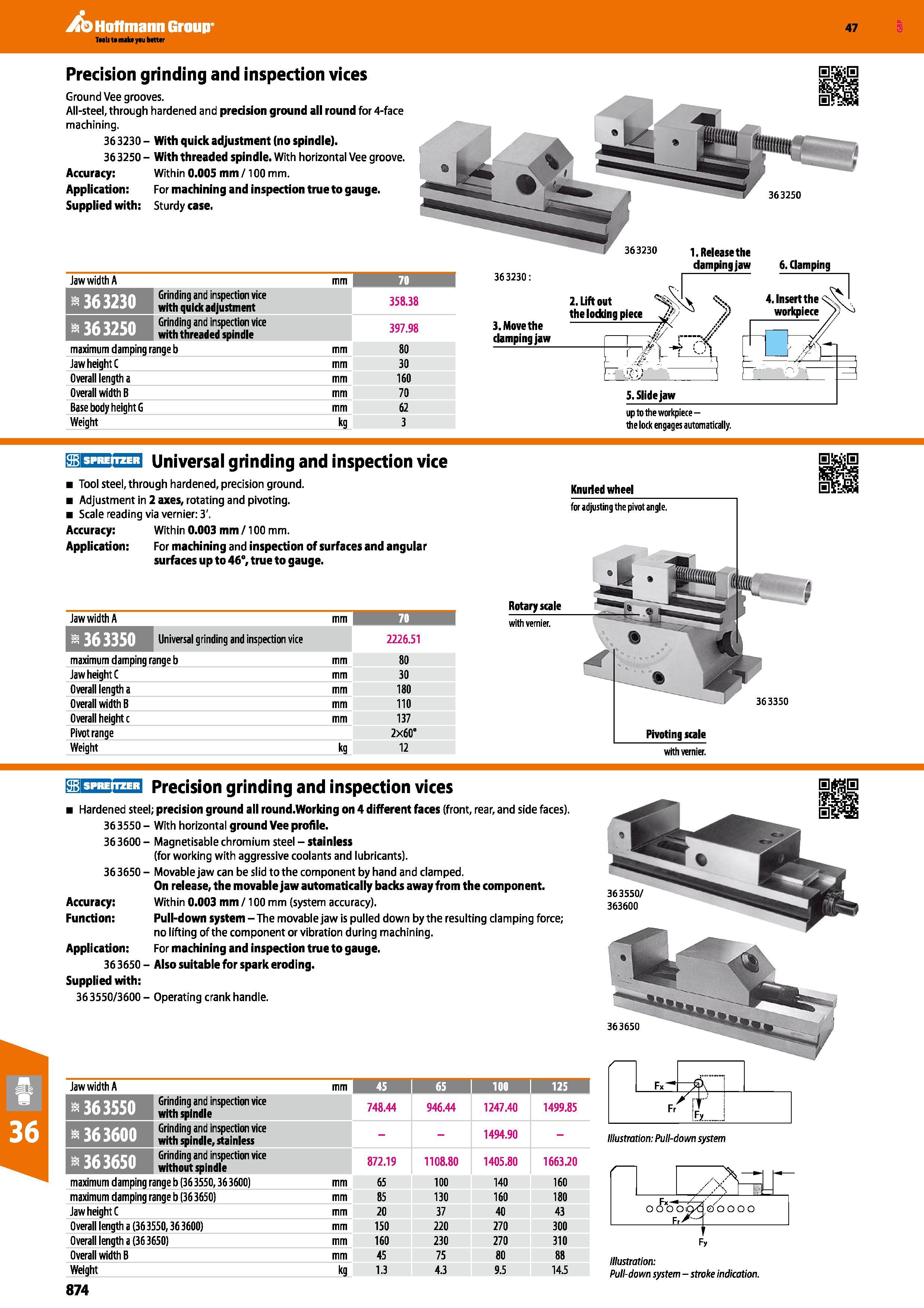

Hoffmann Group Taals to make yau better 47 Precision grinding and inspection vices Ground Vee grooves. All-steel, through hardened and precision ground all round for 4-face machining. 36 3230 - With quick adjustment (no spindle). 36 3250 - With threaded spindle. With horizontal Vee groove. Accuracy: Within 0.005 mm /100 mm. Application: For machining and inspection true to gauge. Supplied with: Sturdy case. Jaw width A mm 70 Grinding and inspection vice with quick adjustment 358.38 Grinding and inspection vice with threaded spindle 397.98 maximum damping range b mm 80 Jaw height C mm 30 Overall length a mm 160 Overall width B mm 70 Base body height G mm 62 Weight kg 3 363230: 3. Move the dampingjaw up to the workpiece -the lock engages automatically. 363250 363230 1. Release the dampingjaw 6. Clamping 2. Lift out the locking piece 5. Slide jaw 4. Insert the workpiece Universal grinding and inspection vice Tool steel, through hardened, precision ground. Adjustment in 2 axes, rotating and pivoting. Scale reading via vernier: 3'. Accuracy: Within 0.003 mm /100 mm. Application: For machining and inspection of surfaces and angular surfaces up to 46°, true to gauge. Knurled wheel for adjusting the pivot angle. Jaw width A mm 70 1 rrB Universal grinding and inspection vice 2226.51 maximum damping range b mm 80 Jaw height C mm 30 Overall length a mm 180 Overall width B mm 110 Overall height c mm 137 Pivot range 2x60" Weight kg 12 Rotary scale with vernier. Pivoting scale with vernier. 363350 Precision grinding and inspection vices Hardened steel; precision ground all round.Working on 4 different faces (front, rear, and side faces). 36 3550 - With horizontal ground Vee profile. 36 3600 - Magnetisable chromium steel - stainless (for working with aggressive coolants and lubricants). 363650 - Movable jaw can be slid to the component by hand and clamped. On release, the movable jaw automatically backs away from the component. Accuracy: Within 0.003 mm /100 mm (system accuracy). Function: Pull-down system -The movable jaw is pulled down by the resulting clamping force; no lifting of the component or vibration during machining. Application: For machining and inspection true to gauge. 36 3650 - Also suitable for spark eroding. Supplied with: 363550/3600 - Operating crank handle. Jaw width A mm 45 1 65 100 125 363550 Grinding and inspection vice with spindle 748.44 946.44 1247.40 1499.85 Grinding and inspection vice with spindle, stainless 1494.90 - 363650 Grinding and inspection vice without spindle 872.19 1108.80 1405.80 1663.20 maximum damping range b (36 3550,36 3600) mm 65 100 140 160 maximum damping range b (36 3650) mm 85 130 160 180 Jaw height C mm 20 37 40 43 Overall length a (36 3550,36 3600) mm 150 220 270 300 Overall length a (36 3650) mm 160 230 270 310 Overall width B mm 45 75 80 88 Weight kg 1.3 4.3 9.5 14.5 Illustration: Pull-down system - stroke indication. Illustration: Pull-down system 363550/ 363600 363650
