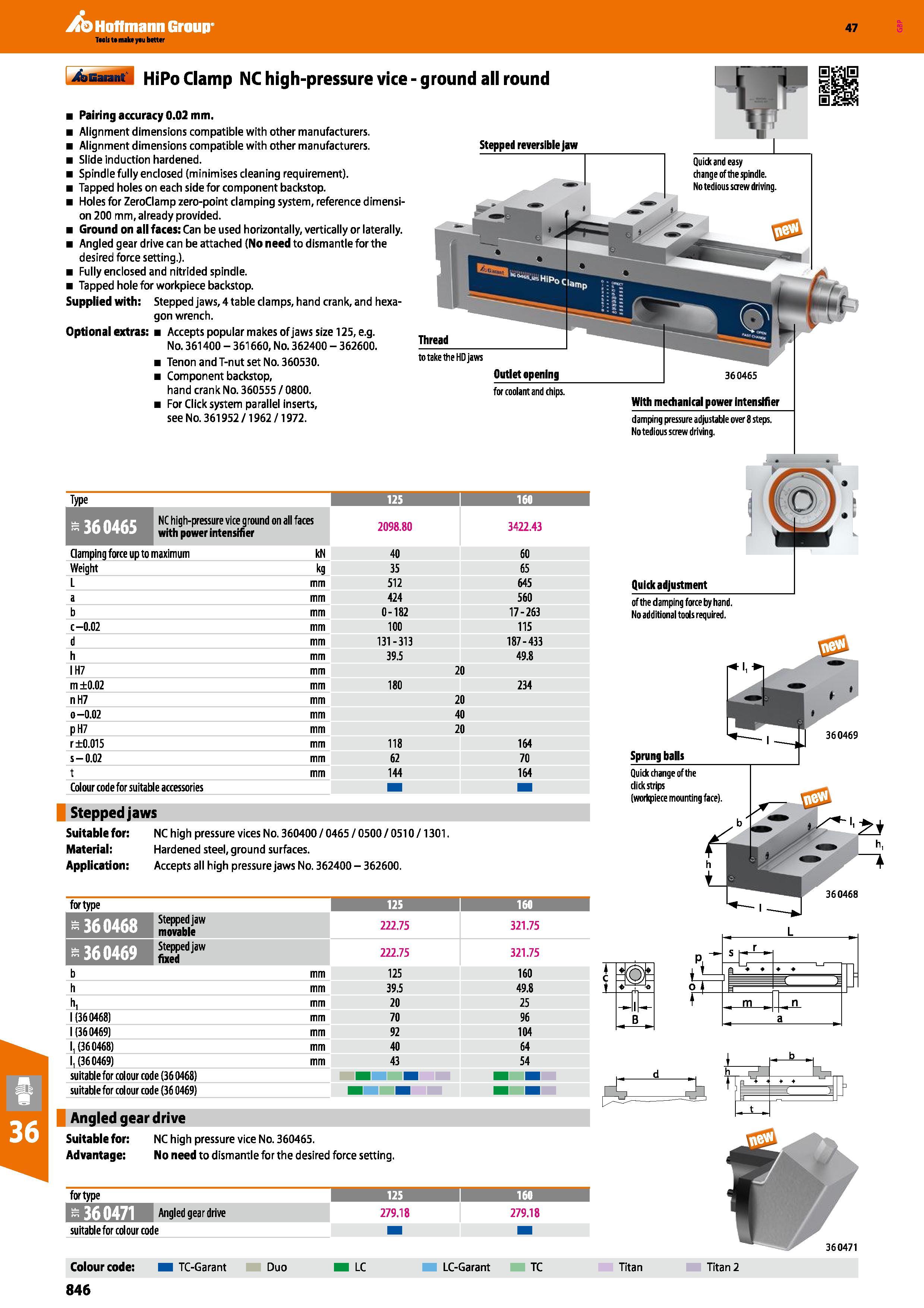

Hoffmann Group 47 4anu M HiPo Clamp NC high-pressure vice Pairing accuracy 0.02 mm. Alignment dimensions compatible with other manufacturers. Alignment dimensions compatible with other manufacturers. Slide induction hardened. Spindle fully enclosed (minimises cleaning requirement). Tapped holes on each side for component backstop. Holes for ZeroClamp zero-point clamping system, reference dimension 200 mm, already provided. Ground on all faces: Can be used horizontally, vertically or laterally. Angled gear drive can be attached (No need to dismantle for the desired force setting.). Fully enclosed and nitrided spindle. Tapped hole for workpiece backstop. Supplied with: Stepped jaws, 4 table clamps, hand crank, and hexagon wrench. Optional extras: Accepts popular makes of jaws size 125, e.g. No. 361400 - 361660, No. 362400 - 362600. Tenon and T-nut set No. 360530. Component backstop, hand crank No. 360555 / 0800. For Click system parallel inserts, see No. 361952/1962/1972. Type 125 1 160 NC high-pressure vice ground on all faces with power intensifier 2098.80 3422.43 Clamping force up to maximum kN 40 60 Weight kg 35 65 L mm 512 645 a mm 424 560 b mm 0-182 17-263 c 0.02 mm 100 115 d mm 131-313 187 - 433 h mm 39.5 49.8 IH7 mm 20 m ±0.02 mm 180 234 nH7 mm 20 O-0.02 mm 40 pH7 mm 20 r ±0.015 mm 118 164 s 0.02 mm 62 70 t mm 144 164 Colour code for suitable accessories Stepped jaws suitable for colour code (36 0469) Angled gear drive Suitable for: NC high pressure vice No. 360465. Advantage: No need to dismantle for the desired force setting. Quick adjustment of the damping force by hand. No additional tools required. Suitable for: NC high pressure vices No. 360400 / 0465 / 0500 / 0510 /1301. Material: Hardened steel, ground surfaces. Application: Accepts all high pressure jaws No. 362400 - 362600. for type 1 125 160 £360468 Stepped jaw movable 222.75 321.75 ft 360469 Stepped jaw fixed 222.75 321.75 b mm 125 160 h mm 39.5 49.8 mm 20 25 1(360468) mm 70 96 1(360469) mm 92 104 1,(360468) mm 40 64 1,(360469) mm 43 54 suitable for colour code (36 0468) 1 1 1 Sprung balls -' Quick change of the click strips (workpiece mounting face). r L. L H I J 360469 h, 360468 for type 125 160 ft 360471 Angled gear drive 279.18 279.18 suitable for colour code Colour code: 846 TC-Garant Duo LC LC-Garant TC Titan Titan 2 -ground all round Stepped reversible jaw Quick and easy change of the spindle. No tedious screw driving. Thread to take the HD jaws Outlet opening for coolant and chips. damping pressure adjustable over 8 steps. No tedious screw driving. 360465 With mechanical power intensifier 360471
