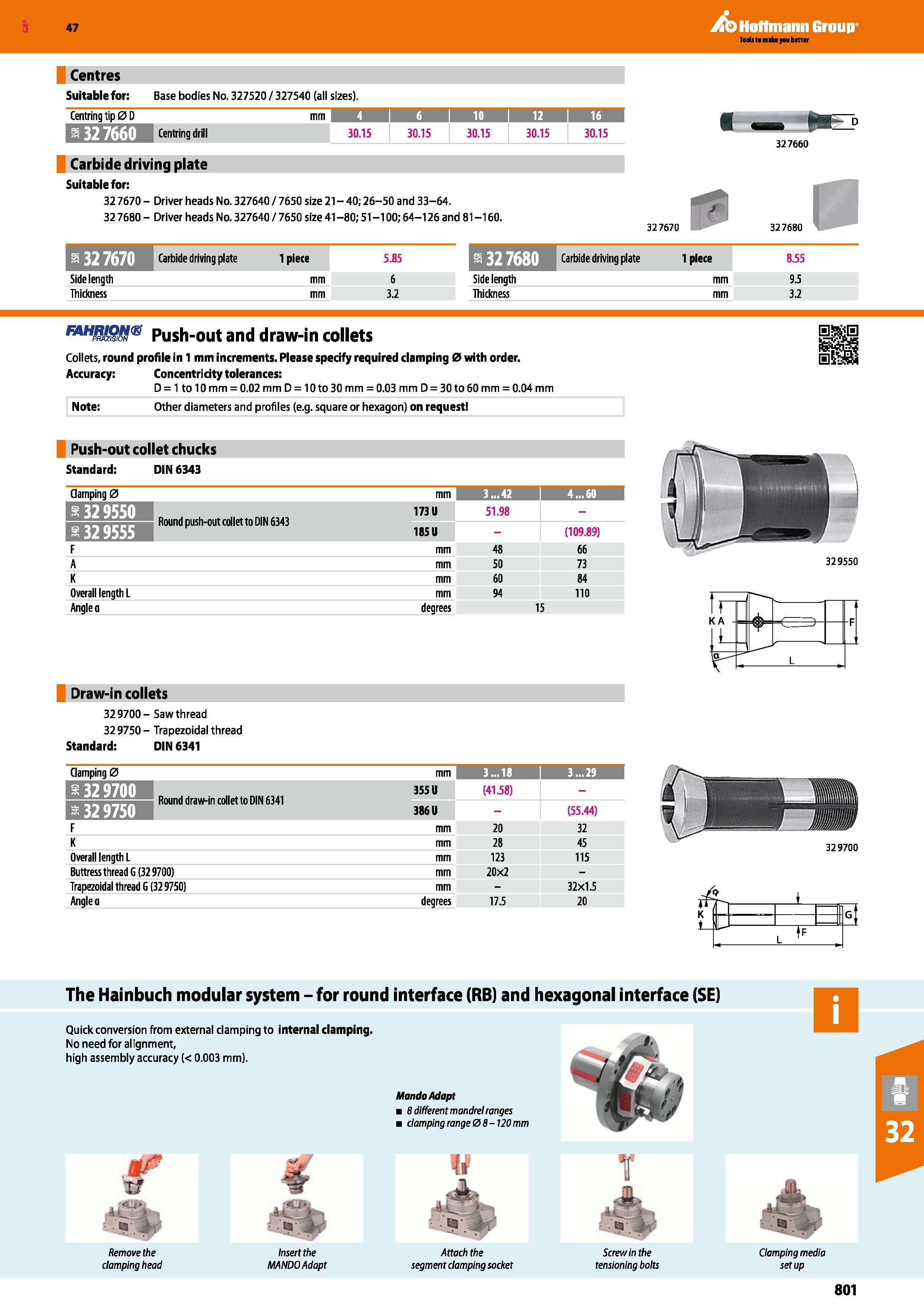

Hoffmann Group 47 Centres Suitable for: Base bodies No. 327520 / 327540 (all sizes). Centring tip 0 D mm 10 I 12 I 16 1 1 s 32 7660 30.15 30.15 30.15 30.15 30.15 Carbide driving plate Suitable for: 327670- Driver heads No. 327640/7650 size 21-40; 26-50 and 33-64. 32 7680 - Driver heads No. 327640 / 7650 size 41 -80; 51 -100; 64-126 and 81-160, 32 7670 32 7660 32 7680 (acV.y/.'WlB Carbide driving plate 1 piece 5.85 Carbide driving plate 1 piece 8.55 Side length mm 6 Side length mm 9.5 Thickness mm 3.2 Thickness mm 3.2 Push-out and draw-in collets Collets, round profile in 1 mm increments. Please specify required clamping 0 with order. Accuracy: Concentricity tolerances: D = 1 to 10 mm = 0.02 mm D = 10 to 30 mm = 0.03 mm D = 30 to 60 mm = 0.04 mm Note: Other diameters and profiles (e.g. square or hexagon) on request Push-out collet chucks Standard: DIN 6343 Clamping 0 mm 3...42 4 ...60 a 32 9550 fHHMIMRRH 173 U 51.98 - g 32 9555 185 U - (109.89) F mm 48 66 A mm 50 73 K mm 60 84 Overall length L mm 94 110 Angle a degrees 15 Draw-in collets 329700- Saw thread 329750- Trapezoidal thread Standard: DIN 6341 Clamping 0 mm 3...18 3...29 32 9700 DaiihiI rAlInf tn HIM 355 U (41.58) - a 32 9750 nouna araw-in coiiei 10 uin tm i 386 U - (55.44) F mm 20 32 K mm 28 45 Overall length L mm 123 115 Buttress thread G (32 9700) mm 20x2 - Trapezoidal thread G (329750) mm - 32x1.5 Angle a degrees 17.5 20 LP 329550 329700 The Hainbuch modular system - for round interface (RB) and hexagonal interface (SE) Quick conversion from external clamping to internal clamping. No need for alignment, high assembly accuracy (< 0.003 mm). Mando Adapt m 8 different mandrel ranges m clamping range 08-120mm Remove the clamping head Clfe Insert the MANDOAdapt Attach the segment clamping socket Screw in the tensioning bolts Clamping media setup 801
