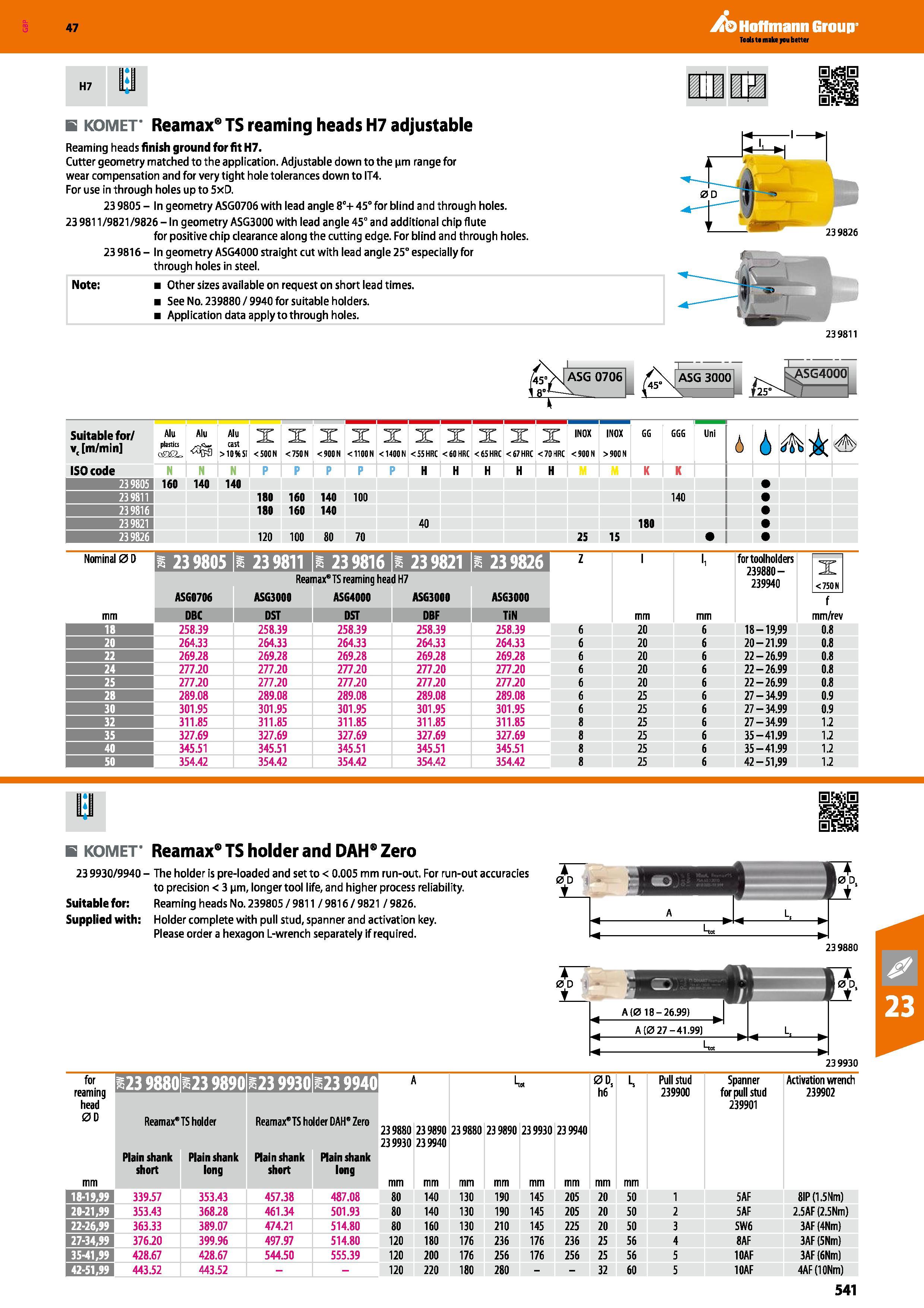

Hoffmann Group 47 H7 E KOMET Reamax TS reaming heads H7 adjustable Reaming heads finish ground for fit H7. Cutter geometry matched to the application. Adjustable down to the jm range for wear compensation and for very tight hole tolerances down to IT4. For use in through holes up to 5xD. 23 9805 - In geometry ASG0706 with lead angle 8°+ 45° for blind and through holes. 23 9811/9821/9826 - In geometry ASG3000 with lead angle 45° and additional chip flute for positive chip clearance along the cutting edge. For blind and through holes. 23 9816 - In geometry ASG4000 straight cut with lead angle 25° especially for through holes in steel. Note: Other sizes available on request on short lead times. See No. 239880 / 9940 for suitable holders. Application data apply to through holes. 23 9811 23 9826 Suitable for/ v( m/min Alu plastics qSD£U Alu cast > 10% Si X < 500 N X < 750 N X < 900 N X < 1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC IN0X <500 N IN0X >900N GG GGG Uni 6 i ISO code nri 160 Mm N P H K K 239805 140 140 239811 180 160 140 100 140 239816 180 160 140 239821 40 180 239826 120 100 80 70 25 15 Nominal 0 D 8 239816 8 239821 8 239826 2 I I, fortoolholders 239880 -239940 X <750N ASG0706 Reamax'TS reaming head H7 ASG3000 ASG4000 ASG3000 ASG3000 f mm DBC DST DST DBF TiN mm mm/rev 18 258.39 258.39 258.39 258.39 258.39 6 20 6 18-19,99 0.8 20 264.33 264.33 264.33 264.33 264.33 6 20 6 20-21.99 0.8 22 269.28 269.28 269.28 269.28 269.28 6 20 6 22-26.99 0.8 24 277.20 277.20 277.20 277.20 277.20 6 20 6 22-26.99 0.8 25 277.20 277.20 277.20 277.20 277.20 6 20 6 22-26.99 0.8 28 289.08 289.08 289.08 289.08 289.08 6 25 6 27 - 34.99 0.9 30 301.95 301.95 301.95 301.95 301.95 6 25 6 27-34.99 0.9 32 311.85 311.85 311.85 311.85 311.85 8 25 6 27-34.99 1.2 35 327.69 327.69 327.69 327.69 327.69 8 25 6 35-41.99 1.2 40 345.51 345.51 345.51 345.51 345.51 8 25 6 35-41.99 1.2 50 354.42 354.42 354.42 354.42 354.42 8 25 6 42-51,99 1.2 B KOMET Reamax8 TS holder and DAH Zero 23 9930/9940 - The holder is pre-loaded and set to < 0.005 mm run-out. For run-out accuracies to precision < 3 pm, longer tool life, and higher process reliability. Suitable for: Reaming heads No. 239805 / 9811 / 9816 / 9821 / 9826. Supplied with: Holder complete with pull stud, spanner and activation key. Please order a hexagon L-wrench separately if required. ( 0 D A (0 18 - 26.99) L- A (0 27 - 41.99) 239930 for reaming head 0D 23 9880823 9890 823 9930 823 9940 L 0D, h6 L, Pull stud 239900 Spanner Activation wrench for pull stud 239902 239901 Reamax TS holder Reamax'TS holder DAH' Zero 239880 239890 239880 239890 239930 239940 239930 239940 Plain shank Plain shank Plain shank Plain shank mm short long short long mm 18-19,99 339.57 353.43 457.38 487.08 80 140 130 190 145 205 20 50 1 5AF SIP (1.5Nm) 20-21,99 353.43 368.28 461.34 501.93 80 140 130 190 145 205 20 50 2 5AF 2.5AF (2.5Nm) 22-26,99 363.33 389.07 474.21 514.80 80 160 130 210 145 225 20 50 3 5W6 3AF (4Nm) 27-34,99 376.20 399.96 497.97 514.80 120 180 176 236 176 236 25 56 4 8AF 3AF (5Nm) 35-41,99 428.67 428.67 544.50 555.39 120 200 176 256 176 256 25 56 5 10AF 3AF (6Nm) 42-51,99 443.52 443.52 120 220 180 280 32 60 5 10AF 4AF (lONm) 541
